NCP31L-DHPNKA (2003)

Toyota Scion Xb

Production Apr 2003 - Dec 2006
Engine 1NZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

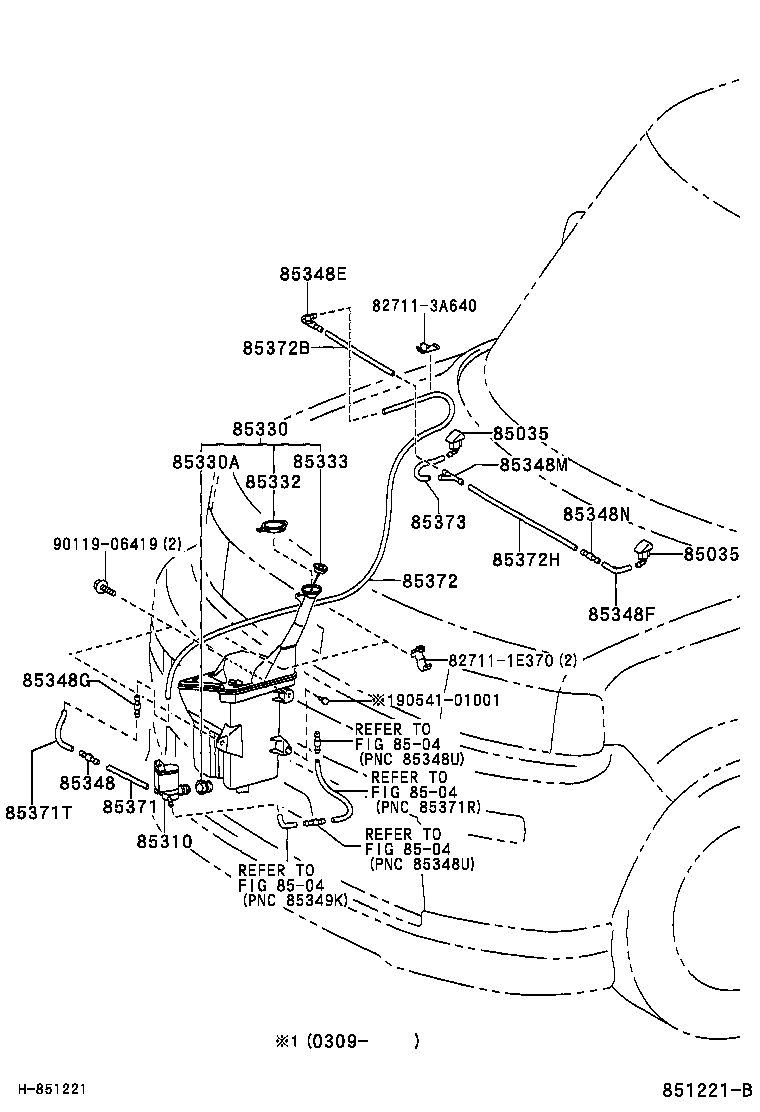

Click highlighted areas on diagram

diagram 827111E370 827113A640 85035 85035 8504 8504 8504 8504 85310 85330 85330A 85332 85333 85348 85348E 85348F 85348G 85348M 85348N 85371 85371T 85372 85372B 85372H 85373 9011906419 9054101001
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-52230

NCP31

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-52230

NCP31

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-20470

NCP31

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-52090

NCP31

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

NCP31

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-52130

NCP31

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-52010

NCP31

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85334-22470

NCP31

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85378-12480

NCP31

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85336-12230

NCP31

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

NCP31

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85348-12250

NCP31

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85349-89122

NCP31

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33075

NCP31

*H,L=140

 1
85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)
90099-33080

NCP31

*H,L=130

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-62025

NCP31

*H,L=1380

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

NCP31

*H,L=270

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

NCP31

*H,L=600

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

NCP31

*H,L=170

 1
Common parts
82711-1E370
82711-3A640
90119-06419
90541-01001
Linked diagrams
8504
