NCP31L-DHPNKA (2003)
Toyota Scion Xb
Production
Apr 2003
-
Dec 2006
Engine
1NZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0304- )

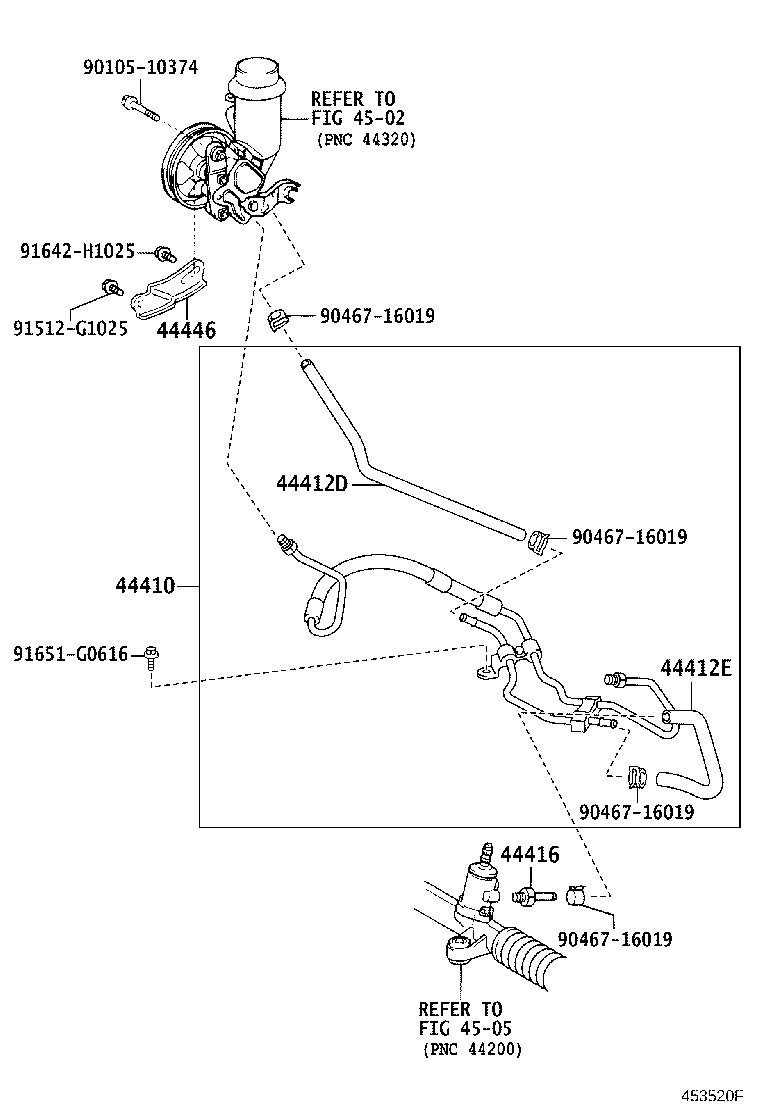

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-52041 |
NCP31 |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-52020 |
NCP31 |
1 | ||
| 44412E - HOSE, RETURN, NO.2 | ||||
| 44412-52030 |
NCP31 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-52010 |
NCP31 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-52010 |
NCP31 |
1 | ||
| Common parts | ||||
| 90105-10374 | ||||
| 90467-16019 | ||||
| 91512-G1025 | ||||
| 91642-H1025 | ||||
| 91651-G0616 | ||||
| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
