NCP31L-DHMNKA (2003)

Toyota Scion Xb

Production Apr 2003 - Dec 2006
Engine 1NZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0304- )

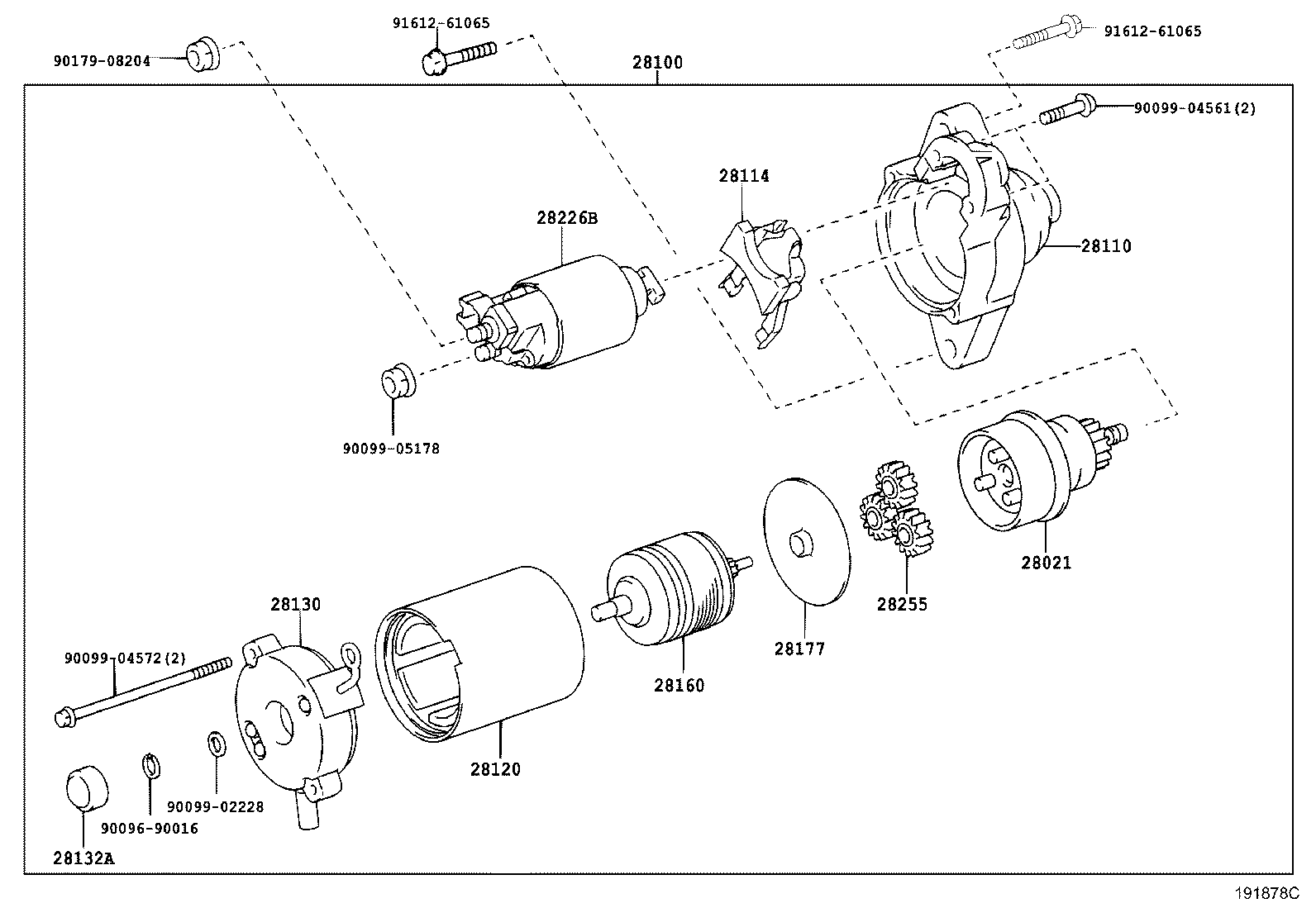

Click highlighted areas on diagram

12V 1.6KW

diagram 28021 28100 28110 28114 28120 28130 28132A 28160 28177 28226B 28255 9009690016 9009902228 9009904561 9009904572 9009905178 9017908204 9161261065 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21060

1NZFE..NCP31

 1
28100 - STARTER ASSY
28100-21062

1NZFE..NCP31

12V 1.6KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-21061

1NZFE..NCP31

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-21060

1NZFE..NCP31

 1
28120 - YOKE ASSY, STARTER
28120-28040

1NZFE..NCP31

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21061

1NZFE..NCP31

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040

1NZFE..NCP31

 1
28160 - ARMATURE ASSY, STARTER
28160-21060

1NZFE..NCP31

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

1NZFE..NCP31

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-22061

1NZFE..NCP31

 1
28255 - GEAR, PLANET
28255-28040

1NZFE..NCP31

 3
Common parts
90096-90016
90099-02228
90099-04561
90099-04572
90099-05178
90179-08204
91612-61065
