AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

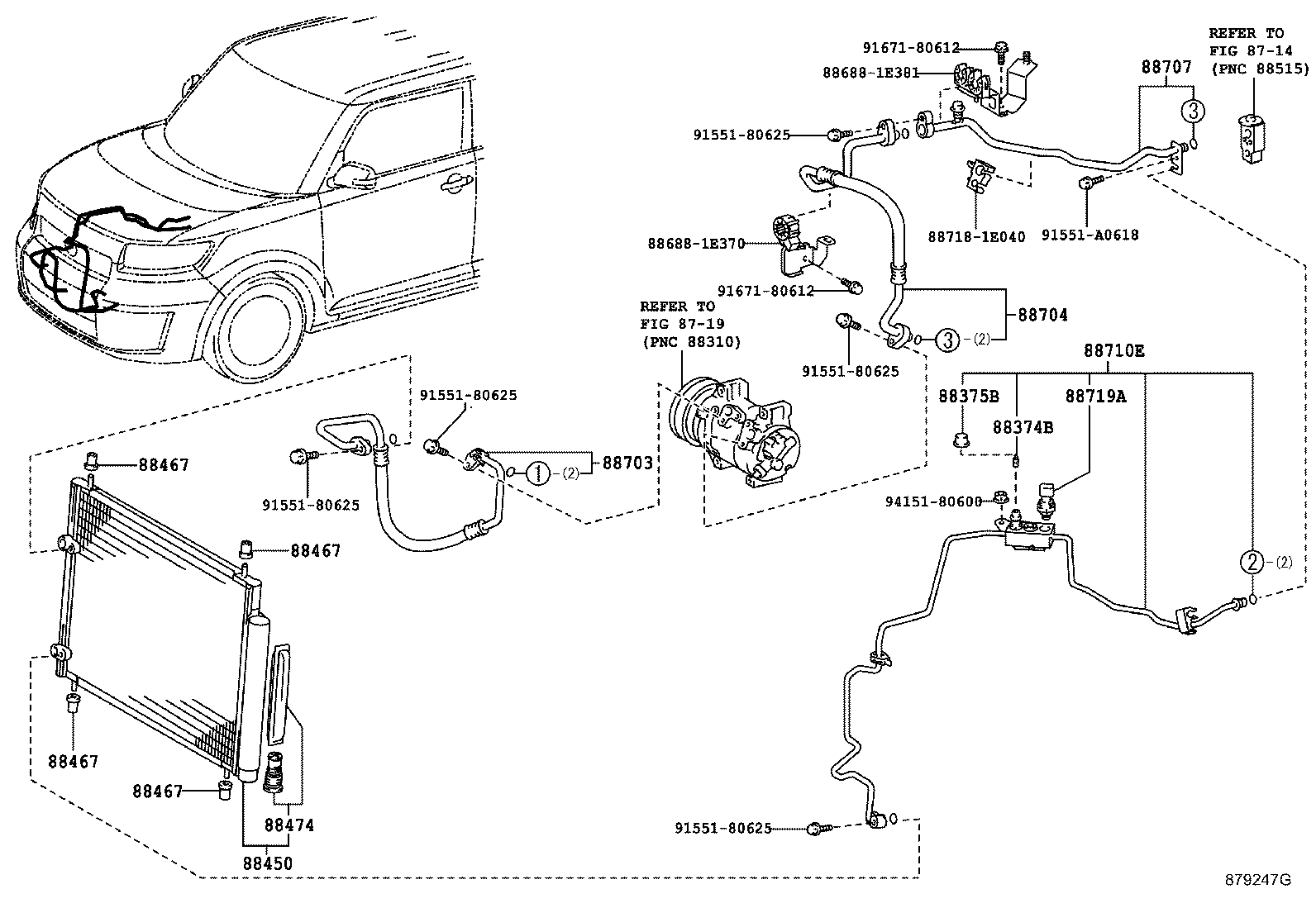

ILLUST NO. 2 OF 2(0703- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 2(0703- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-12300 |
AZE151 |
1 | ||
| 88450-12280 |
AZE151 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
AZE151 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
AZE151 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
AZE151 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
AZE151 |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
AZE151 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-1A010 |
AZE151 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-1A250 |
AZE151 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-12250 |
AZE151 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-1A010 |
AZE151 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
AZE151 |
1 | ||
| Common parts | ||||
| 88688-1E370 | ||||
| 88688-1E381 | ||||
| 88718-1E040 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
