AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

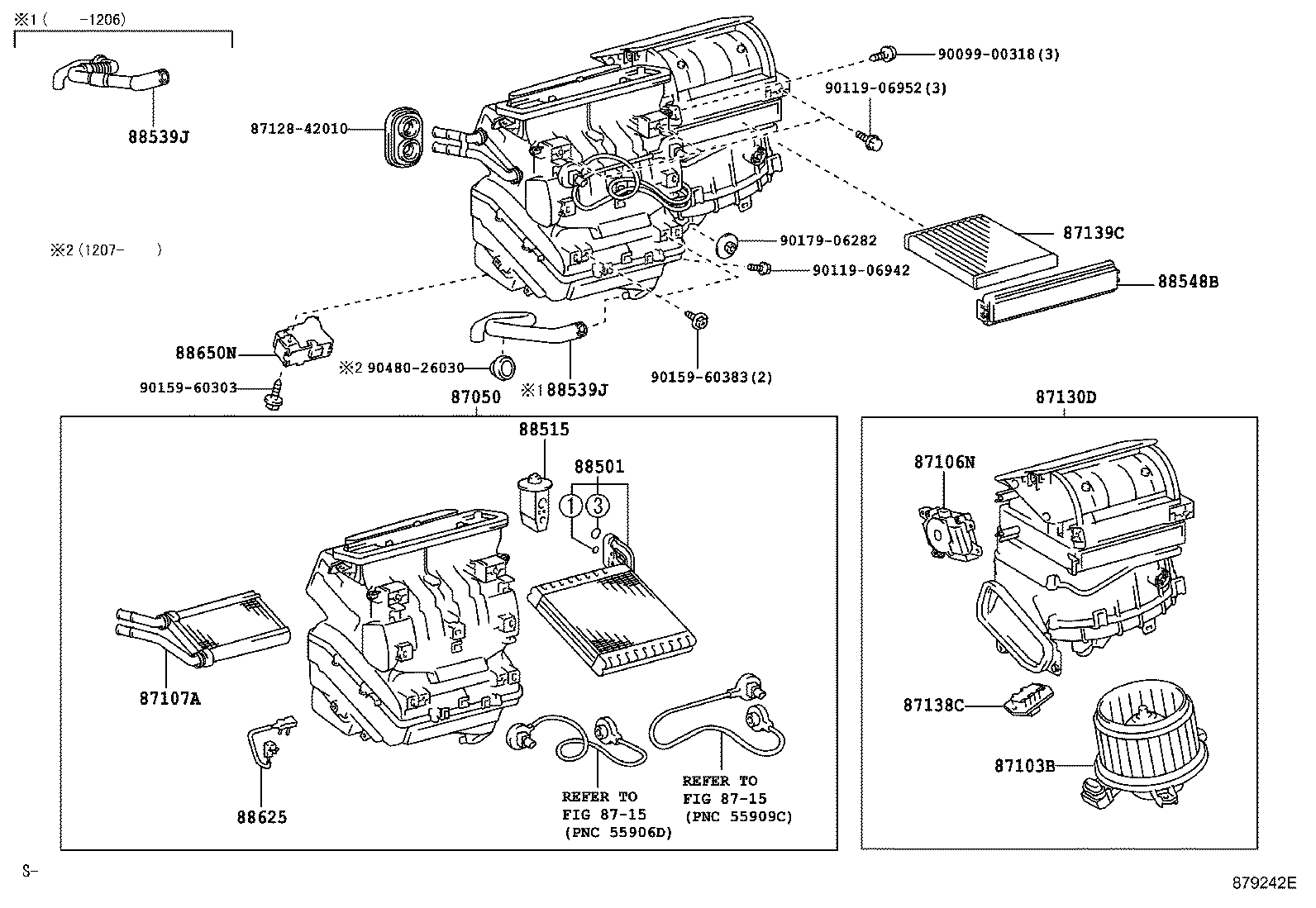

ILLUST NO. 1 OF 2(0703- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-12390 |
AZE151 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-42090 |
AZE151 |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-42130 |
AZE151 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-42170 |
AZE151 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-12551 |
AZE151 |
1 | ||
| 87130-12550 |
AZE151 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-26160 |
AZE151 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52020 |
AZE151 MICRO DUST FILTER |
1 | ||
| 87139-50060 |
AZE151 DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-26211 |
AZE151 |
1 | ||
| 88501-26210 |
AZE151 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-42090 |
AZE151 |
1 | ||
| 88515-26070 |
AZE151 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12200 |
AZE151 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-12200 |
AZE151 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-42020 |
AZE151 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-26090 |
AZE151 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-12A80 |
AZE151 |
1 | ||
| Common parts | ||||
| 87128-42010 | ||||
| 90099-00318 | ||||
| 90119-06942 | ||||
| 90119-06952 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
| 90480-26030 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 2(0703- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
