AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0703- )USA

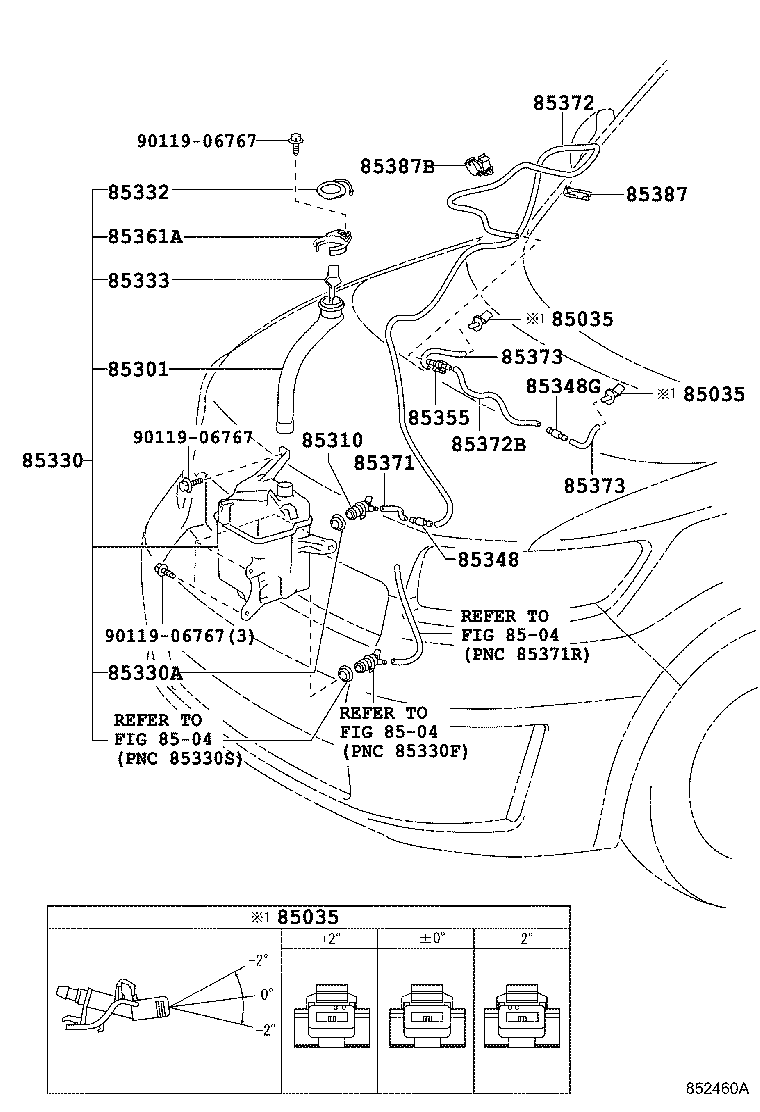

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12300 |
AZE151 ANGLE 0 |
2 | ||
| 85381-12310 |
AZE151 ANGLE -2 |
2 | ||
| 85381-12320 |
AZE151 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12300 |
AZE151 ANGLE 0 |
2 | ||
| 85381-12310 |
AZE151 ANGLE -2 |
2 | ||
| 85381-12320 |
AZE151 ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-12300 |
AZE151 ANGLE 0 |
2 | ||
| 85381-12310 |
AZE151 ANGLE -2 |
2 | ||
| 85381-12320 |
AZE151 ANGLE +2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85319-12630 |
AZE151 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-60190 |
AZE151 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-12630 |
AZE151 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85336-60300 |
AZE151 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-48060 |
AZE151 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-21020 |
AZE151 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
AZE151 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
AZE151 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
AZE151 |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-48060 |
AZE151 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
AZE151 *H,L=170 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
AZE151 *H,L=2000 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AZE151 *H,L=520 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AZE151 *H,L=135 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AZE151 *H,L=135 |
2 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-12840 |
AZE151 |
1 | ||
| 85387B - CLAMP, WASHER, NO.3 | ||||
| 82711-1E350 |
AZE151 |
1 | ||
| 82711-3F230 |
AZE151 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8504 | ||||
