AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )

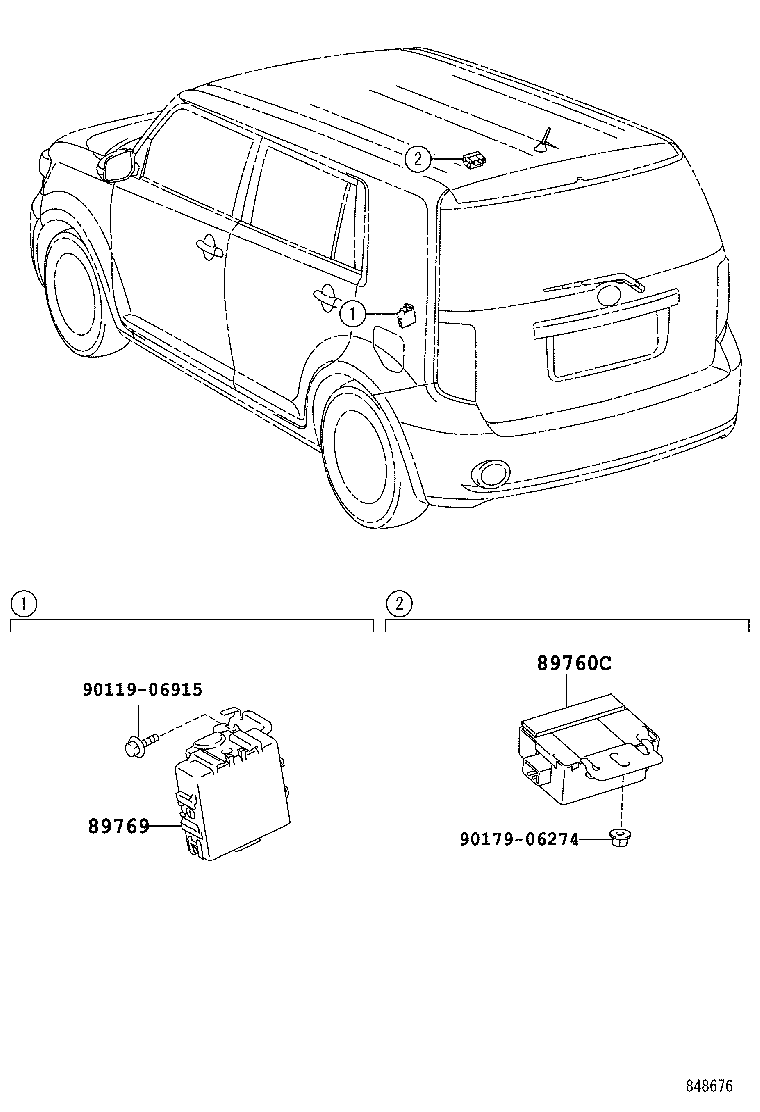

Click highlighted areas on diagram

diagram 89760C 89769 9011906915 9017906274
Part # Description Qty Price
89760C - RECEIVER ASSY, TIRE PRESSURE MONITOR
89760-12030

AZE151

 1
89769 - COMPUTER, TIRE PRESSURE MONITOR
89769-12030

AZE151

 1
Common parts
90119-06915
90179-06274
