AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )

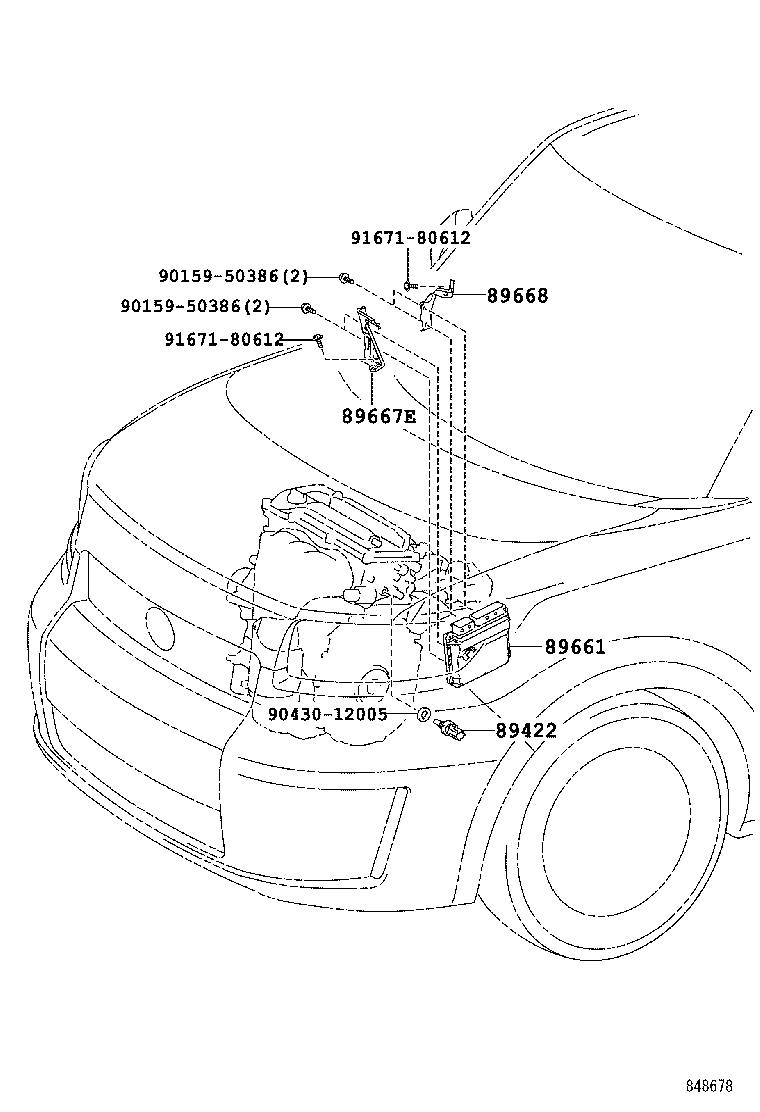

Click highlighted areas on diagram

diagram 89422 89661 89667E 89668 9015950386 9015950386 9043012005 9167180612 9167180612
Part # Description Qty Price
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

AZE151

 1
89422-33030

AZE151

MARK 89422-33030

 1
89422-0D010

AZE151

MARK 89422-0D010

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12J60

AZE151..ATM

 1
89661-12F20

AZE151..ATM

 1
89661-12D50

AZE151..ATM

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-12210

AZE151

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-12190

AZE151

 1
Common parts
90159-50386
90430-12005
91671-80612
