AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 9(0703- )

Click highlighted areas on diagram

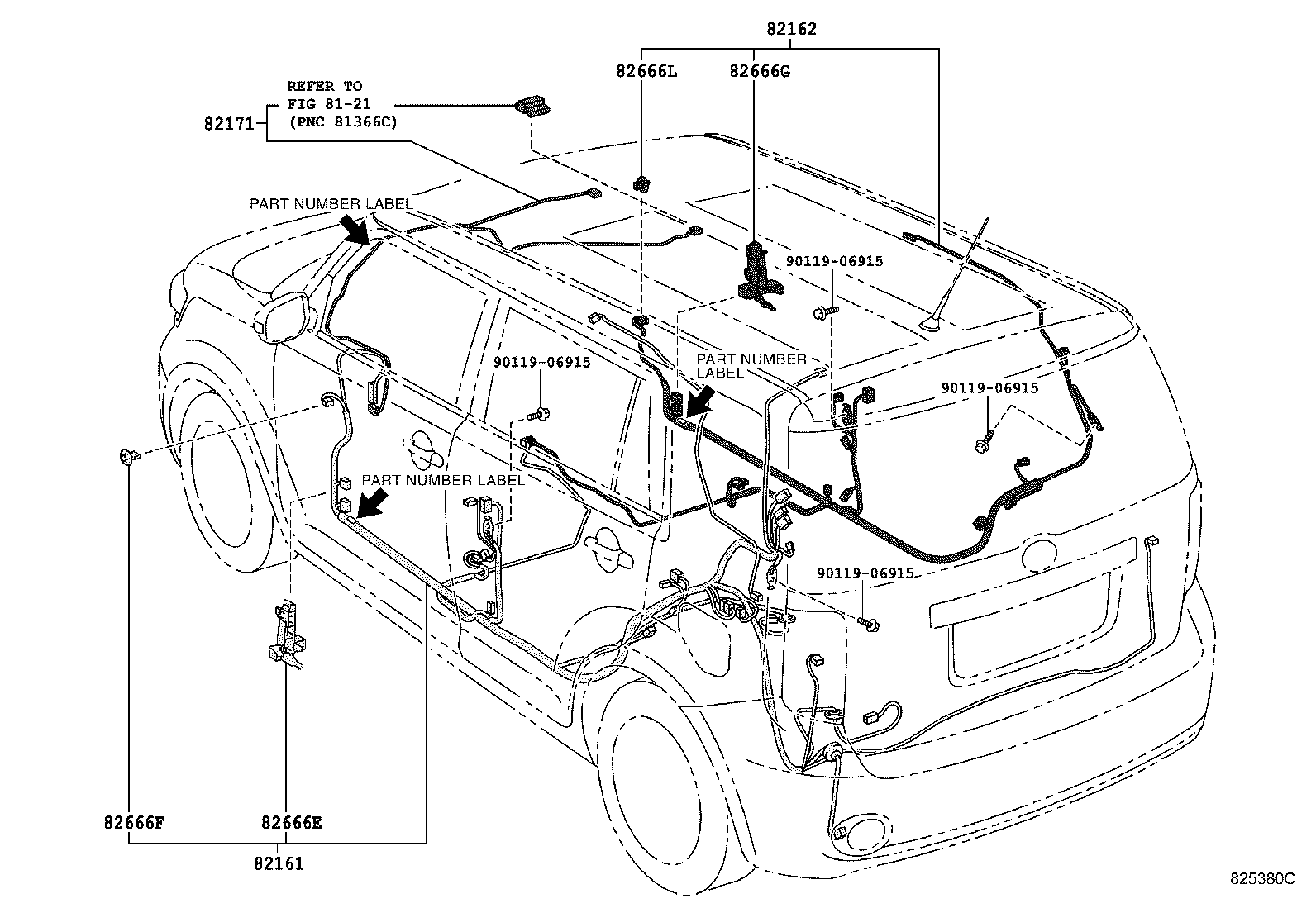

ROOF & FLOOR

diagram 8121 82161 82162 82171 82666E 82666F 82666G 82666L 9011906915 9011906915 9011906915 9011906915
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-12L70

AZE151

 1
82162 - WIRE, FLOOR, NO.2
82162-12G40

AZE151

 1
82162-12G40

AZE151

PART NUMBER LABEL=82162-12G40

 1
82171 - WIRE, ROOF, NO.1
82171-12K00

AZE151

 1
82171-12K00

AZE151

PART NUMBER LABEL=82171-12K00

 1
82171-12K30

AZE151..USA

SPECIAL EDITION

 1
82171-12K30

AZE151..USA

SPECIAL EDITION

 1
82666E - HOLDER, CONNECTOR NO.6
82666-12400

AZE151

 1
82666F - HOLDER, CONNECTOR NO.7
82666-20280

AZE151

 1
82666G - HOLDER, CONNECTOR NO.8
82666-12370

AZE151

 1
82666L - HOLDER, CONNECTOR NO.9
82666-20280

AZE151

 1
Common parts
90119-06915
Linked diagrams
8121

ILLUST NO. 4 OF 9(0703- )

Click highlighted areas on diagram

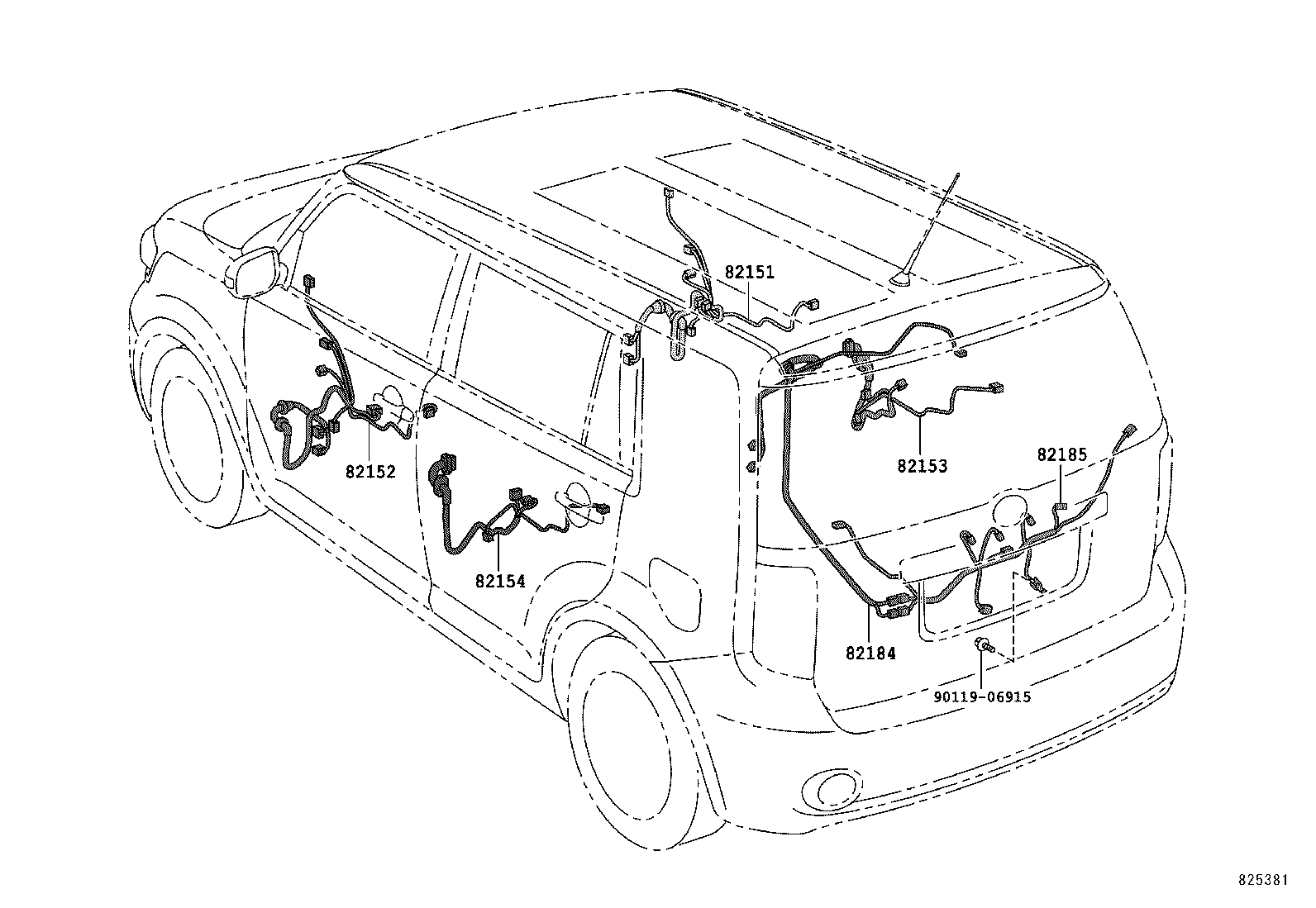

DOOR

diagram 82151 82152 82153 82154 82184 82185 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-12L30

AZE151

 1
82152 - WIRE, FRONT DOOR, LH
82152-12L20

AZE151

 1
82153 - WIRE, REAR DOOR, NO.1
82153-12670

AZE151

 1
82154 - WIRE, REAR DOOR, NO.2
82154-12620

AZE151

 1
82184 - WIRE, BACK DOOR, NO.1
82184-12680

AZE151

 1
82185 - WIRE, BACK DOOR, NO.2
82185-12750

AZE151

 1
Common parts
90119-06915

ILLUST NO. 6 OF 9(0703- )

Click highlighted areas on diagram

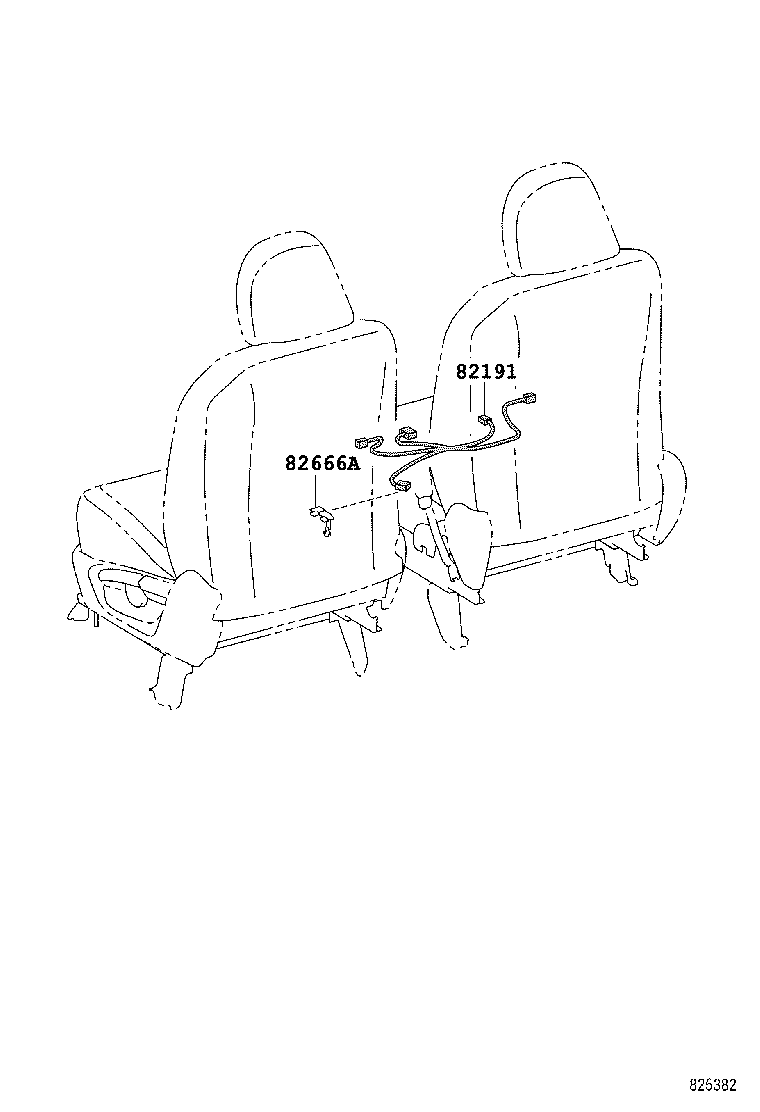

SEAT

diagram 82191 82666A
Part # Description Qty Price
82191 - WIRE, FRONT SEAT, RH
82191-12070

AZE151

 1
82666A - HOLDER, CONNECTOR NO.2
82666-33400

AZE151

 1

ILLUST NO. 7 OF 9(0703- )

Click highlighted areas on diagram

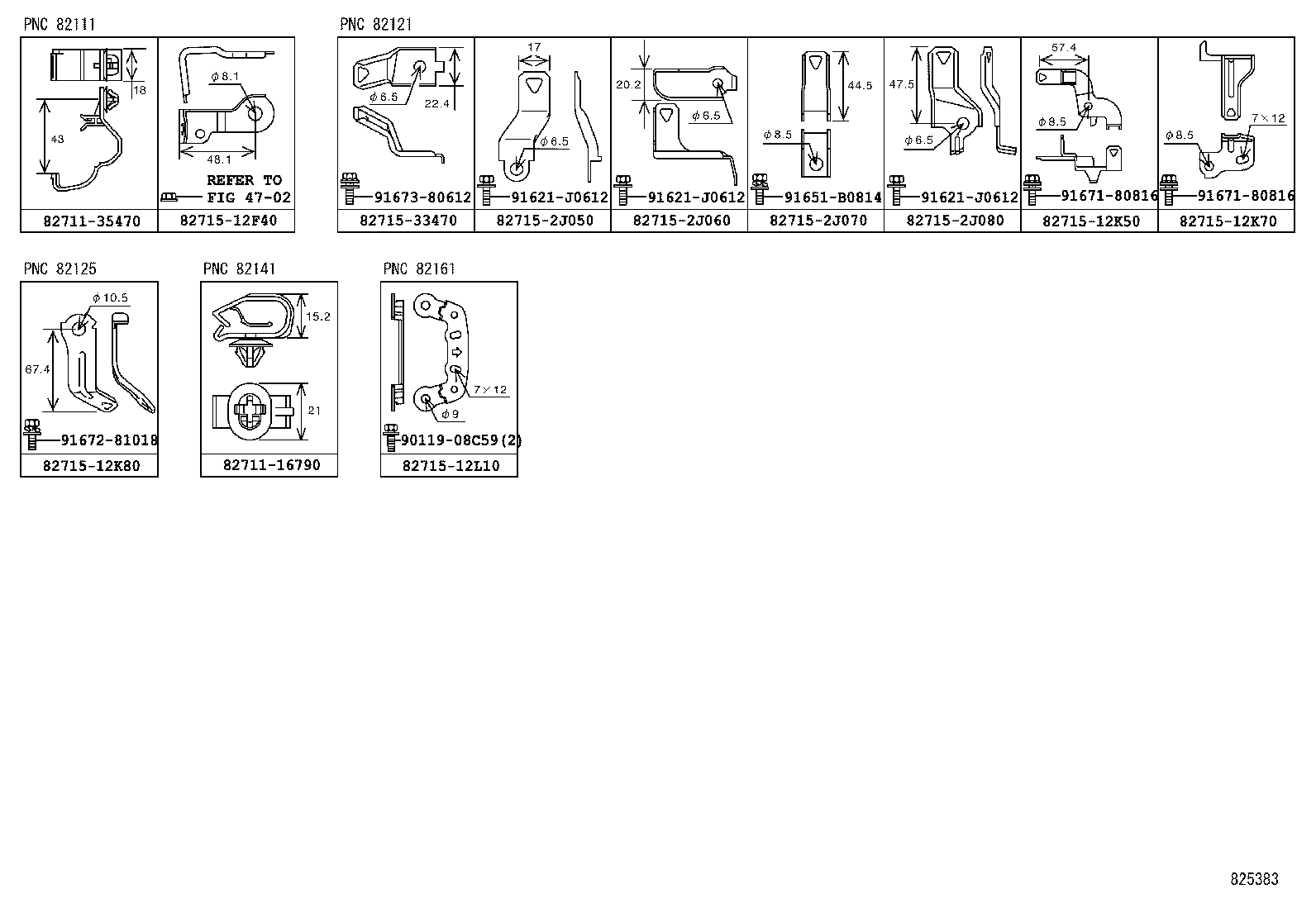

CLAMP & BRACKET

diagram 4702 8271116790 8271135470 8271512F40 8271512K50 8271512K70 8271512K80 8271512L10 827152J050 827152J060 827152J070 827152J080 8271533470 9011908C59 91621J0612 91621J0612 91621J0612 91651B0814 9167180816 9167180816 9167281018 9167380612
Part # Description Qty Price
Common parts
82711-16790
82711-35470
82715-12F40
82715-12K50
82715-12K70
82715-12K80
82715-12L10
82715-2J050
82715-2J060
82715-2J070
82715-2J080
82715-33470
90119-08C59
91621-J0612
91651-B0814
91671-80816
91672-81018
91673-80612
Linked diagrams
4702

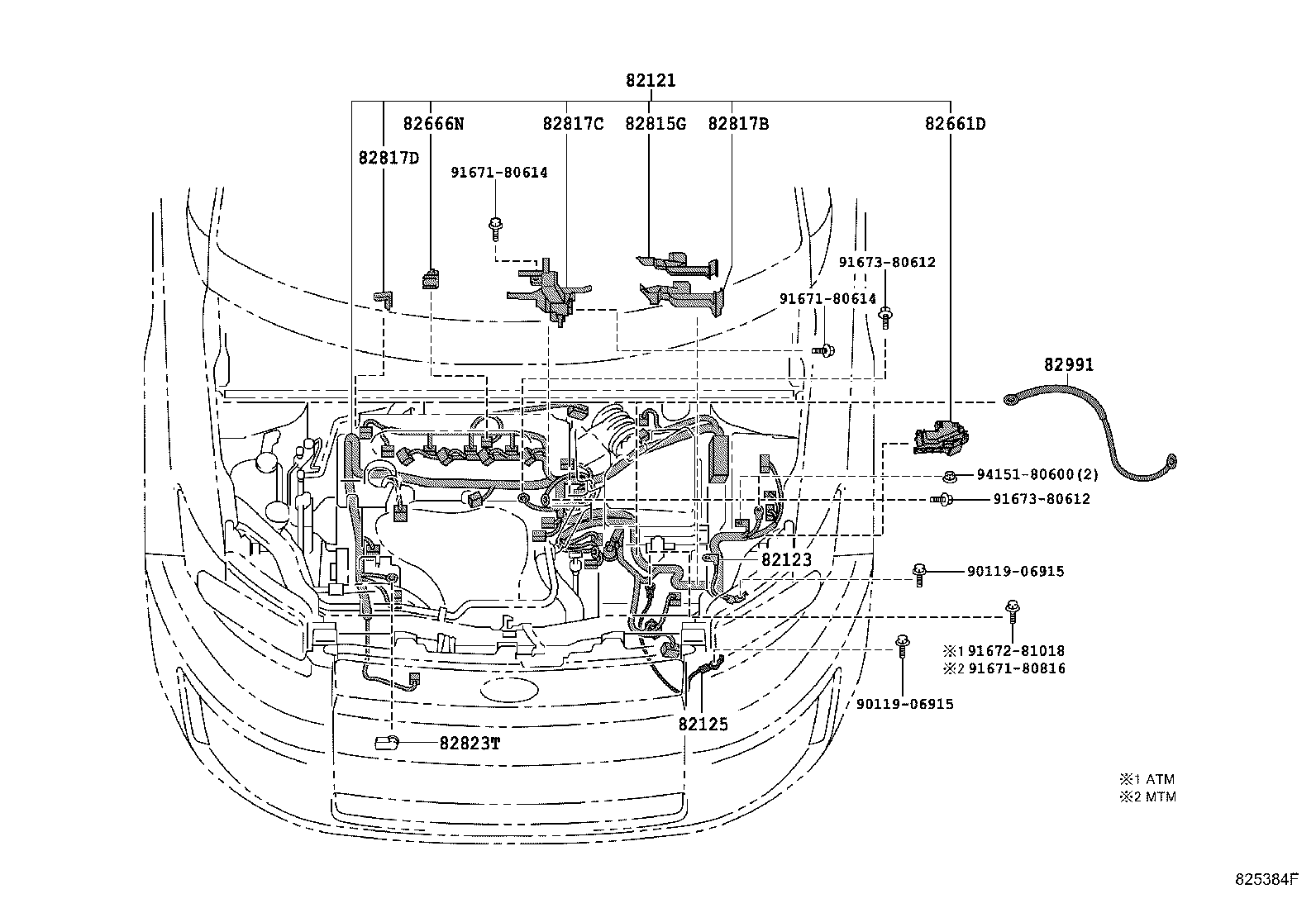

ILLUST NO. 2 OF 9(0703- )

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82125 82661D 82666N 82815G 82817B 82817C 82817D 82823T 82991 9011906915 9011906915 9167180614 9167180614 9167180816 9167281018 9167380612 9167380612 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-12J10

AZE151..ATM

 1
82123 - WIRE, ENGINE, NO.3
82123-12460

AZE151

 1
82125 - WIRE, TRANSMISSION
82125-12540

AZE151..ATM

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-12280

AZE151

 1
82666N - HOLDER, CONNECTOR NO.10
82666-42250

AZE151..ATM

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-12240

AZE151

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-12D40

AZE151

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-42480

AZE151

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-12860

AZE151

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

AZE151

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12130

AZE151

 1
Common parts
90119-06915
91671-80614
91671-80816
91672-81018
91673-80612
94151-80600

ILLUST NO. 1 OF 9(0703- )

Click highlighted areas on diagram

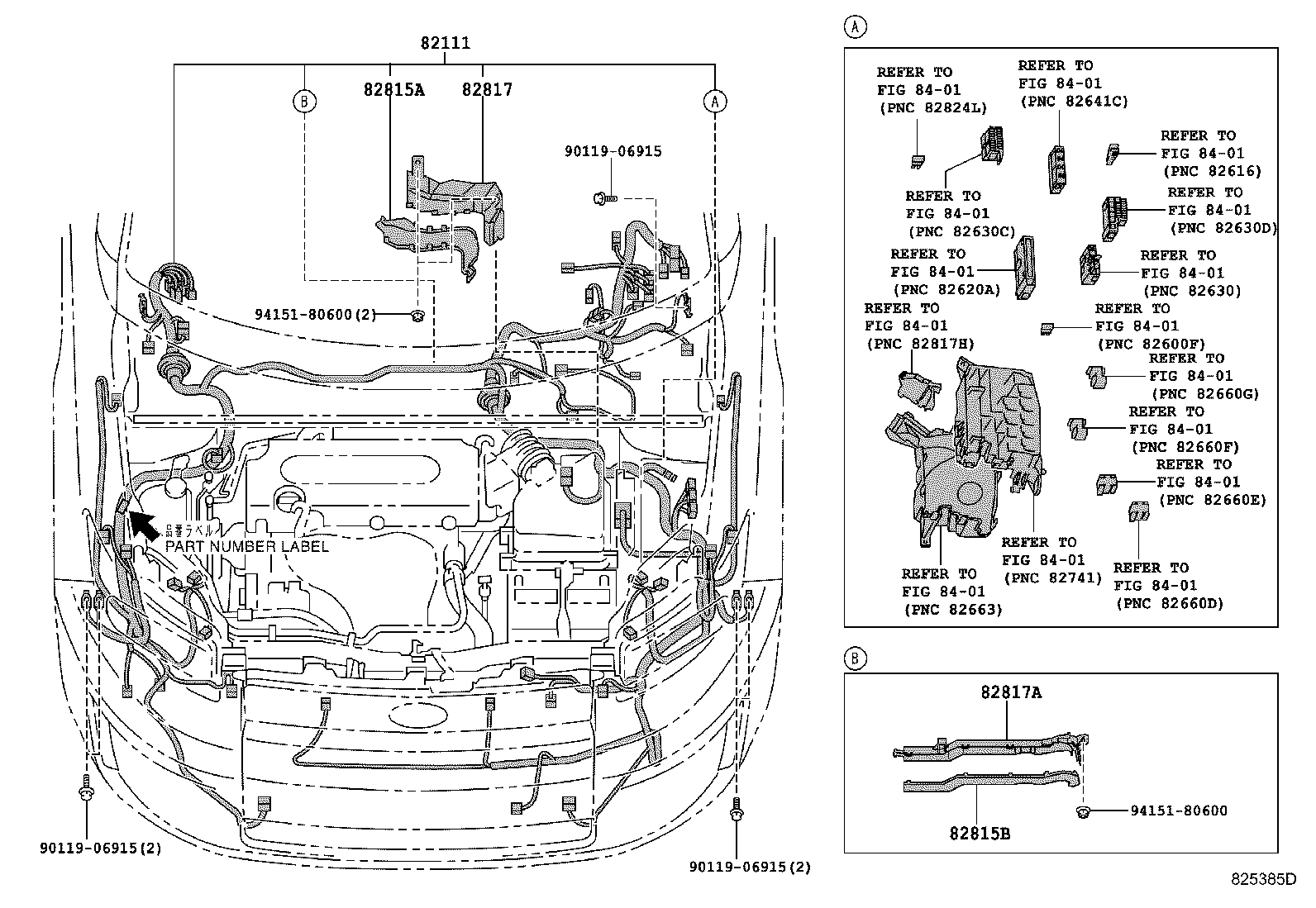

ENGINE ROOM

diagram 82111 82815A 82815B 82817 82817A 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9415180600 9415180600
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-1AQ50

AZE151..ATM

 1
82111-1AQ50

AZE151..ATM

PART NUMBER LABEL=82111-1AQ50

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-12130

AZE151

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-12140

AZE151

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-12A90

AZE151

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-12B00

AZE151

 1
Common parts
90119-06915
94151-80600
Linked diagrams
8401

ILLUST NO. 3 OF 9(0703- )

Click highlighted areas on diagram

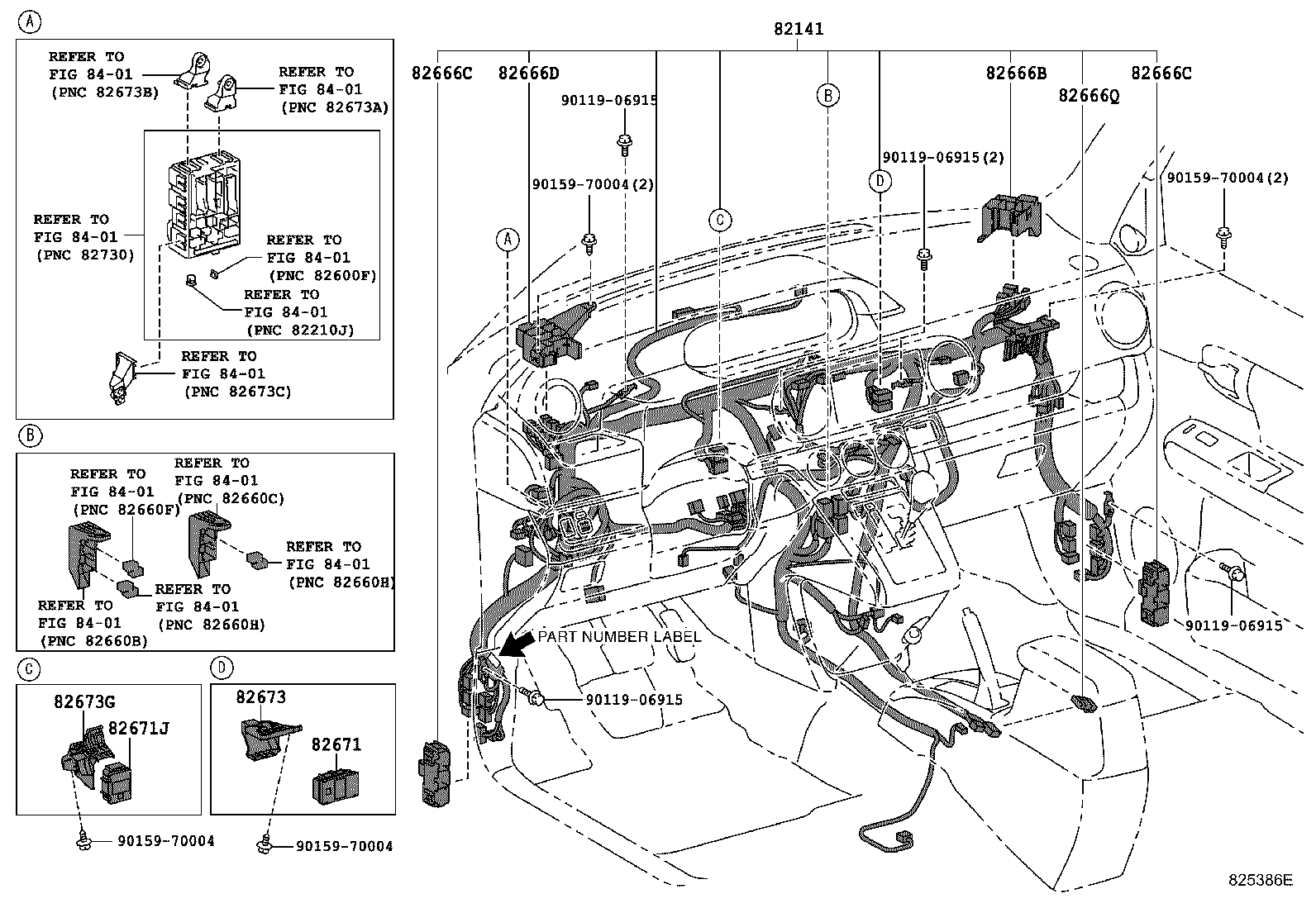

INSTRUMENT PANEL

diagram 82141 82666B 82666C 82666C 82666D 82666Q 82671 82671J 82673 82673G 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9011906915 9015970004 9015970004 9015970004 9015970004
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-1KC20

AZE151..ATM..USA

SPECIAL EDITION

 1
82141-1NS80

AZE151..ATM

 1
82141-1NS80

AZE151..ATM

 1
82141-1KC20

AZE151..ATM..USA

SPECIAL EDITION

 1
82141-1HN80

AZE151..ATM

 1
82141-1HN80

AZE151..ATM

 1
82666B - HOLDER, CONNECTOR NO.3
82666-12350

AZE151

 1
82666C - HOLDER, CONNECTOR NO.4
82666-12360

AZE151

 2
82666C - HOLDER, CONNECTOR NO.4
82666-12360

AZE151

 2
82666D - HOLDER, CONNECTOR NO.5
82666-12380

AZE151

 1
82666Q - HOLDER, CONNECTOR NO.12
82666-60060

AZE151

 1
82671 - BLOCK, JUNCTION
82671-12260

AZE151

 1
82671J - BLOCK, JUNCTION, NO.2
82671-12250

AZE151

 1
82673 - BRACKET, JUNCTION BLOCK
82673-12140

AZE151

 1
82673G - BRACKET, JUNCTION BLOCK
82673-12130

AZE151

 1
Common parts
90119-06915
90159-70004
Linked diagrams
8401

ILLUST NO. 8 OF 9(0703- )

Click highlighted areas on diagram

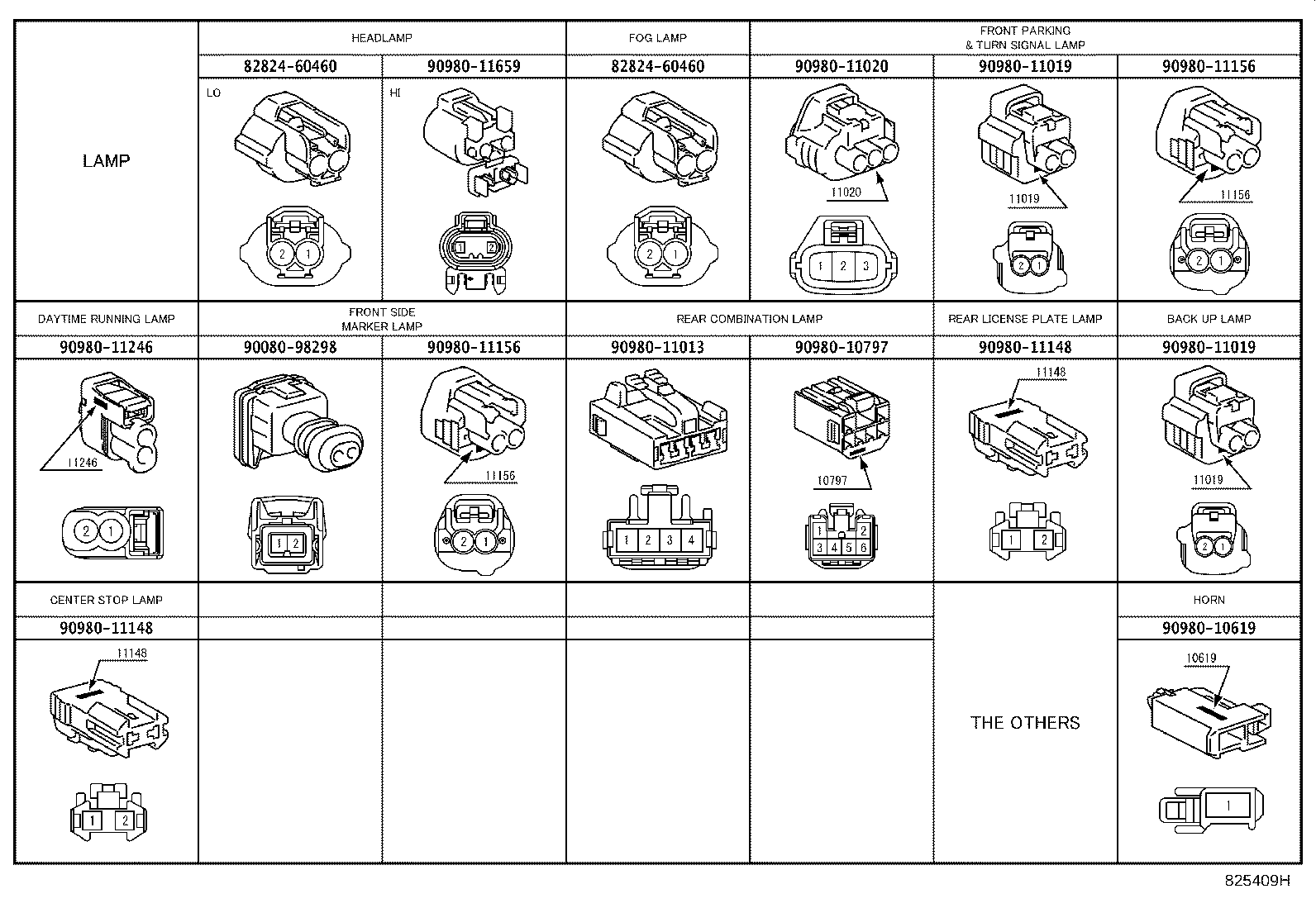

CONNECTOR 1/2

diagram 8282460460 8282460460 9008098298 9098010619 9098010797 9098011013 9098011019 9098011019 9098011020 9098011148 9098011148 9098011156 9098011156 9098011246 9098011659
Part # Description Qty Price
Common parts
82824-60460
90080-98298
90980-10619
90980-10797
90980-11013
90980-11019
90980-11020
90980-11148
90980-11156
90980-11246
90980-11659

ILLUST NO. 9 OF 9(0703- )

Click highlighted areas on diagram

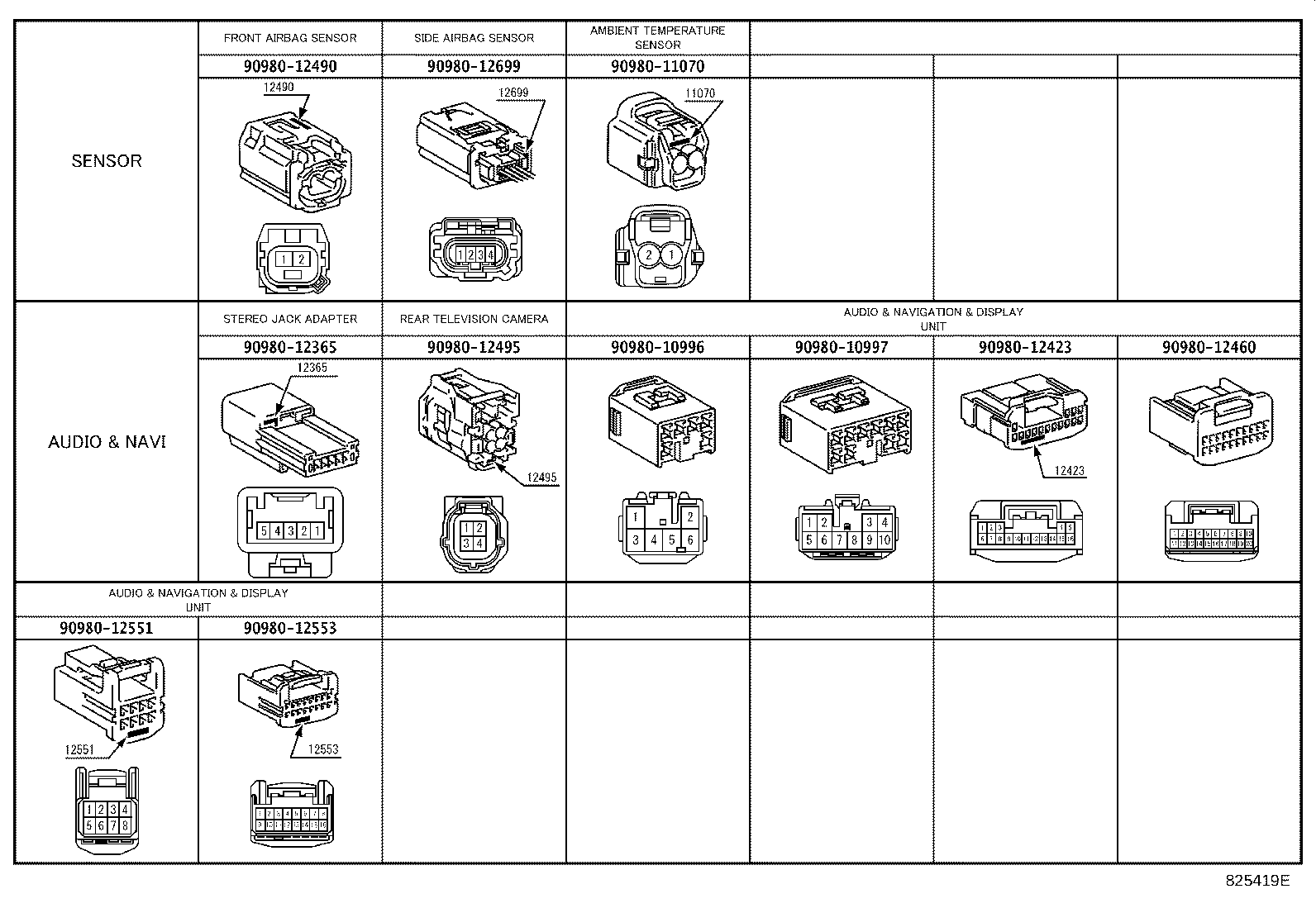

CONNECTOR 2/2

diagram 9098010996 9098010997 9098011070 9098012365 9098012423 9098012460 9098012490 9098012495 9098012551 9098012553 9098012699
Part # Description Qty Price
Common parts
90980-10996
90980-10997
90980-11070
90980-12365
90980-12423
90980-12460
90980-12490
90980-12495
90980-12551
90980-12553
90980-12699
