AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703-1003)

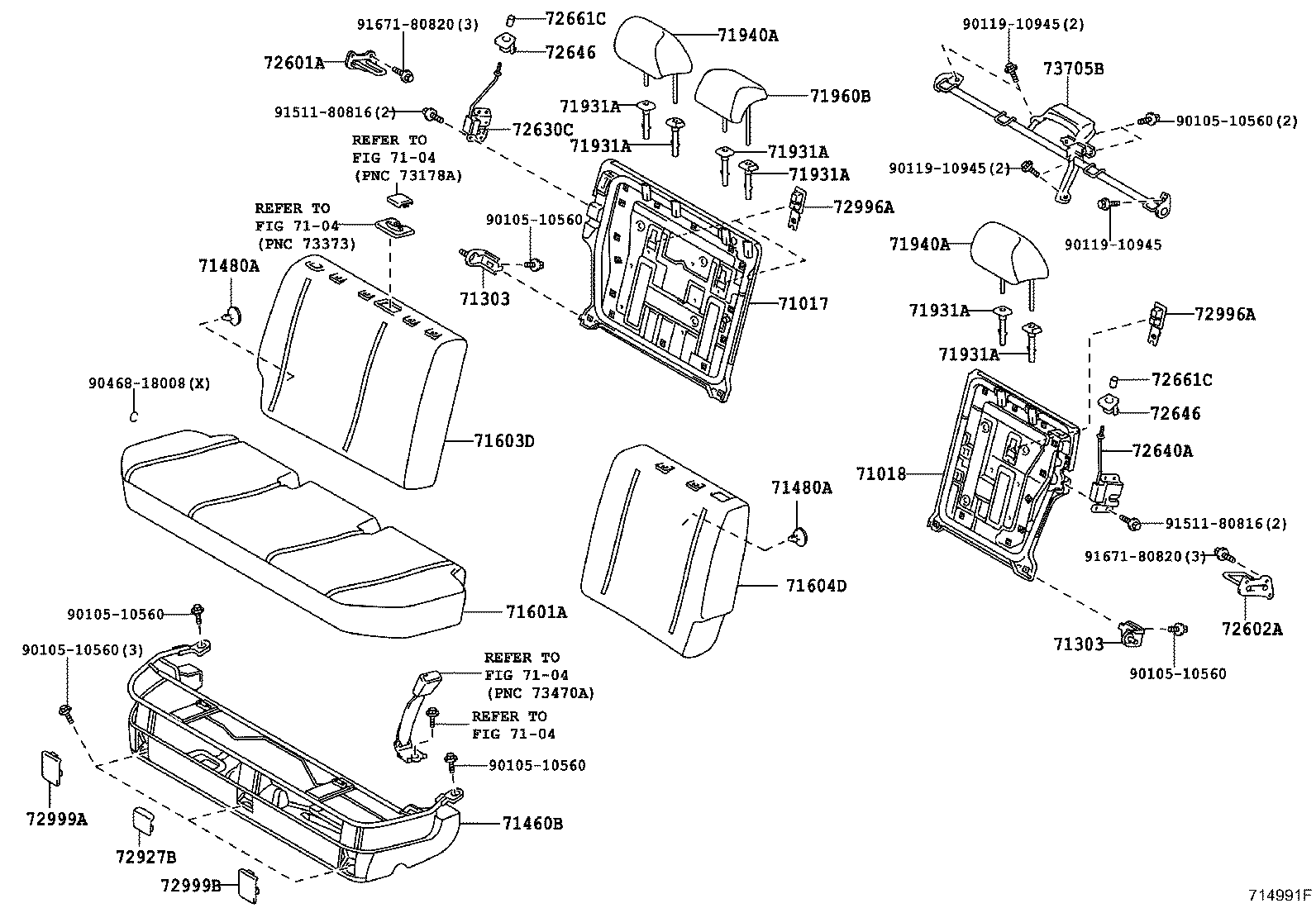

Click highlighted areas on diagram

diagram 71017 71018 7104 7104 7104 7104 71303 71303 71460B 71480A 71480A 71601A 71603D 71604D 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72601A 72602A 72630C 72640A 72646 72646 72661C 72661C 72927B 72996A 72996A 72999A 72999B 73705B 9010510560 9010510560 9010510560 9010510560 9010510560 9010510560 9011910945 9011910945 9011910945 9046818008 9151180816 9151180816 9167180820 9167180820
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-12890

AZE151

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-12440

AZE151

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12190

AZE151

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12190

AZE151

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71407-12170B0

AZE151

DK.GRAY,TRIM1#

 1
71480A - CLIP (FOR REAR SEAT BACK)
90467-09050

AZE151

 18
71480A - CLIP (FOR REAR SEAT BACK)
90467-09050

AZE151

 18
71601A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER
71601-12070B0

AZE151..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 1
71601-12080B0

AZE151..ATM..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 1
71601-12030B0

AZE151

XB RS7.0,DK.GRAY,TRIM10

 1
71601-12060B0

AZE151

DK.GRAY,TRIM1#

 1
71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH
71603-12050B0

AZE151..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 1
71603-12070B1

AZE151

XB RS7.0,DK.GRAY,TRIM10

 1
71603-12060B0

AZE151..ATM..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 1
71603-12040B2

AZE151

DK.GRAY,TRIM1#

 1
71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH
71604-12050B0

AZE151..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 1
71604-12070B1

AZE151

XB RS7.0,DK.GRAY,TRIM10

 1
71604-12060B0

AZE151..ATM..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 1
71604-12040B1

AZE151

DK.GRAY,TRIM1#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-12550B0

AZE151..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 2
71940-12A60B0

AZE151

XB RS7.0,DK.GRAY,TRIM10

 2
71940-12860B0

AZE151..ATM..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 2
71940-12A80B0

AZE151

DK.GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-12550B0

AZE151..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 2
71940-12A60B0

AZE151

XB RS7.0,DK.GRAY,TRIM10

 2
71940-12860B0

AZE151..ATM..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 2
71940-12A80B0

AZE151

DK.GRAY,TRIM1#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-12630B0

AZE151..ATM..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 1
71960-12560B0

AZE151..USA

SPECIAL EDITION,DK.GRAY,TRIM10

 1
71960-12540B0

AZE151

DK.GRAY,TRIM1#

 1
71960-12550B0

AZE151

XB RS7.0,DK.GRAY,TRIM10

 1
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-12250

AZE151

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72602-12080

AZE151

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-12340

AZE151

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-12310

AZE151

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-12090B0

AZE151

DK.GRAY,TRIM1#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-12090B0

AZE151

DK.GRAY,TRIM1#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-35010B1

AZE151

DK.GRAY,TRIM1#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-35010B1

AZE151

DK.GRAY,TRIM1#

 2
72927B - COVER, REAR SEAT CUSHION UNDER
72927-12010B0

AZE151

DK.GRAY,TRIM1#

 1
72996A - COVER, REAR SEAT BACK
72996-12320B0

AZE151

DK.GRAY,TRIM1#

 3
72996A - COVER, REAR SEAT BACK
72996-12320B0

AZE151

DK.GRAY,TRIM1#

 3
72999A - COVER, REAR SEAT CUSHION SIDE, RH
72999-12020B0

AZE151

DK.GRAY,TRIM1#

 1
72999B - COVER, REAR SEAT CUSHION SIDE, LH
72999-12020B0

AZE151

DK.GRAY,TRIM1#

 1
73705B - BRACKET SUB-ASSY, CROSS ANCHOR
73705-12100

AZE151

 1
Common parts
90105-10560
90119-10945
90468-18008
91511-80816
91671-80820
Linked diagrams
7104
