AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )

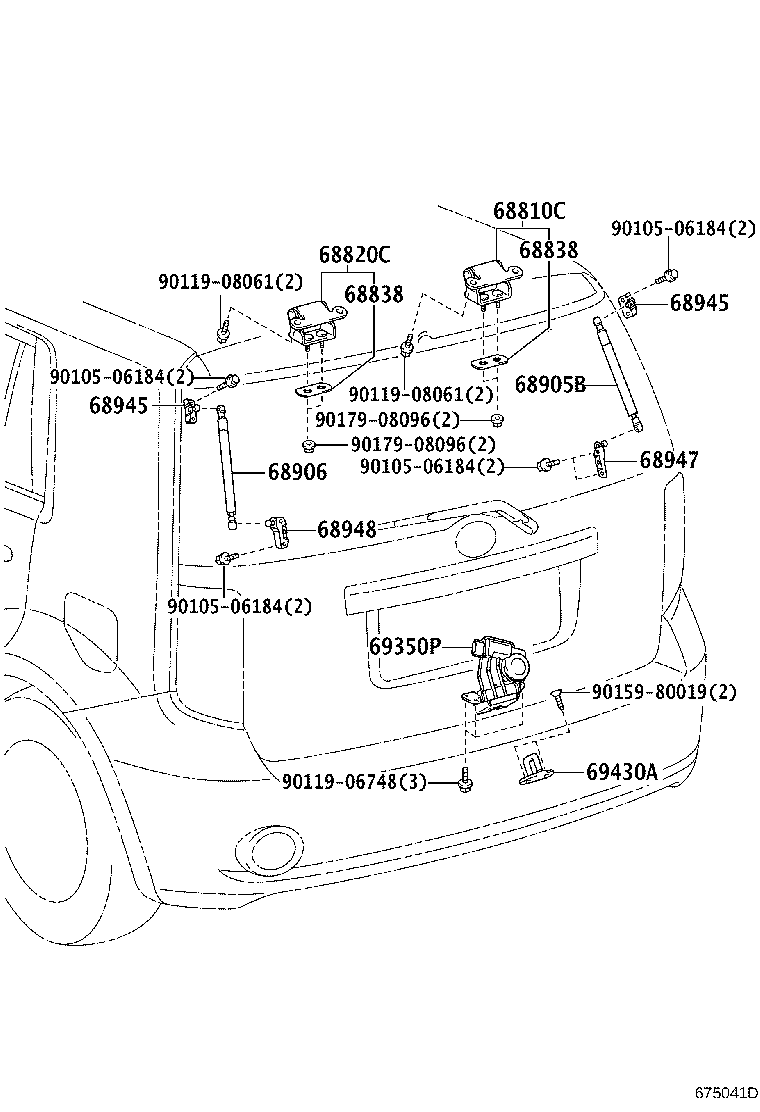

Click highlighted areas on diagram

diagram 68810C 68820C 68838 68838 68905B 68906 68945 68945 68947 68948 69350P 69430A 9010506184 9010506184 9010506184 9010506184 9011906748 9011908061 9011908061 9015980019 9017908096 9017908096
Part # Description Qty Price
68810C - HINGE ASSY, BACK DOOR, RH
68810-21050

AZE151

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-21050

AZE151

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-44020

AZE151

T=1.0

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-44020

AZE151

T=1.0

 2
68905B - STAY SUB-ASSY, BACK DOOR, RH
68950-12520

AZE151

 1
68906 - STAY SUB-ASSY, BACK DOOR, LH
68960-12340

AZE151

 1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-12060

AZE151

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-12060

AZE151

 2
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-12060

AZE151

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-12060

AZE151

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-28150

AZE151

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
69430-20160

AZE151

 1
Common parts
90105-06184
90119-06748
90119-08061
90159-80019
90179-08096
