AZE151L-FHPNKA (2007)
Toyota Scion Xb

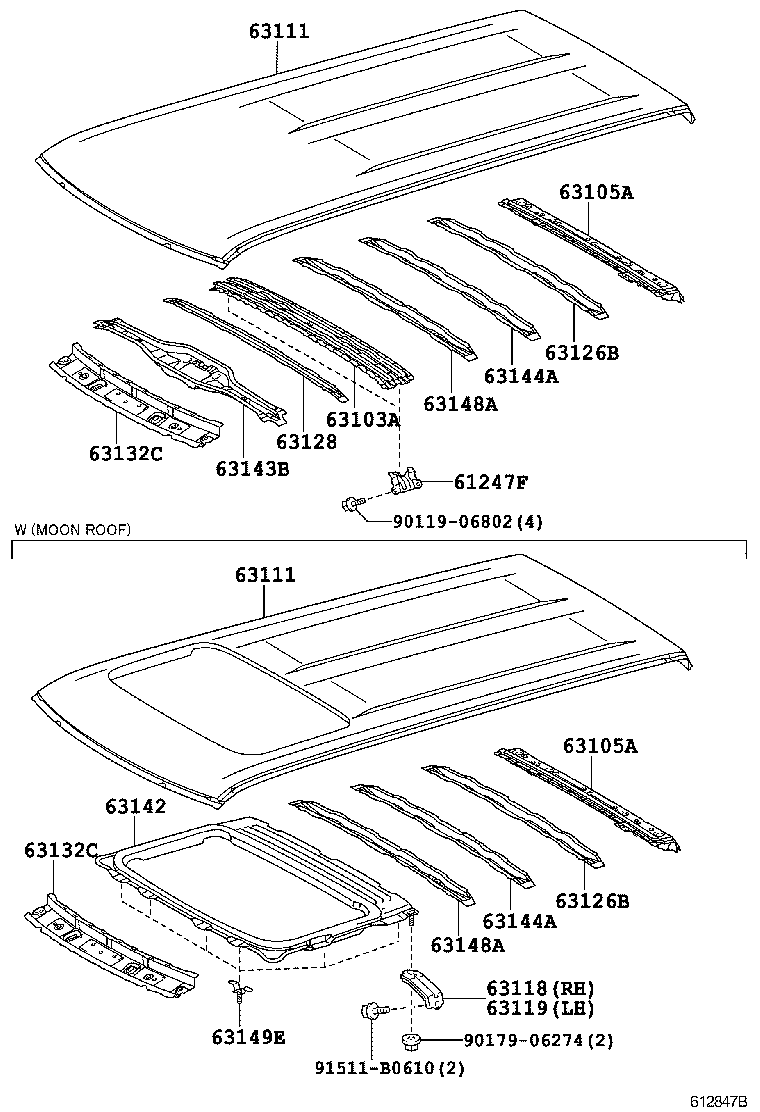

ILLUST NO. 1 OF 2(0703- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER | ||||
| 61247-12090 |
AZE151 |
2 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-12140 |
AZE151 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-12280 |
AZE151 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-12280 |
AZE151 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12A20 |
AZE151 |
1 | ||
| 63111-12A30 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-12A20 |
AZE151 |
1 | ||
| 63111-12A30 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-12130 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-12130 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2 | ||||
| 63126-12030 |
AZE151 |
1 | ||
| 63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2 | ||||
| 63126-12030 |
AZE151 |
1 | ||
| 63128 - REINFORCEMENT, ROOF PANEL, NO.6 | ||||
| 63128-12030 |
AZE151 |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12370 |
AZE151 |
1 | ||
| 63132C - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-12370 |
AZE151 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-12160 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-12160 |
AZE151 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-12140 |
AZE151 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-12140 |
AZE151 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-12060 |
AZE151 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-12060 |
AZE151 |
1 | ||
| 63149E - BRACKET, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63149-12040 |
AZE151..USA SPECIAL EDITION |
8 | ||
| Common parts | ||||
| 90119-06802 | ||||
| 90179-06274 | ||||
| 91511-B0610 | ||||

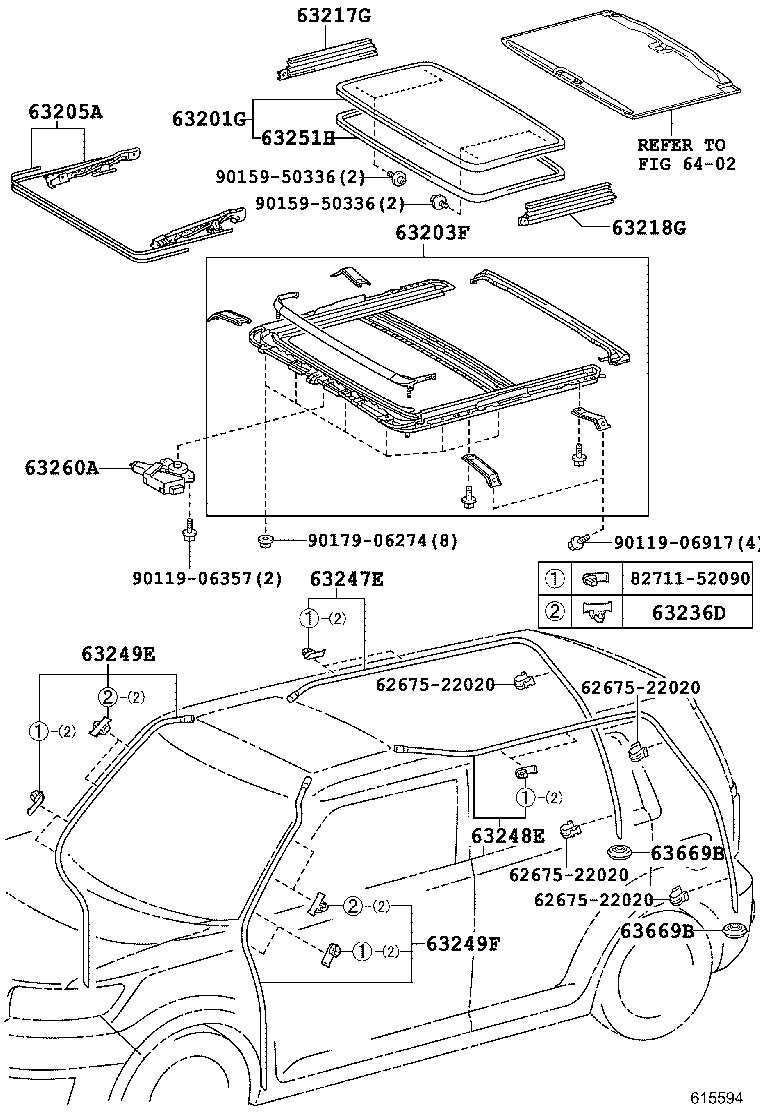

ILLUST NO. 2 OF 2(0712-0802) ; (1010-1012)USA
MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-12300 |
AZE151..USA *TEM,T=4.0,DARK GRAY,SPECIAL EDITION |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-12180 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-60010 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-60050 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-60050 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-12010 |
AZE151..USA SPECIAL EDITION |
4 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63249-12450 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63249-12460 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12440 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-12470 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-12190 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-12160 |
AZE151..USA SPECIAL EDITION |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26020 |
AZE151..USA SPECIAL EDITION |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26020 |
AZE151..USA SPECIAL EDITION |
2 | ||
| Common parts | ||||
| 62675-22020 | ||||
| 82711-52090 | ||||
| 90119-06357 | ||||
| 90119-06917 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 6402 | ||||
