AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )

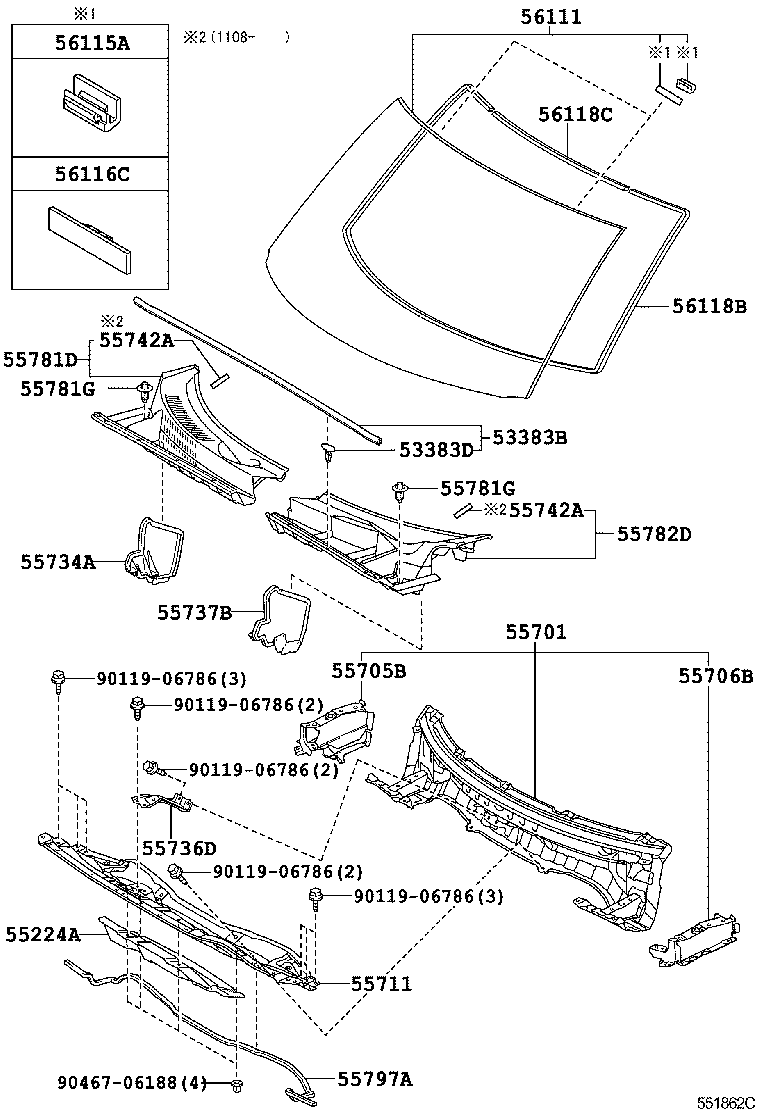

Click highlighted areas on diagram

diagram 53383B 53383D 55224A 55701 55705B 55706B 55711 55734A 55736D 55737B 55742A 55742A 55781D 55781G 55781G 55782D 55797A 56111 56115A 56116C 56118B 56118C 9011906786 9011906786 9011906786 9011906786 9011906786 9046706188
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-12180

AZE151

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

AZE151

 5
55224A - INSULATOR, DASH PANEL, OUTER NO.2
55224-12050

AZE151

 1
55701 - PANEL SUB-ASSY, COWL
55700-12B50

AZE151

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-12120

AZE151

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-12130

AZE151

 1
55711 - PANEL, COWL TOP, OUTER
55701-12B00

AZE151

 1
55734A - PLATE, WATER GUARD, RH
55734-12190

AZE151

 1
55736D - REINFORCEMENT, COWL BODY MOUNTING, LH
55736-12070

AZE151

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-12120

AZE151

 1
55781D - LOUVER, COWL TOP VENTILATOR, RH
55708-12391

AZE151

 1
55708-12390

AZE151

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

AZE151

BLACK

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

AZE151

BLACK

 2
55782D - LOUVER, COWL TOP VENTILATOR, LH
55709-12160

AZE151

 1
55797A - SEAL, COWL WATER EXTRACT
55797-12070

AZE151

 1
56111 - GLASS, WINDSHIELD
56101-12490

AZE151

*LAM,T=4.76,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30100

AZE151

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AZE151

 2
56118B - DAM, WINDOW GLASS ADHESIVE, NO.2
56117-12320

AZE151

 1
56118C - RETAINER, WINDSHIELD GLASS, NO.2
56118-12080

AZE151

L=643

 1
Common parts
90119-06786
90467-06188
