AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )

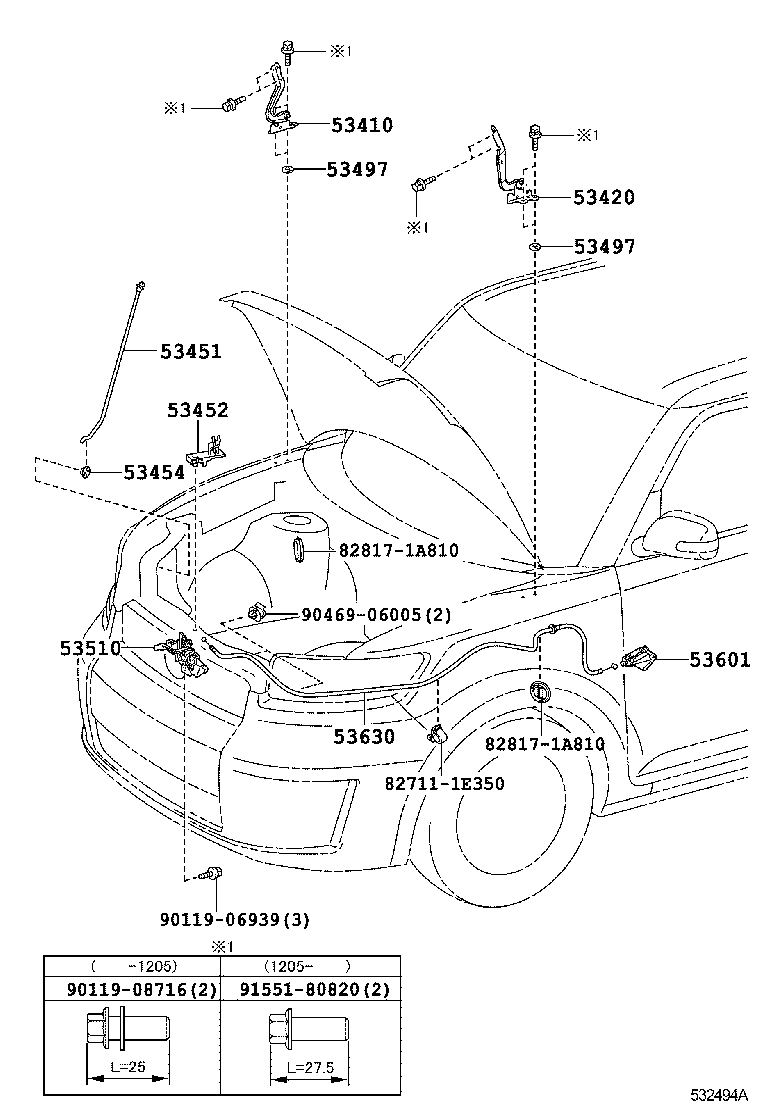

Click highlighted areas on diagram

diagram 53410 53420 53451 53452 53454 53497 53497 53510 53601 53630 827111E350 828171A810 828171A810 9011906939 9011908716 9046906005 9155180820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-12580

AZE151

 1
53420 - HINGE ASSY, HOOD, LH
53420-12570

AZE151

 1
53451 - ROD, HOOD SUPPORT
53440-12120

AZE151

 1
53452 - HOLDER, HOOD STAY
53452-12100

AZE151

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-12020

AZE151

 1
53497 - PAD, HOOD HINGE, NO.1
53497-42010

AZE151

T=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-42010

AZE151

T=0.5

 4
53510 - LOCK ASSY, HOOD
53510-12A50

AZE151

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010B3

AZE151

DK.GRAY,TRIM1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-12640

AZE151

 1
Common parts
82711-1E350
82817-1A810
90119-06939
90119-08716
90469-06005
91551-80820
