AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0703- )

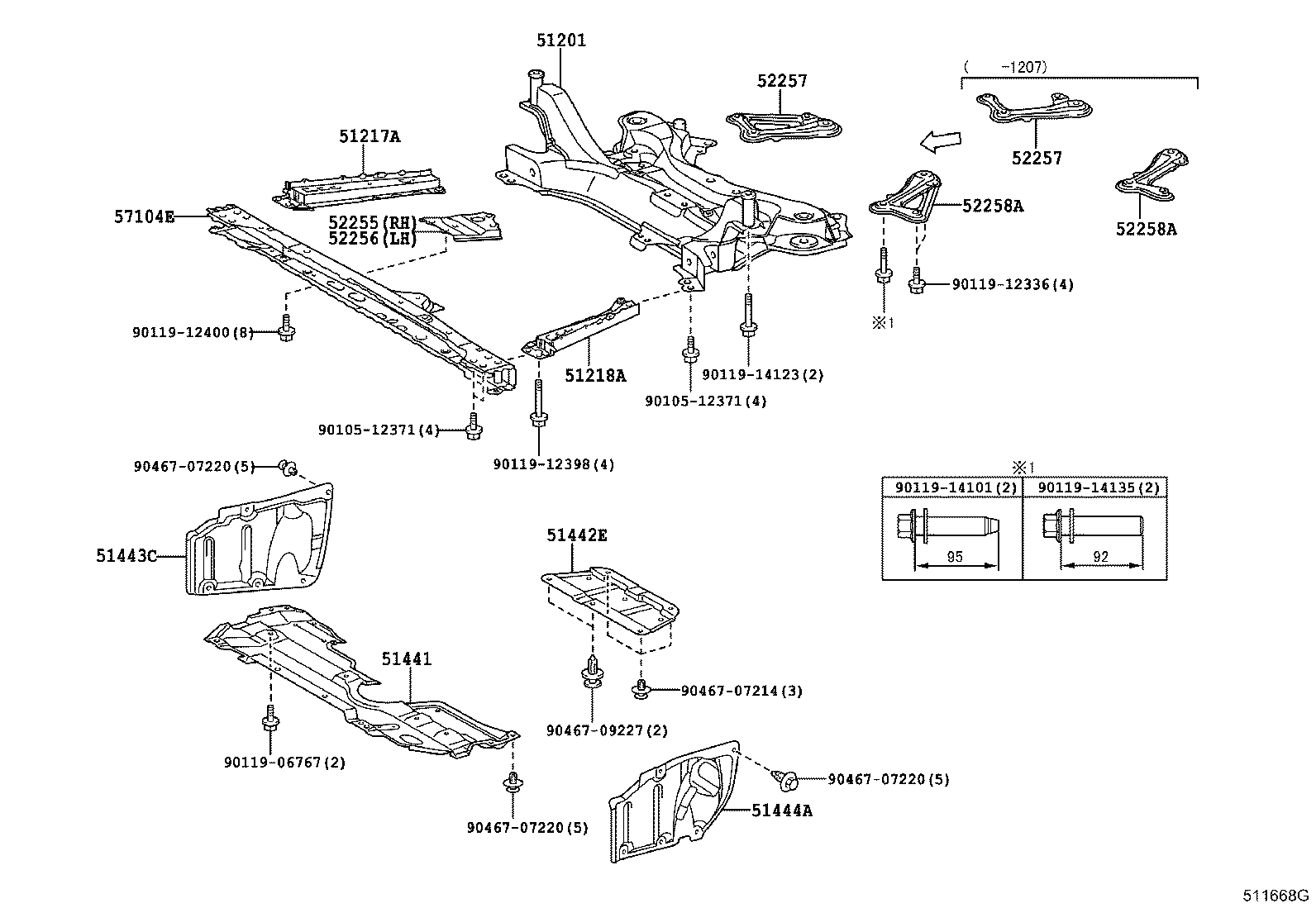

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-12441 |
AZE151 |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-12010 |
AZE151 |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-12010 |
AZE151 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-12270 |
AZE151 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12270 |
AZE151 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-12080 |
AZE151 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-12050 |
AZE151 |
1 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-12010 |
AZE151 |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-12010 |
AZE151 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-12010 |
AZE151 |
1 | ||
| 52257-12011 |
AZE151 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-12010 |
AZE151 |
1 | ||
| 52257-12011 |
AZE151 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-12010 |
AZE151 |
1 | ||
| 52258-12011 |
AZE151 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-12010 |
AZE151 |
1 | ||
| 52258-12011 |
AZE151 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12270 |
AZE151 |
1 | ||
| Common parts | ||||
| 90105-12371 | ||||
| 90119-06767 | ||||
| 90119-12336 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90119-14101 | ||||
| 90119-14123 | ||||
| 90119-14135 | ||||
| 90467-07214 | ||||
| 90467-07220 | ||||
| 90467-09227 | ||||
