AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0703- )

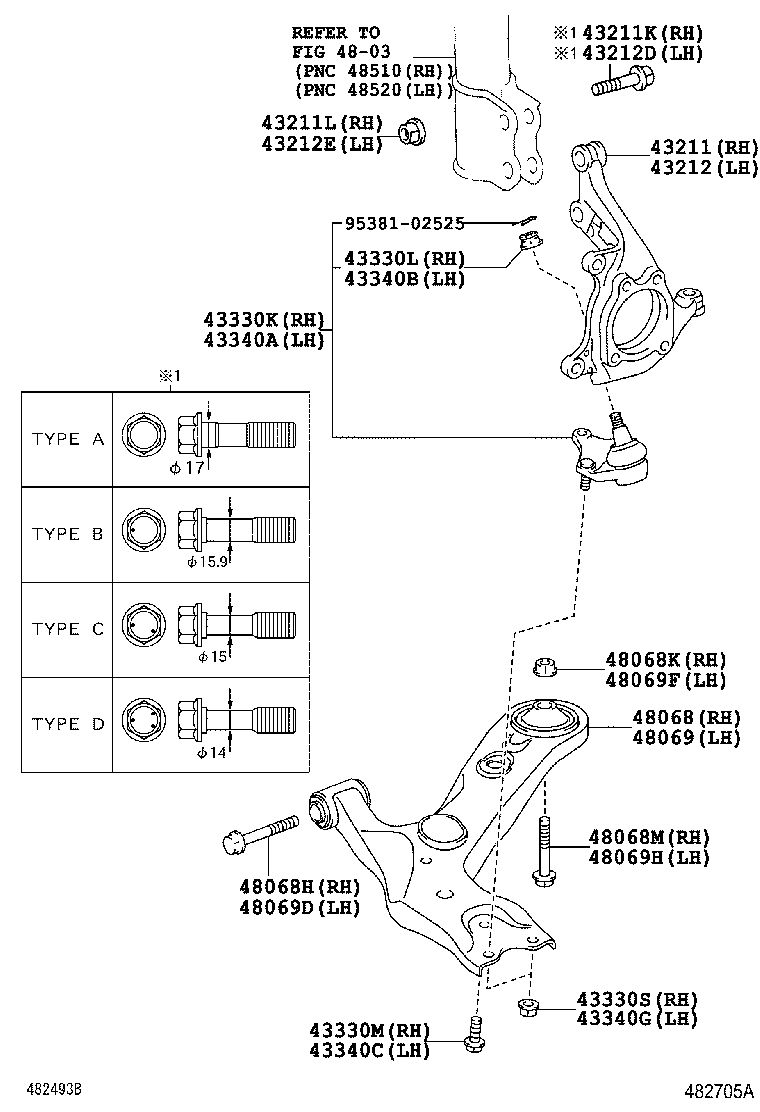

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-12460 |
AZE151 |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17008 |
AZE151 OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-17010 |
AZE151 OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 90105-17009 |
AZE151 OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17011 |
AZE151 OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90178-17002 |
AZE151 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-12410 |
AZE151 |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17011 |
AZE151 OD=14,TYPE D:REFER ILLUST. |
1 | ||
| 90105-17008 |
AZE151 OD=17,TYPE A:REFER ILLUST. |
2 | ||
| 90105-17009 |
AZE151 OD=15.9,TYPE B:REFER ILLUST. |
1 | ||
| 90105-17010 |
AZE151 OD=15,TYPE C:REFER ILLUST. |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90178-17002 |
AZE151 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-19245 |
AZE151 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
AZE151 |
1 | ||
| 43330M - BOLT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90105-12346 |
AZE151 |
1 | ||
| 43330S - NUT (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90178-12019 |
AZE151 |
2 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-19245 |
AZE151 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
AZE151 |
1 | ||
| 43340C - BOLT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90105-12346 |
AZE151 |
1 | ||
| 43340G - NUT (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90178-12019 |
AZE151 |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-12300 |
AZE151 |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 91554-L1690 |
AZE151 |
1 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90178-16006 |
AZE151 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 91554-L1690 |
AZE151 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-12300 |
AZE151 |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 91554-L1690 |
AZE151 |
1 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90178-16006 |
AZE151 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 91554-L1690 |
AZE151 |
1 | ||
| Common parts | ||||
| 95381-02525 | ||||
| Linked diagrams | ||||
| 4803 | ||||
