AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0703- )

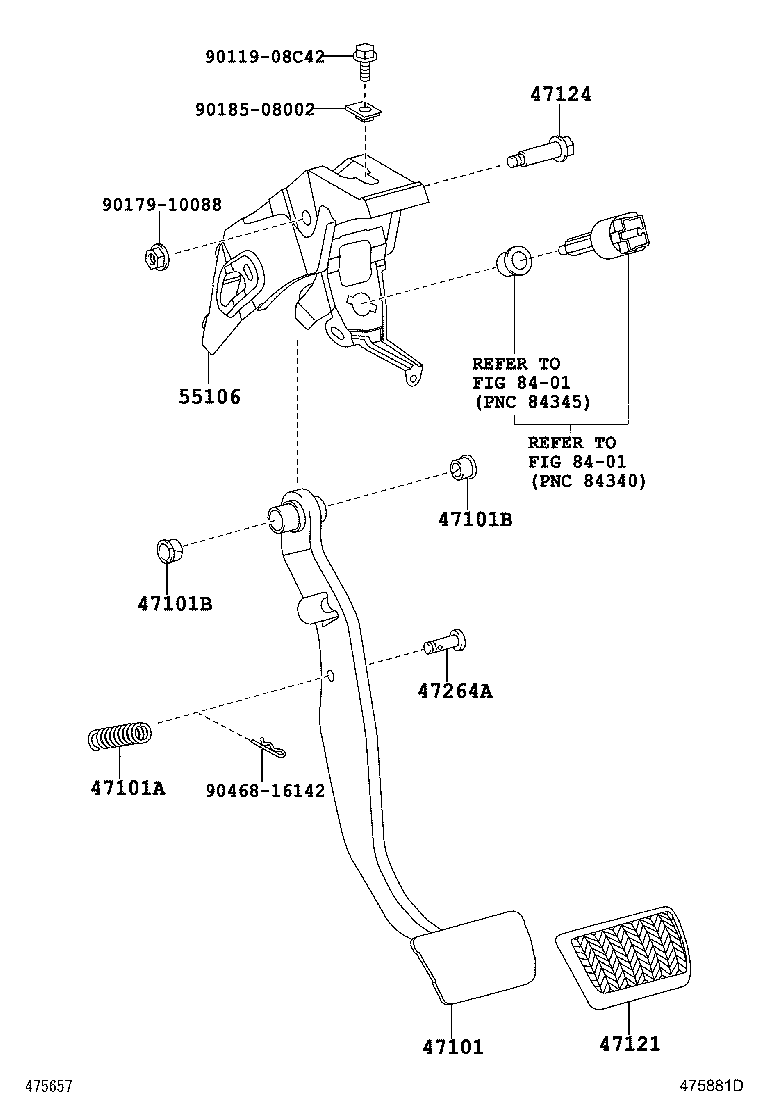

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-12660 |
AZE151..ATM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-15005 |
AZE151 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
AZE151 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
AZE151 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-42010 |
AZE151..ATM |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90109-10174 |
AZE151 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-08256 |
AZE151 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-12690 |
AZE151 |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90179-10088 | ||||
| 90185-08002 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||
