AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0703- )

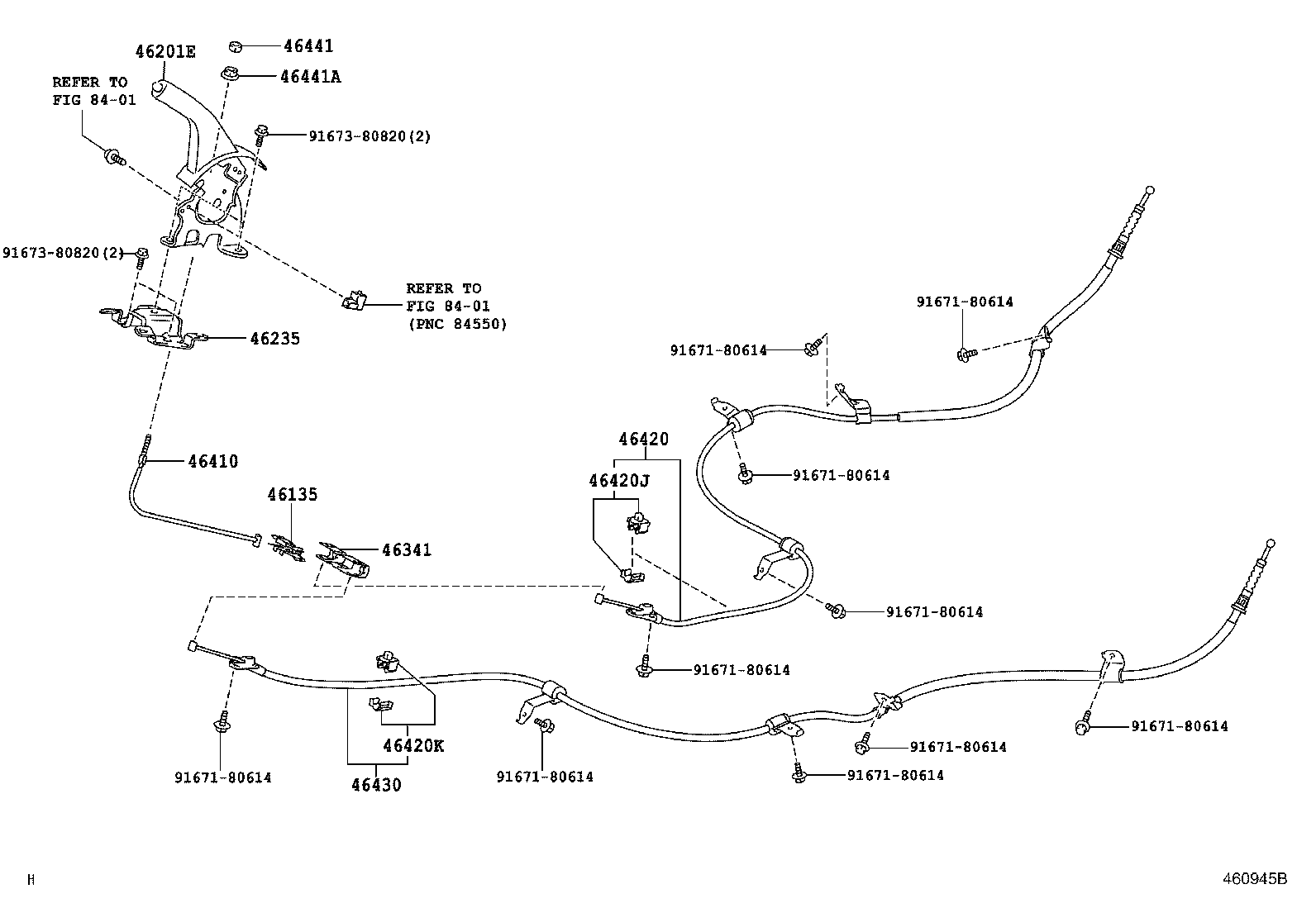

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46135 - STOPPER, PARKING BRAKE CABLE END | ||||
| 46135-12010 |
AZE151 |
1 | ||
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-12470B0 |
AZE151 DK.GRAY,TRIM1# |
1 | ||
| 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT | ||||
| 46235-12020 |
AZE151 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-12040 |
AZE151 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-12290 |
AZE151 |
1 | ||
| 46410-12320 |
AZE151 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-12730 |
AZE151 |
1 | ||
| 46420-12590 |
AZE151 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
AZE151 |
1 | ||
| 46402-12010 |
AZE151 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46402-12030 |
AZE151 |
1 | ||
| 46402-12010 |
AZE151 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-12470 |
AZE151 |
1 | ||
| 46430-12620 |
AZE151 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90179-06299 |
AZE151 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 46441-12010 |
AZE151 |
1 | ||
| Common parts | ||||
| 91671-80614 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
