AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )ATM

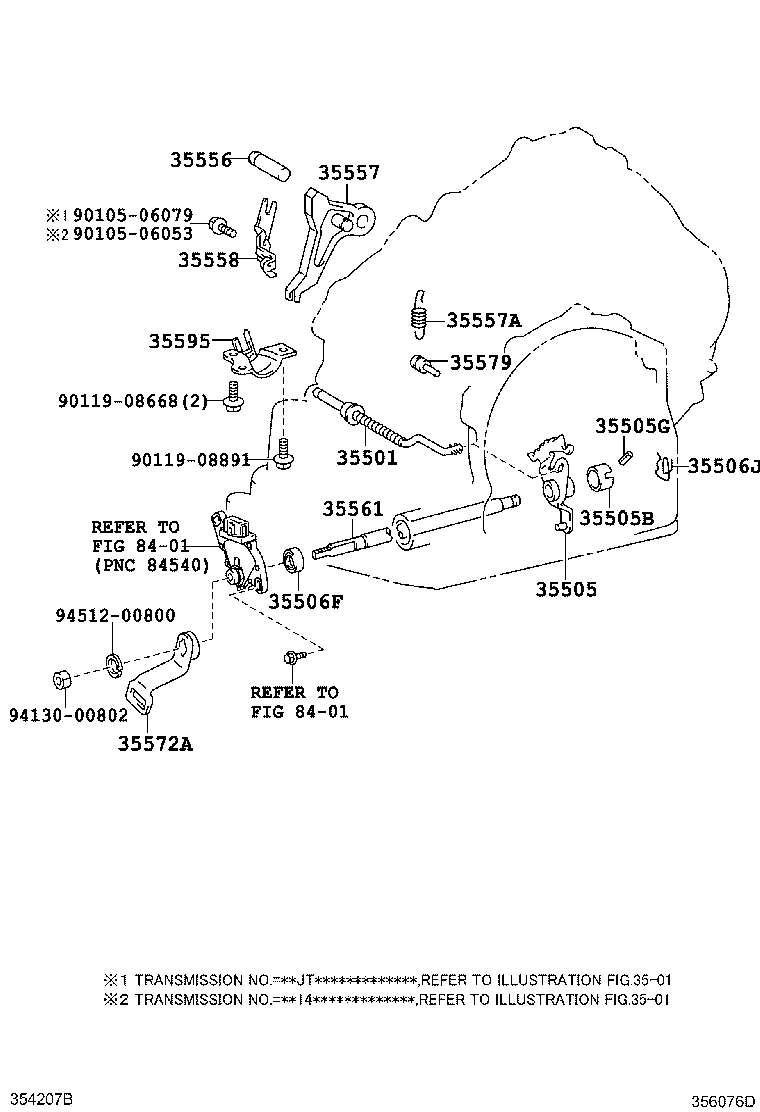

Click highlighted areas on diagram

U241E

diagram 35501 35505 35505B 35505G 35506F 35506J 35556 35557 35557A 35558 35561 35572A 35579 35595 8401 8401 9010506053 9010506079 9011908668 9011908891 9413000802 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-21010

AZE151..ATM

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-21010

AZE151..ATM

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

AZE151..ATM

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

AZE151..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

AZE151..ATM

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09001

AZE151..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-32030

AZE151..ATM

 1
35557 - PAWL, PARKING LOCK
35590-32010

AZE151..ATM

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90506-18077

AZE151..ATM

 1
35558 - CLAMP, PAWL SHAFT
35558-32010

AZE151..ATM

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-21010

AZE151..ATM

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-28120

AZE151..ATM

 1
35579 - PIN, PARKING LOCK PAWL
35594-21010

AZE151..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-21010

AZE151..ATM

 1
Common parts
90105-06053
90105-06079
90119-08668
90119-08891
94130-00802
94512-00800
Linked diagrams
8401
