AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )ATM

Click highlighted areas on diagram

U241E

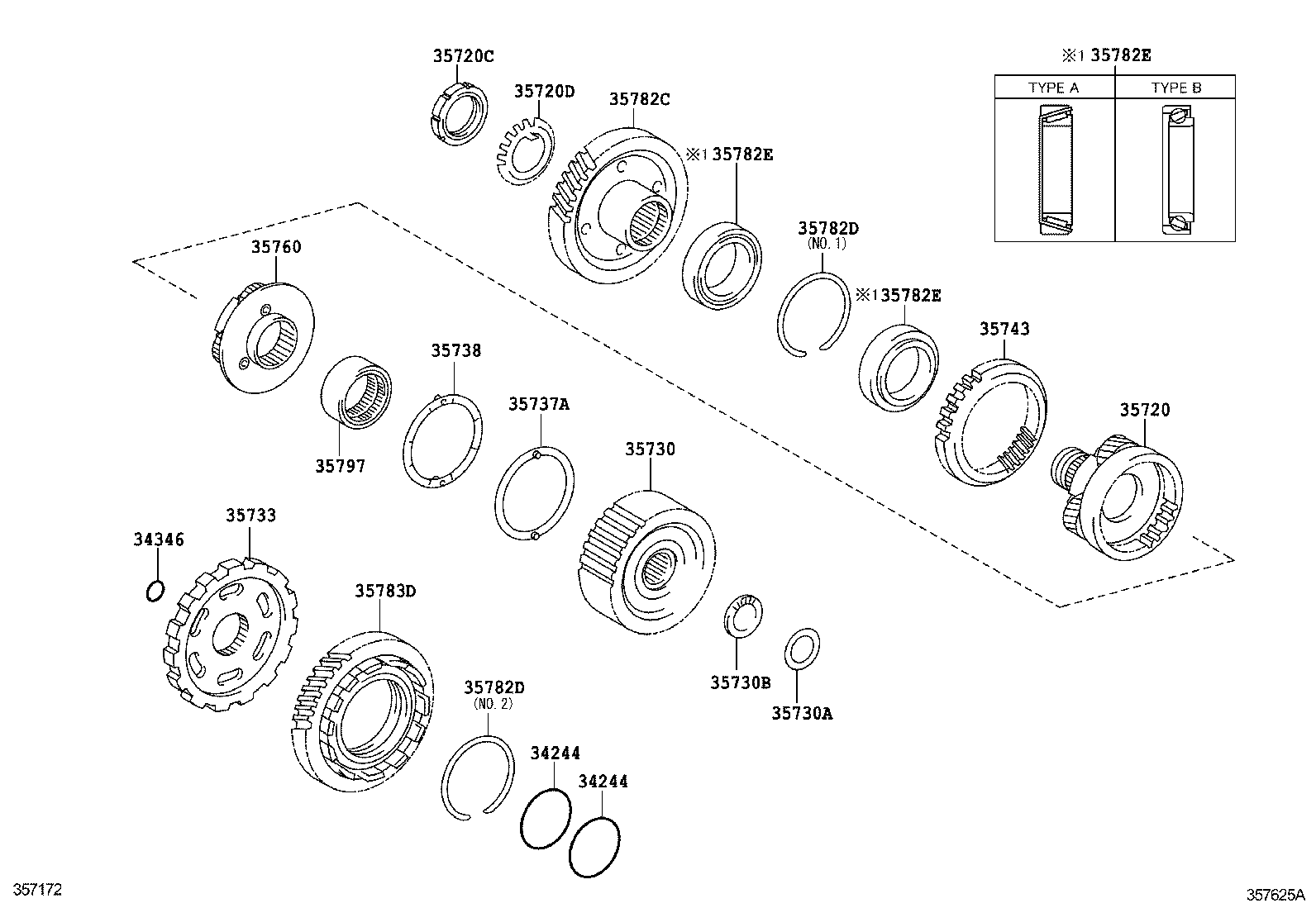

diagram 34244 34244 34346 35720 35720C 35720D 35730 35730A 35730B 35733 35737A 35738 35743 35760 35782C 35782D 35782D 35782E 35782E 35782E 35783D 35797
Part # Description Qty Price
34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34244-21010

AZE151..ATM

 2
34244 - RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
34244-21010

AZE151..ATM

 2
34346 - RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL
34346-21011

AZE151..ATM

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-44010

AZE151..ATM

 1
35720C - NUT (FOR FRONT PLANETARY GEAR)
90179-46001

AZE151..ATM

 1
35720D - WASHER (FOR FRONT PLANETARY GEAR)
90209-46001

AZE151..ATM

 1
35730 - GEAR ASSY, REAR PLANETARY SUN
35730-21010

AZE151..ATM

 1
35730A - RACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
35789-21010

AZE151..ATM

 1
35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G
90374-33003

AZE151..ATM

 1
35733 - GEAR, PARKING LOCK
35733-32030

AZE151..ATM

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-21010

AZE151..ATM

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35737-21010

AZE151..ATM

 1
35743 - GEAR, FRONT PLANETARY RING
35743-21010

AZE151..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-33030

AZE151..ATM

 1
35782C - GEAR, COUNTER DRIVE
35782-32031

AZE151..ATM

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-89004

AZE151..ATM

NO.2

 1
90520-84001

AZE151..ATM

NO.1

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90520-89004

AZE151..ATM

NO.2

 1
90520-84001

AZE151..ATM

NO.1

 1
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90369-59001

AZE151..ATM

 2
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90369-59001

AZE151..ATM

 2
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90369-59001

AZE151..ATM

 2
35783D - GEAR, COUNTER DRIVEN
35783-33040

AZE151..ATM

 1
35797 - RACE, 1 WAY CLUTCH INNER
35797-21010

AZE151..ATM

 1
