AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )ATM

Click highlighted areas on diagram

U241E

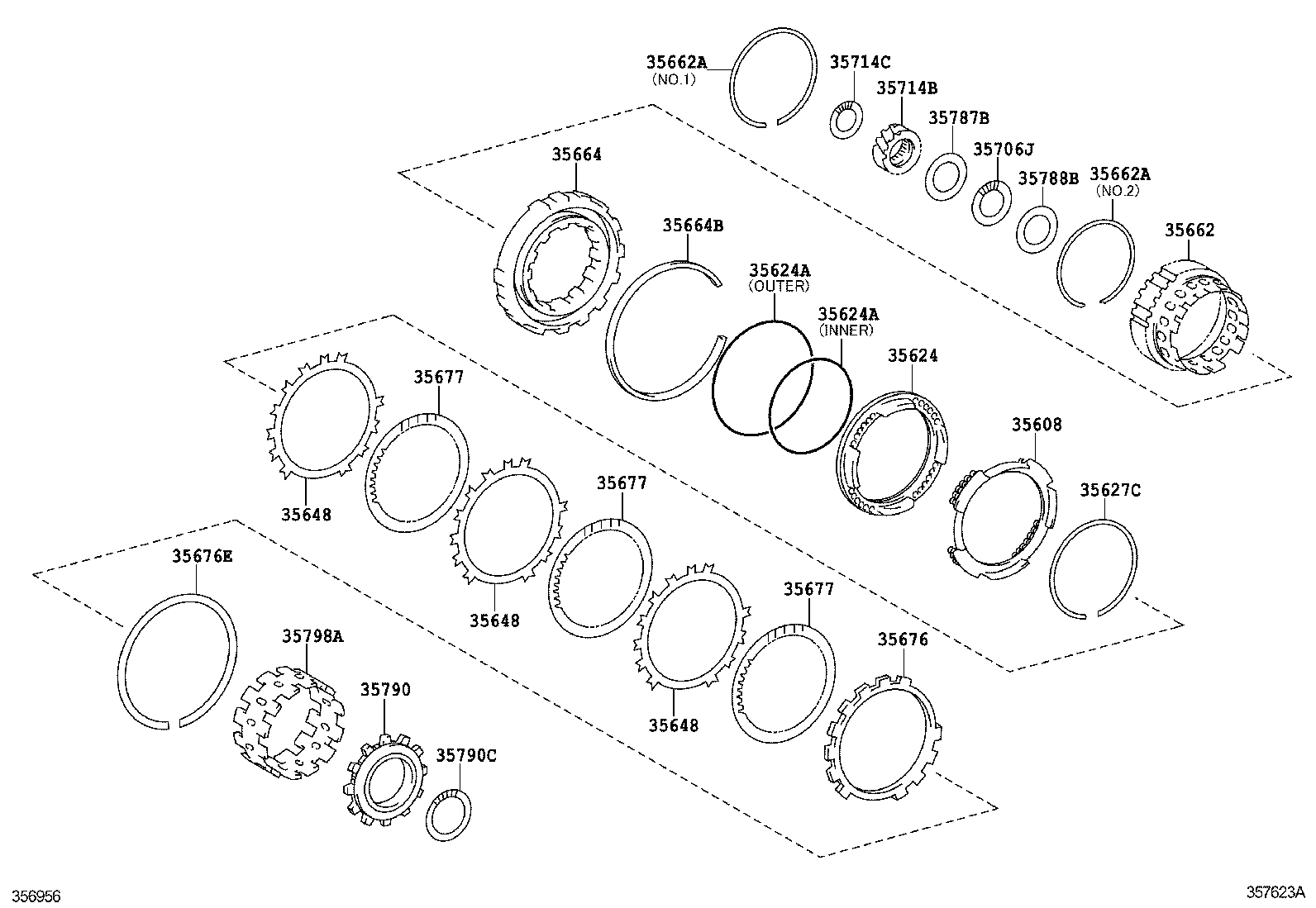

diagram 35608 35624 35624A 35624A 35627C 35648 35648 35648 35662 35662A 35662A 35664 35664B 35676 35676E 35677 35677 35677 35706J 35714B 35714C 35787B 35788B 35790 35790C 35798A
Part # Description Qty Price
35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-21010

AZE151..ATM

 1
35624 - PISTON, 2ND BRAKE
35624-33030

AZE151..ATM

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99093

AZE151..ATM

OUTER

 1
90301-99095

AZE151..ATM

INNER

 1
35624A - RING, O (FOR 2ND BRAKE PISTON)
90301-99093

AZE151..ATM

OUTER

 1
90301-99095

AZE151..ATM

INNER

 1
35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA
90520-99036

AZE151..ATM

 1
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

AZE151..ATM

T=2.0

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

AZE151..ATM

T=2.0

 3
35648 - PLATE, CLUTCH (FOR 2ND BRAKE)
35691-21010

AZE151..ATM

T=2.0

 3
35662 - HUB, BRAKE
35662-21010

AZE151..ATM

 1
35662A - RING, SNAP (FOR BRAKE HUB)
90520-99024

AZE151..ATM

NO.2

 1
90520-99033

AZE151..ATM

NO.1

 1
35662A - RING, SNAP (FOR BRAKE HUB)
90520-99024

AZE151..ATM

NO.2

 1
90520-99033

AZE151..ATM

NO.1

 1
35664 - CYLINDER, 2ND BRAKE
35664-33010

AZE151..ATM

 1
35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
90520-99027

AZE151..ATM

 1
35676 - FLANGE, BRAKE (FOR 2ND BRAKE)
35676-21120

AZE151..ATM

T=3.5,MARK 6

 1
35676-21100

AZE151..ATM

T=3.3,MARK 4

 1
35676-21010

AZE151..ATM

T=3.7,MARK 8

 1
35676-21080

AZE151..ATM

T=3.1,MARK 2

 1
35676-21130

AZE151..ATM

T=3.6,MARK 7

 1
35676-21070

AZE151..ATM

T=3.0,MARK 1

 1
35676-21090

AZE151..ATM

T=3.2,MARK 3

 1
35676-21020

AZE151..ATM

T=2.9,MARK 0

 1
35676-21110

AZE151..ATM

T=3.4,MARK 5

 1
35676E - RING, HOLE SNAP (FOR 2ND BRAKE)
90520-99026

AZE151..ATM

 1
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

AZE151..ATM

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

AZE151..ATM

 3
35677 - DISC, CLUTCH (FOR 2ND BRAKE)
35681-21010

AZE151..ATM

 3
35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
90374-38002

AZE151..ATM

 1
35714B - GEAR, INPUT SUN
35714-21010

AZE151..ATM

 1
35714C - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR)
90374-34006

AZE151..ATM

 1
35787B - RACE, THRUST BEARING, NO.2
35787-21010

AZE151..ATM

 1
35788B - RACE, THRUST BEARING, NO.3
35788-21010

AZE151..ATM

 1
35790 - CLUTCH ASSY, 1 WAY
35790-33020

AZE151..ATM

 1
35790C - BEARING, THRUST NEEDLE ROLLER
90374-53001

AZE151..ATM

 1
35798A - SLEEVE, 1WAY CLUTCH, OUTER
35798-21011

AZE151..ATM

 1
