AZE151L-FHPNKA (2007)
Toyota Scion Xb

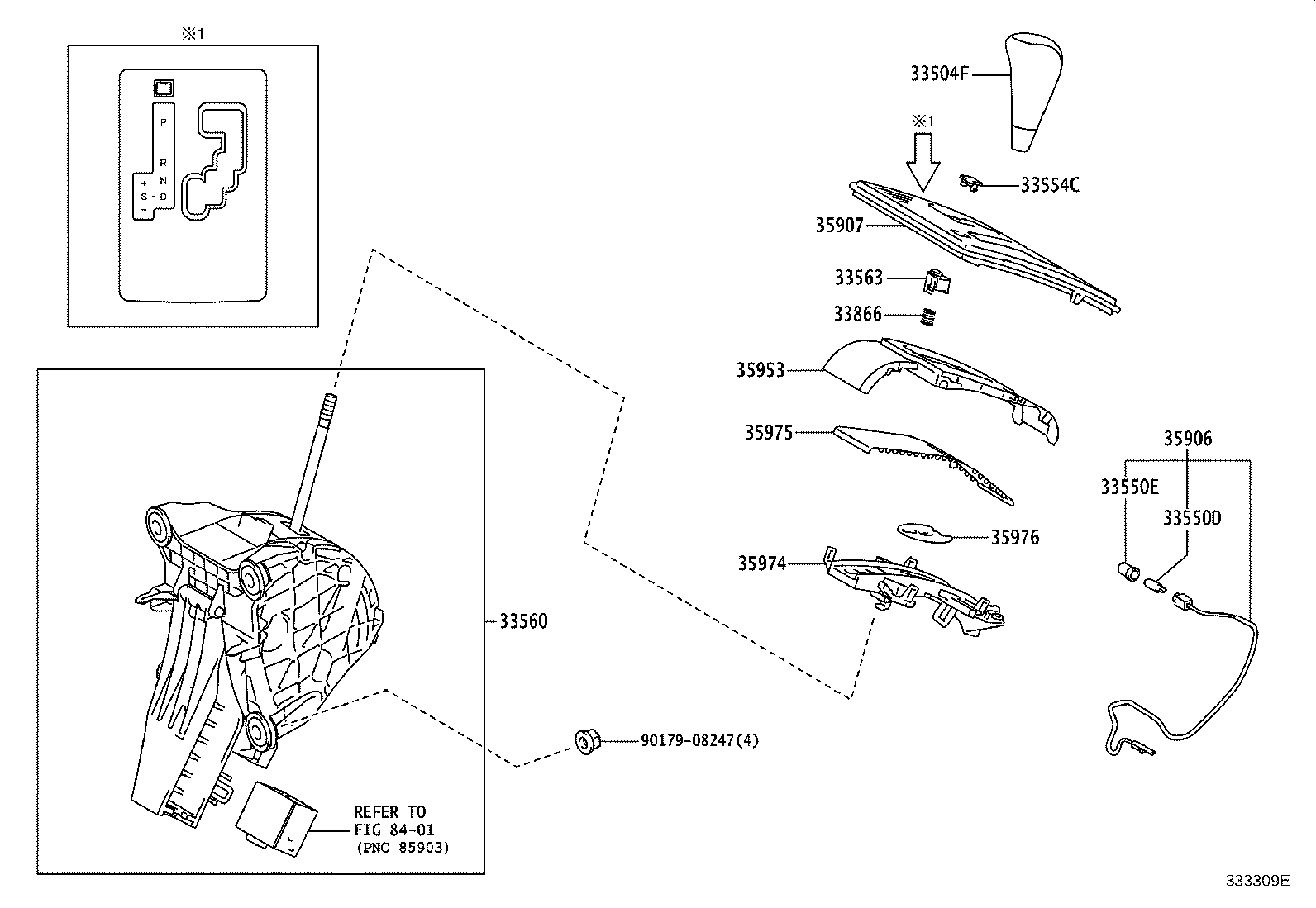

ILLUST NO. 1 OF 2(0703- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12430B0 |
AZE151..ATM DK.GRAY,TRIM1# |
1 | ||
| 33504-12430B0 |
AZE151..ATM..USA SPECIAL EDITION,DK.GRAY,TRIM10 |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
AZE151..ATM 14V 1.4W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-64020 |
AZE151..ATM |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-12140 |
AZE151..ATM |
1 | ||
| 33554-12140 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-12330 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 33560-12330 |
AZE151..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-12290 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 33563-12290 |
AZE151..ATM |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-12050 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 33866-12050 |
AZE151..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12290 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 35906-12290 |
AZE151..ATM |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-12340 |
AZE151..ATM |
1 | ||
| 35907-12030 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-12130 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 35953-12130 |
AZE151..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-12300 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 35974-12300 |
AZE151..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-52090 |
AZE151..ATM |
1 | ||
| 35975-52090 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-52090 |
AZE151..ATM..USA SPECIAL EDITION |
1 | ||
| 35976-52090 |
AZE151..ATM |
1 | ||
| Common parts | ||||
| 90179-08247 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0703- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12D80 |
AZE151..ATM |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
AZE151..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12320 |
AZE151..ATM |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
AZE151..ATM |
3 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
AZE151..ATM |
3 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-12160 |
AZE151..ATM |
1 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3513 | ||||
