AZE151L-FHPNKA (2007)

Toyota Scion Xb

Production Mar 2007 - Mar 2010
Engine 2AZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0703- )

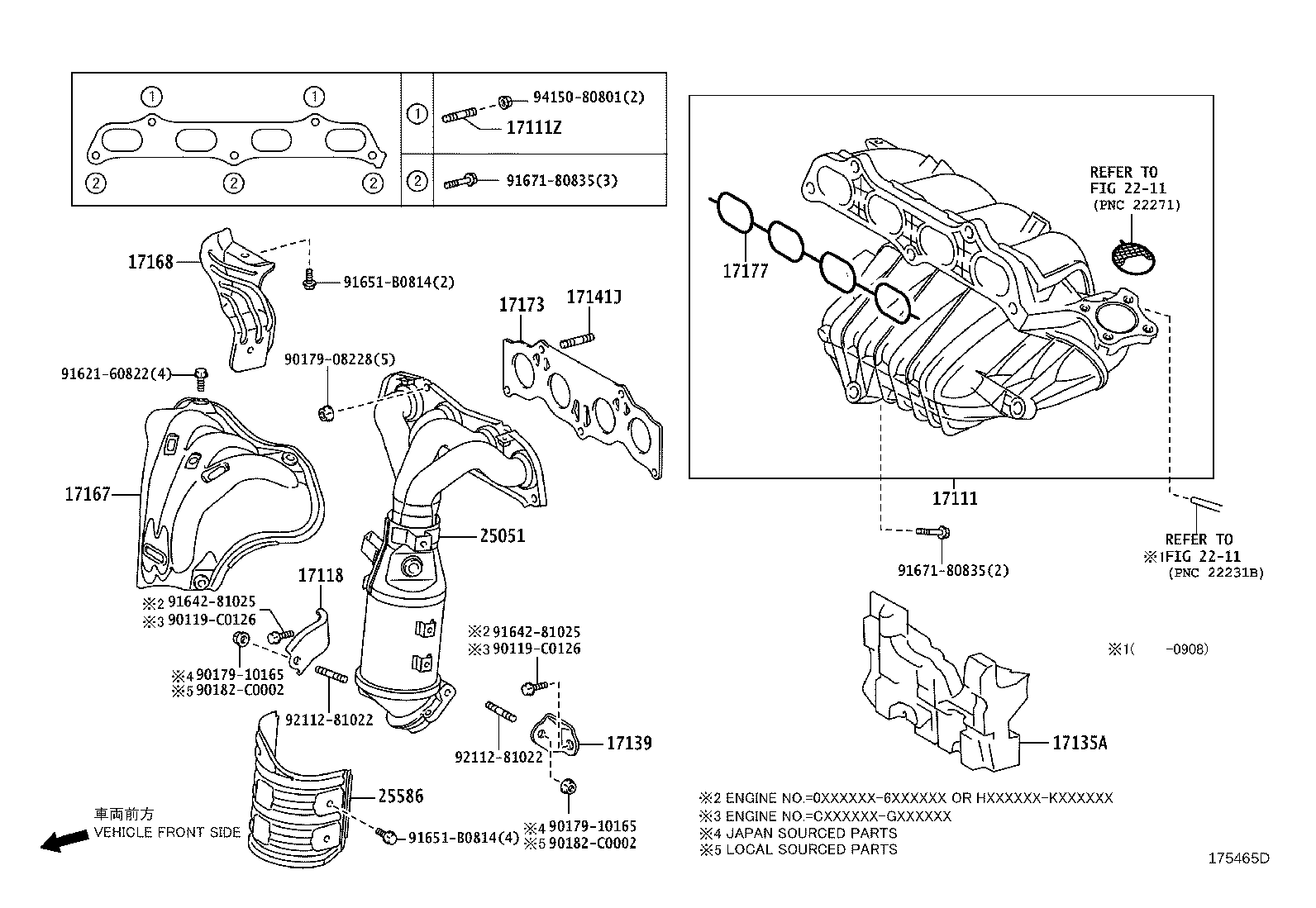

Click highlighted areas on diagram

diagram 17111 17111Z 17118 17135A 17139 17141J 17167 17168 17173 17177 2211 2211 25051 25586 90119C0126 90119C0126 9017908228 9017910165 9017910165 90182C0002 90182C0002 9162160822 9164281025 9164281025 91651B0814 91651B0814 9167180835 9167180835 9211281022 9211281022 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-28170

2AZFE..AZE151

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

2AZFE..AZE151

 2
17118 - STAY, MANIFOLD
17118-28080

2AZFE..AZE151

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-28011

2AZFE..AZE151

 1
17139 - STAY, MANIFOLD, NO.2
17139-28050

2AZFE..AZE151

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08037

2AZFE..AZE151

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-28060

2AZFE..AZE151

(J)

 1
17167-0H050

2AZFE..AZE151

(L)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0H050

2AZFE..AZE151

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-28010

2AZFE..AZE151

(J)

 1
17173-0H040

2AZFE..AZE151

(L)

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-28010

2AZFE..AZE151

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-0H070

2AZFE..AZE151

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-0H050

2AZFE..AZE151

 1
Common parts
90119-C0126
90179-08228
90179-10165
90182-C0002
91621-60822
91642-81025
91651-B0814
91671-80835
92112-81022
94150-80801
Linked diagrams
2211
