AZE151L-FHPNKA (2007)
Toyota Scion Xb

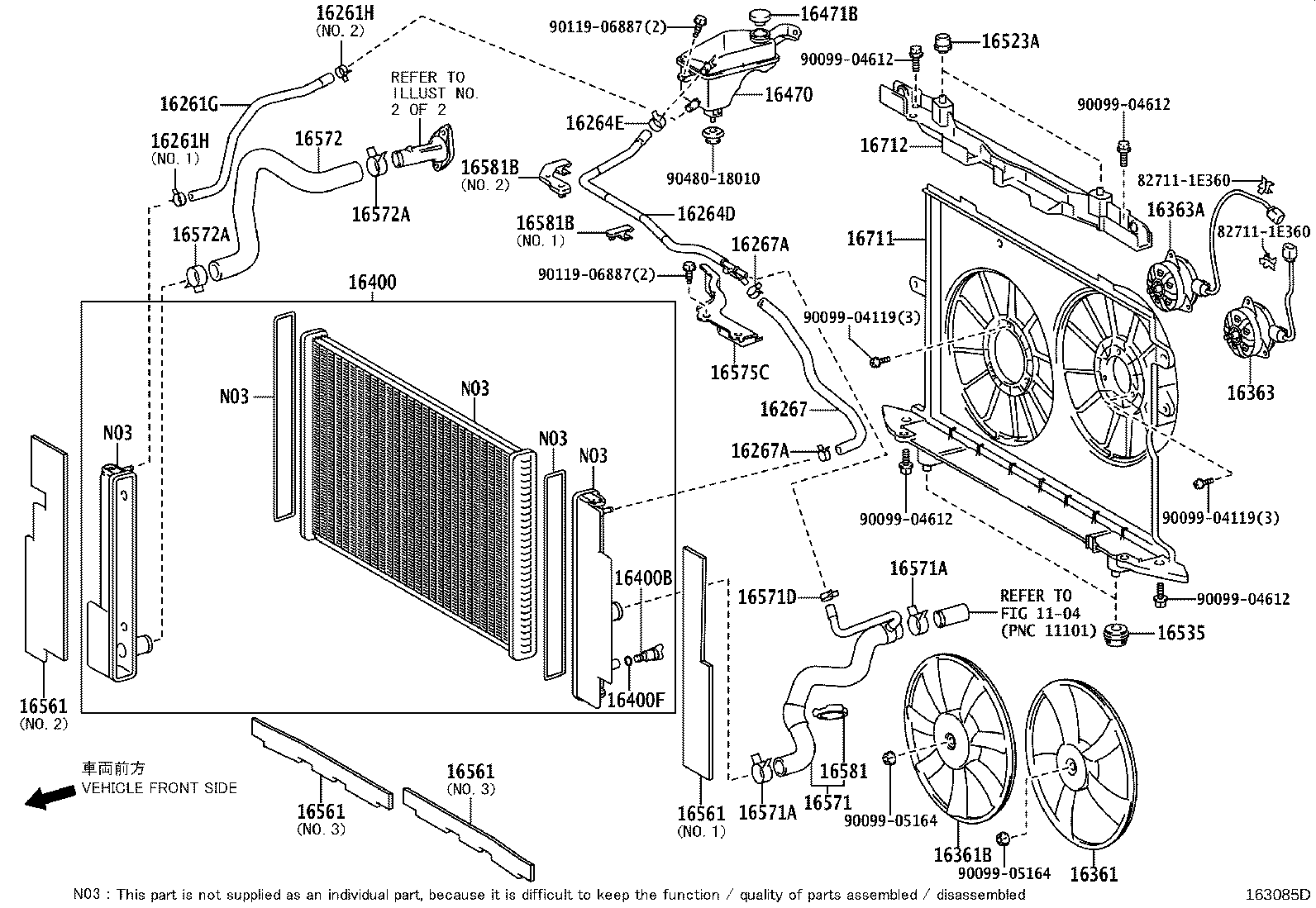

ILLUST NO. 1 OF 2(0703-0803)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-28110 |
2AZFE..AZE151 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-52501 |
2AZFE..AZE151 NO.2 |
1 | ||
| 96136-52201 |
2AZFE..AZE151 NO.1 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-52501 |
2AZFE..AZE151 NO.2 |
1 | ||
| 96136-52201 |
2AZFE..AZE151 NO.1 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21090 |
2AZFE..AZE151 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52101 |
2AZFE..AZE151 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-28110 |
2AZFE..AZE151 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
2AZFE..AZE151 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
2AZFE..AZE151 |
2 | ||
| 16361 - FAN | ||||
| 16361-28350 |
2AZFE..AZE151 |
1 | ||
| 16361-28320 |
2AZFE..AZE151 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28330 |
2AZFE..AZE151 |
1 | ||
| 16361-28360 |
2AZFE..AZE151 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28390 |
2AZFE..AZE151 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-28400 |
2AZFE..AZE151 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28660 |
2AZFE..AZE151..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2AZFE..AZE151 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2AZFE..AZE151 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-22080 |
2AZFE..AZE151 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-28120 |
2AZFE..AZE151 |
1 | ||
| 16475-51010 |
2AZFE..AZE151 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21060 |
2AZFE..AZE151 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74230 |
2AZFE..AZE151 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-28320 |
2AZFE..AZE151..ATM |
1 | ||
| 16571-28290 |
2AZFE..AZE151..ATM |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
2AZFE..AZE151 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
2AZFE..AZE151 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-51901 |
2AZFE..AZE151 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-28240 |
2AZFE..AZE151 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
2AZFE..AZE151 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
2AZFE..AZE151 |
2 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-22020 |
2AZFE..AZE151 |
1 | ||
| 16575-37020 |
2AZFE..AZE151 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-26040 |
2AZFE..AZE151 |
1 | ||
| 16581-28070 |
2AZFE..AZE151 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22120 |
2AZFE..AZE151 NO.2 |
1 | ||
| 16581-22110 |
2AZFE..AZE151 NO.1 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22120 |
2AZFE..AZE151 NO.2 |
1 | ||
| 16581-22110 |
2AZFE..AZE151 NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-28400 |
2AZFE..AZE151 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-28090 |
2AZFE..AZE151..ATM |
1 | ||
| 16712-28090 |
2AZFE..AZE151..ATM |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| 90480-18010 | ||||
| Linked diagrams | ||||
| 1104 | ||||

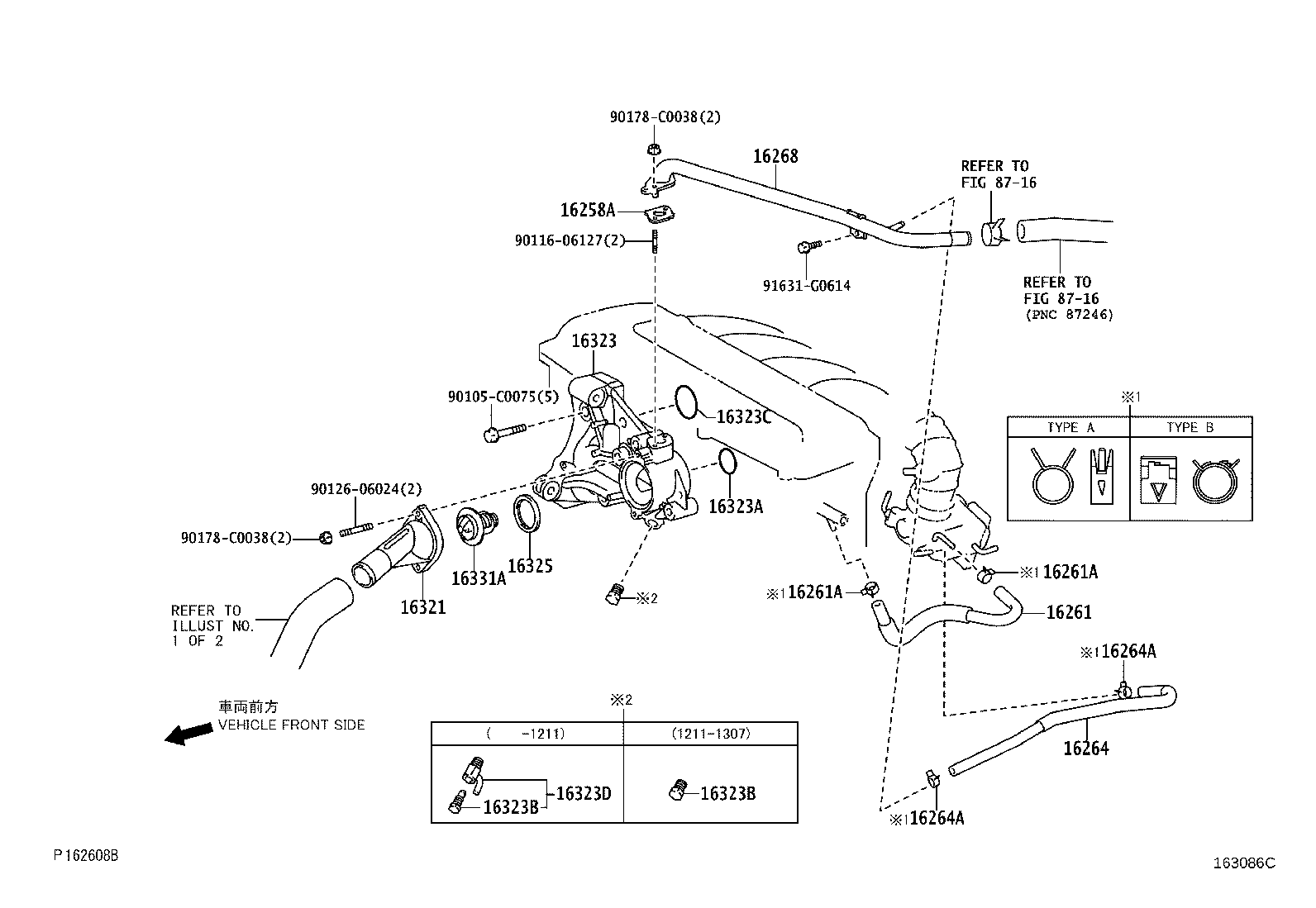

ILLUST NO. 2 OF 2(0703- )
*194
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-28030 |
2AZFE..AZE151 |
1 | ||
| 16258-28030 |
2AZFE..AZE151 (J) |
1 | ||
| 16258-0H040 |
2AZFE..AZE151 (L) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-28100 |
2AZFE..AZE151 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2AZFE..AZE151 TYPE A:REFER ILLUST. |
2 | ||
| 96137-41501 |
2AZFE..AZE151 TYPE B:REFER ILLUST. |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2AZFE..AZE151 TYPE A:REFER ILLUST. |
2 | ||
| 96137-41501 |
2AZFE..AZE151 TYPE B:REFER ILLUST. |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-28120 |
2AZFE..AZE151 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2AZFE..AZE151 TYPE A:REFER ILLUST. |
2 | ||
| 96137-41501 |
2AZFE..AZE151 TYPE B:REFER ILLUST. |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2AZFE..AZE151 TYPE A:REFER ILLUST. |
2 | ||
| 96137-41501 |
2AZFE..AZE151 TYPE B:REFER ILLUST. |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-28070 |
2AZFE..AZE151 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0H060 |
2AZFE..AZE151 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0H010 |
2AZFE..AZE151 |
1 | ||
| 16323A - GASKET(FOR WATER INLET HOUSING) | ||||
| 90301-C0029 |
2AZFE..AZE151 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90910-09087 |
2AZFE..AZE151 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90910-09087 |
2AZFE..AZE151 |
1 | ||
| 16323C - RING, O(FOR WATER INLET HOUSING) | ||||
| 90301-C0030 |
2AZFE..AZE151 |
1 | ||
| 90301-37005 |
2AZFE..AZE151 |
1 | ||
| 16323D - COCK ASSY, DRAIN(FOR WATER INLET HOUSING) | ||||
| 90910-09129 |
2AZFE..AZE151 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0H030 |
2AZFE..AZE151 (L) |
1 | ||
| 16325-28010 |
2AZFE..AZE151 (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-C3001 |
2AZFE..AZE151 *WAX 82-95,(L) |
1 | ||
| 90916-03136 |
2AZFE..AZE151 *WAX 82-95,(J) |
1 | ||
| Common parts | ||||
| 90105-C0075 | ||||
| 90116-06127 | ||||
| 90126-06024 | ||||
| 90178-C0038 | ||||
| 91631-G0614 | ||||
| Linked diagrams | ||||
| 8716 | ||||

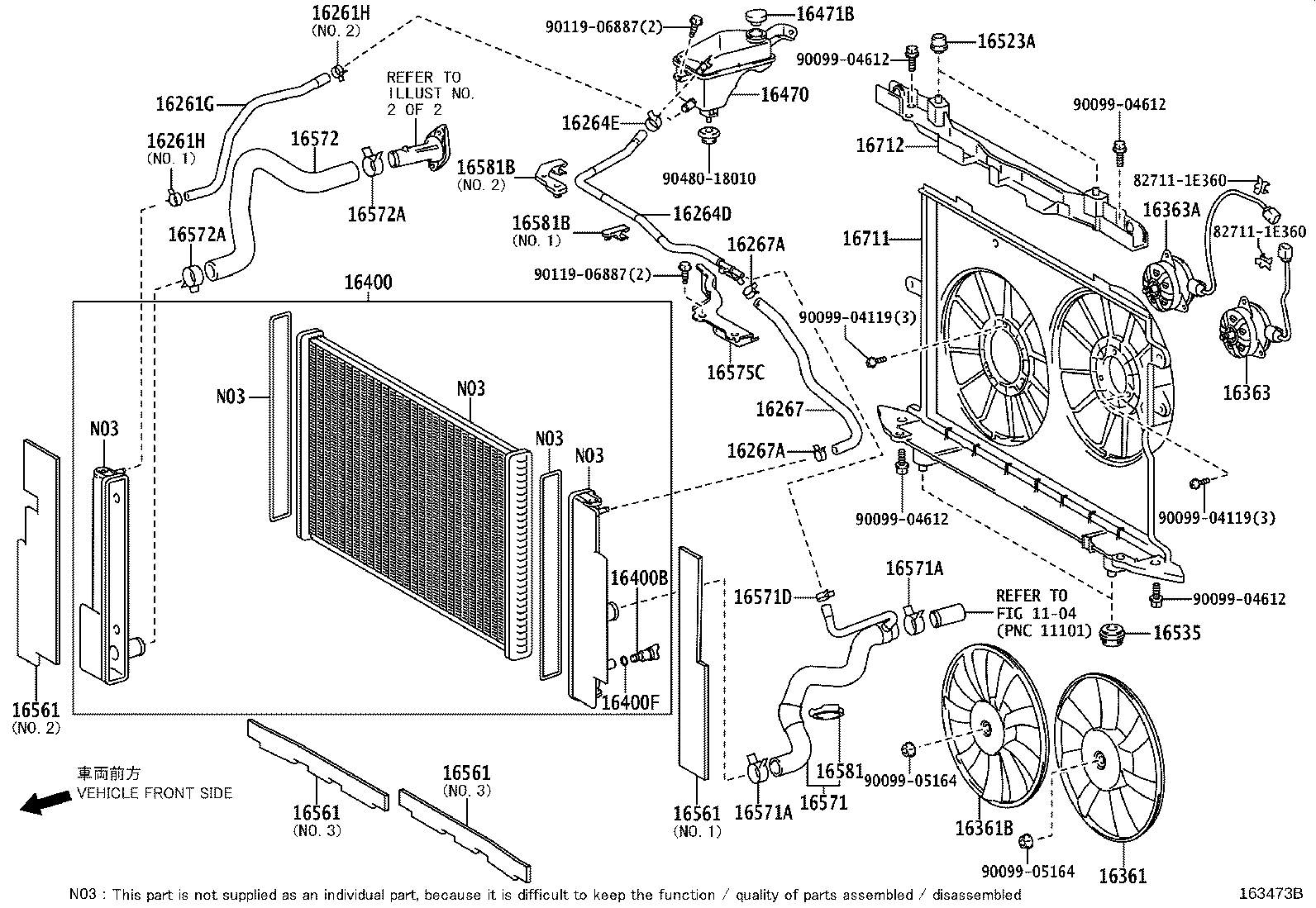

ILLUST NO. 1 OF 2(0803- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-28110 |
2AZFE..AZE151 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-52501 |
2AZFE..AZE151 NO.2 |
1 | ||
| 96136-52201 |
2AZFE..AZE151 NO.1 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-52501 |
2AZFE..AZE151 NO.2 |
1 | ||
| 96136-52201 |
2AZFE..AZE151 NO.1 |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21090 |
2AZFE..AZE151 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52101 |
2AZFE..AZE151 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-28110 |
2AZFE..AZE151 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
2AZFE..AZE151 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
2AZFE..AZE151 |
2 | ||
| 16361 - FAN | ||||
| 16361-28350 |
2AZFE..AZE151 |
1 | ||
| 16361-28320 |
2AZFE..AZE151 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28330 |
2AZFE..AZE151 |
1 | ||
| 16361-28360 |
2AZFE..AZE151 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28390 |
2AZFE..AZE151 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-28400 |
2AZFE..AZE151 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-28660 |
2AZFE..AZE151..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2AZFE..AZE151 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2AZFE..AZE151 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-22080 |
2AZFE..AZE151 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-28120 |
2AZFE..AZE151 |
1 | ||
| 16475-51010 |
2AZFE..AZE151 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21060 |
2AZFE..AZE151 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74230 |
2AZFE..AZE151 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28060 |
2AZFE..AZE151..ATM NO.2 |
1 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16561-28050 |
2AZFE..AZE151..ATM NO.1 |
1 | ||
| 16561-28070 |
2AZFE..AZE151..ATM NO.3 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-28320 |
2AZFE..AZE151..ATM |
1 | ||
| 16571-28290 |
2AZFE..AZE151..ATM |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
2AZFE..AZE151 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96136-44301 |
2AZFE..AZE151 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-51901 |
2AZFE..AZE151 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-28240 |
2AZFE..AZE151 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
2AZFE..AZE151 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96136-44301 |
2AZFE..AZE151 |
2 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-22020 |
2AZFE..AZE151 |
1 | ||
| 16575-37020 |
2AZFE..AZE151 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-26040 |
2AZFE..AZE151 |
1 | ||
| 16581-28070 |
2AZFE..AZE151 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22120 |
2AZFE..AZE151 NO.2 |
1 | ||
| 16581-22110 |
2AZFE..AZE151 NO.1 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-22120 |
2AZFE..AZE151 NO.2 |
1 | ||
| 16581-22110 |
2AZFE..AZE151 NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-28400 |
2AZFE..AZE151 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-28090 |
2AZFE..AZE151..ATM |
1 | ||
| 16712-28090 |
2AZFE..AZE151..ATM |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-04612 | ||||
| 90099-05164 | ||||
| 90119-06887 | ||||
| 90480-18010 | ||||
| Linked diagrams | ||||
| 1104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
