AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0703-0805)

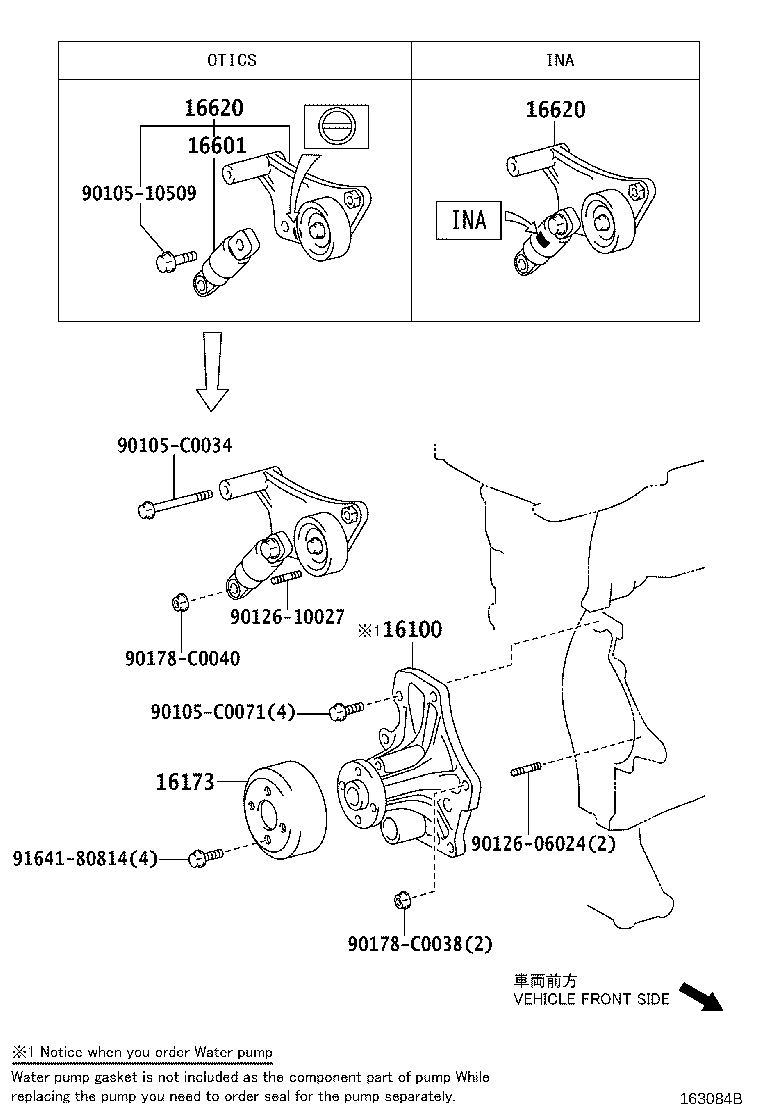

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-0H040 |
2AZFE..AZE151 |
1 | ||
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-0H040 |
2AZFE..AZE151 |
1 | ||
| 16173-28020 |
2AZFE..AZE151 |
1 | ||
| 16601 - TENSIONER SUB-ASSY, V-RIBBED BELT | ||||
| 16601-28021 |
2AZFE..AZE151 OTICS |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0H020 |
2AZFE..AZE151 |
1 | ||
| 16620-0H030 |
2AZFE..AZE151 (L) |
1 | ||
| 16620-28041 |
2AZFE..AZE151 (J) |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0H020 |
2AZFE..AZE151 |
1 | ||
| 16620-0H030 |
2AZFE..AZE151 (L) |
1 | ||
| 16620-28041 |
2AZFE..AZE151 (J) |
1 | ||
| Common parts | ||||
| 90105-10509 | ||||
| 90105-C0034 | ||||
| 90105-C0071 | ||||
| 90126-06024 | ||||
| 90126-10027 | ||||
| 90178-C0038 | ||||
| 90178-C0040 | ||||
| 91641-80814 | ||||
(0805- )
Click highlighted areas on diagram
*194
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-0H040 |
2AZFE..AZE151 |
1 | ||
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-0H040 |
2AZFE..AZE151 |
1 | ||
| 16173-28020 |
2AZFE..AZE151 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0H020 |
2AZFE..AZE151 |
1 | ||
| 16620-0H030 |
2AZFE..AZE151 (L) |
1 | ||
| 16620-28041 |
2AZFE..AZE151 (J) |
1 | ||
| Common parts | ||||
| 90105-C0034 | ||||
| 90105-C0071 | ||||
| 90126-06024 | ||||
| 90126-10027 | ||||
| 90178-C0038 | ||||
| 90178-C0040 | ||||
| 91641-80814 | ||||
