AZE151L-FHPNKA (2007)
Toyota Scion Xb
Production
Mar 2007
-
Mar 2010
Engine
2AZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0703- )

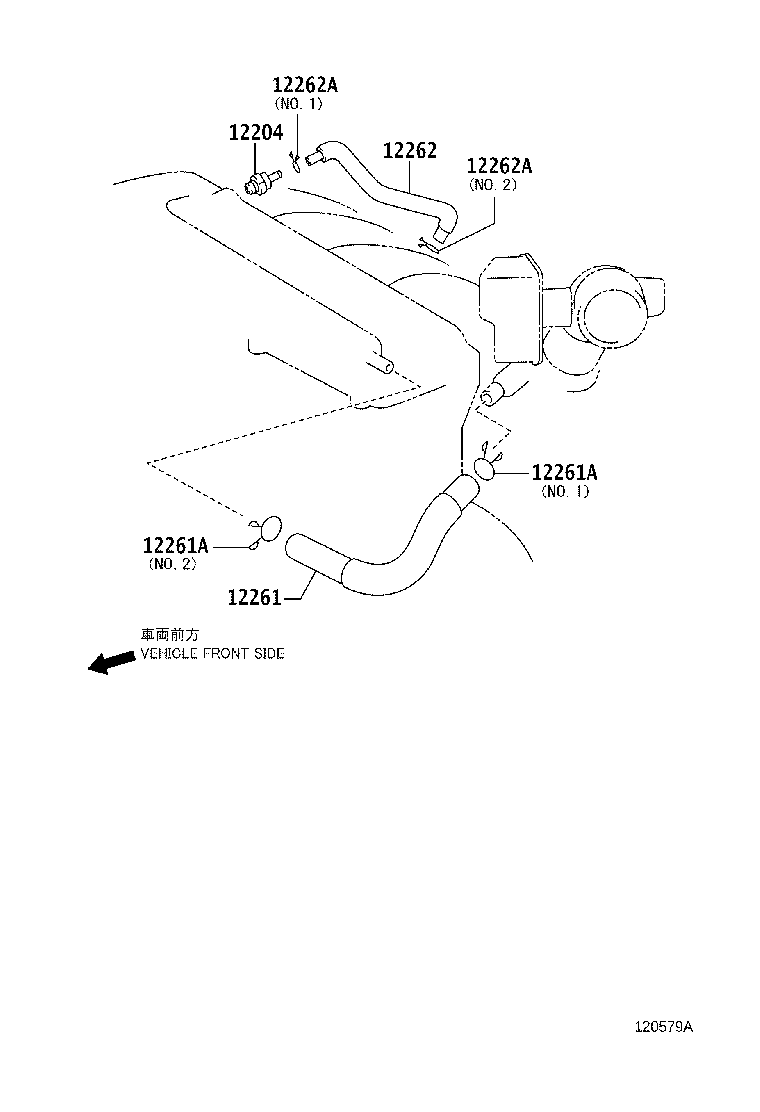

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-0H020 |
2AZFE..AZE151 (L) |
1 | ||
| 12204-28030 |
2AZFE..AZE151 |
1 | ||
| 12204-28030 |
2AZFE..AZE151 (J) |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-28180 |
2AZFE..AZE151 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-21004 |
2AZFE..AZE151 NO.2 |
1 | ||
| 90467-19003 |
2AZFE..AZE151 NO.1 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-21004 |
2AZFE..AZE151 NO.2 |
1 | ||
| 90467-19003 |
2AZFE..AZE151 NO.1 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-28021 |
2AZFE..AZE151 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16035 |
2AZFE..AZE151 NO.2 |
1 | ||
| 90467-13103 |
2AZFE..AZE151 NO.1 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-16035 |
2AZFE..AZE151 NO.2 |
1 | ||
| 90467-13103 |
2AZFE..AZE151 NO.1 |
1 | ||
