AZE151L-FHPNKA (2007)
Toyota Scion Xb

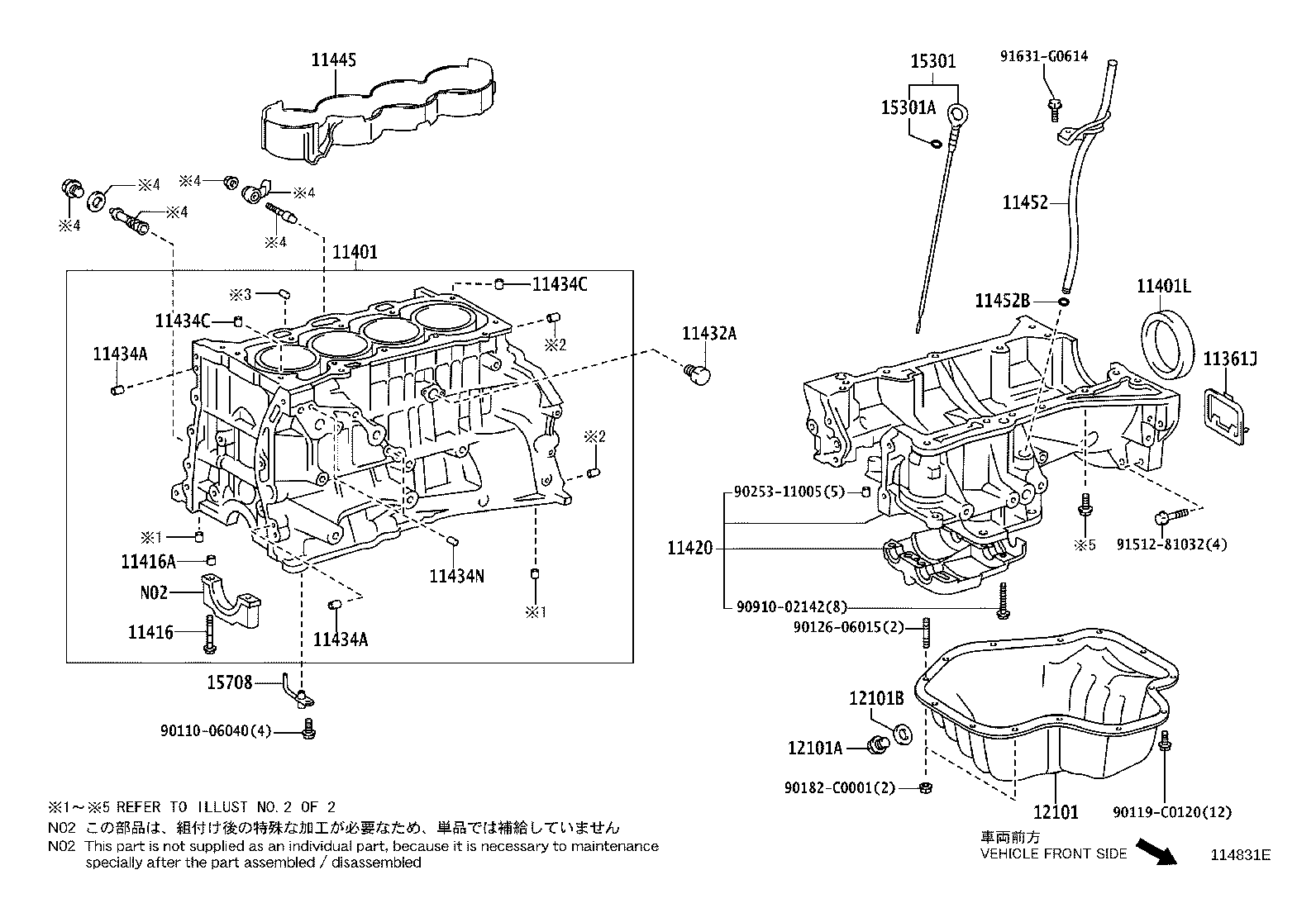

ILLUST NO. 1 OF 2(0703- )
*194
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-28010 |
2AZFE..AZE151 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-09350 |
2AZFE..AZE151 |
1 | ||
| 11410-09220 |
2AZFE..AZE151 |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-C0001 |
2AZFE..AZE151 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02124 |
2AZFE..AZE151 |
10 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-13017 |
2AZFE..AZE151 |
10 | ||
| 11420 - CRANKCASE ASSY, STIFFENING | ||||
| 11420-0H050 |
2AZFE..AZE151 (L) |
1 | ||
| 11420-28020 |
2AZFE..AZE151 (J) |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-52001 |
2AZFE..AZE151 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2AZFE..AZE151 L=18,OD=8 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2AZFE..AZE151 L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-14003 |
2AZFE..AZE151 L=12,OD=14 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-14003 |
2AZFE..AZE151 L=12,OD=14 |
2 | ||
| 11434N - PIN, STRAIGHT(FOR WATER INLET HOUSING) | ||||
| 90250-06003 |
2AZFE..AZE151 |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-0H020 |
2AZFE..AZE151 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-28060 |
2AZFE..AZE151 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
2AZFE..AZE151 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-0H060 |
2AZFE..AZE151 (L) |
1 | ||
| 12101-28060 |
2AZFE..AZE151 (J) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
2AZFE..AZE151 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
2AZFE..AZE151 |
1 | ||
| 90430-C0005 |
2AZFE..AZE151 (L) |
1 | ||
| 90430-12031 |
2AZFE..AZE151 (J) |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-0H050 |
2AZFE..AZE151 (L) |
1 | ||
| 15301-28030 |
2AZFE..AZE151 (J) |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
2AZFE..AZE151 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-28010 |
2AZFE..AZE151 |
4 | ||
| 15708-28011 |
2AZFE..AZE151 |
4 | ||
| Common parts | ||||
| 90110-06040 | ||||
| 90119-C0120 | ||||
| 90126-06015 | ||||
| 90182-C0001 | ||||
| 90253-11005 | ||||
| 90910-02142 | ||||
| 91512-81032 | ||||
| 91631-G0614 | ||||

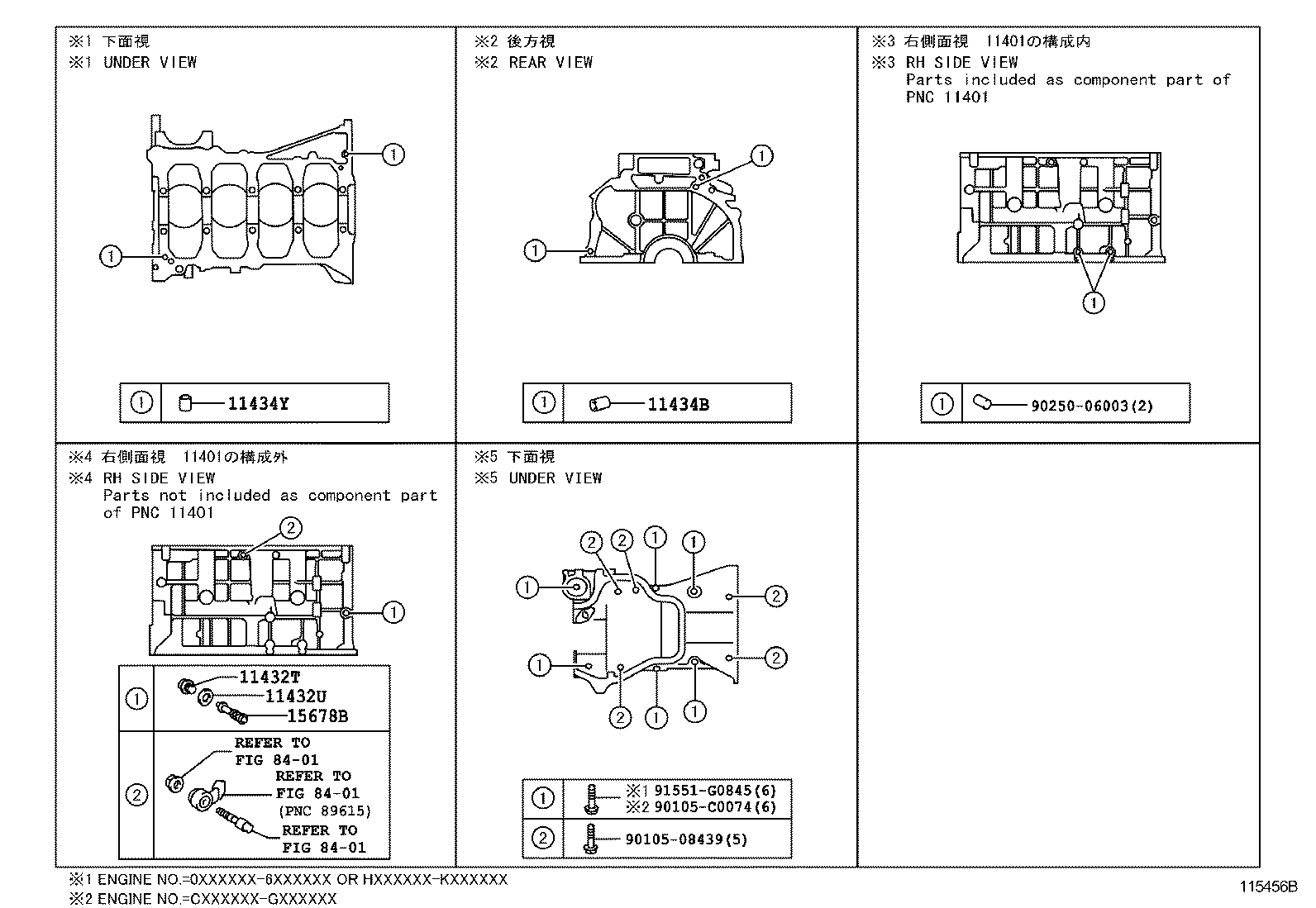

ILLUST NO. 2 OF 2(0703- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK) | ||||
| 90341-14013 |
2AZFE..AZE151 |
1 | ||
| 11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK) | ||||
| 90430-14011 |
2AZFE..AZE151 |
1 | ||
| 90430-C0004 |
2AZFE..AZE151 (L) |
1 | ||
| 90430-14011 |
2AZFE..AZE151 (J) |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
2AZFE..AZE151 L=22,OD=10 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08074 |
2AZFE..AZE151 |
2 | ||
| 15678B - FILTER, OIL CONTROL VALVE | ||||
| 15678-28010 |
2AZFE..AZE151 |
1 | ||
| Common parts | ||||
| 90105-08439 | ||||
| 90105-C0074 | ||||
| 90250-06003 | ||||
| 91551-G0845 | ||||
| Linked diagrams | ||||
| 8401 | ||||
