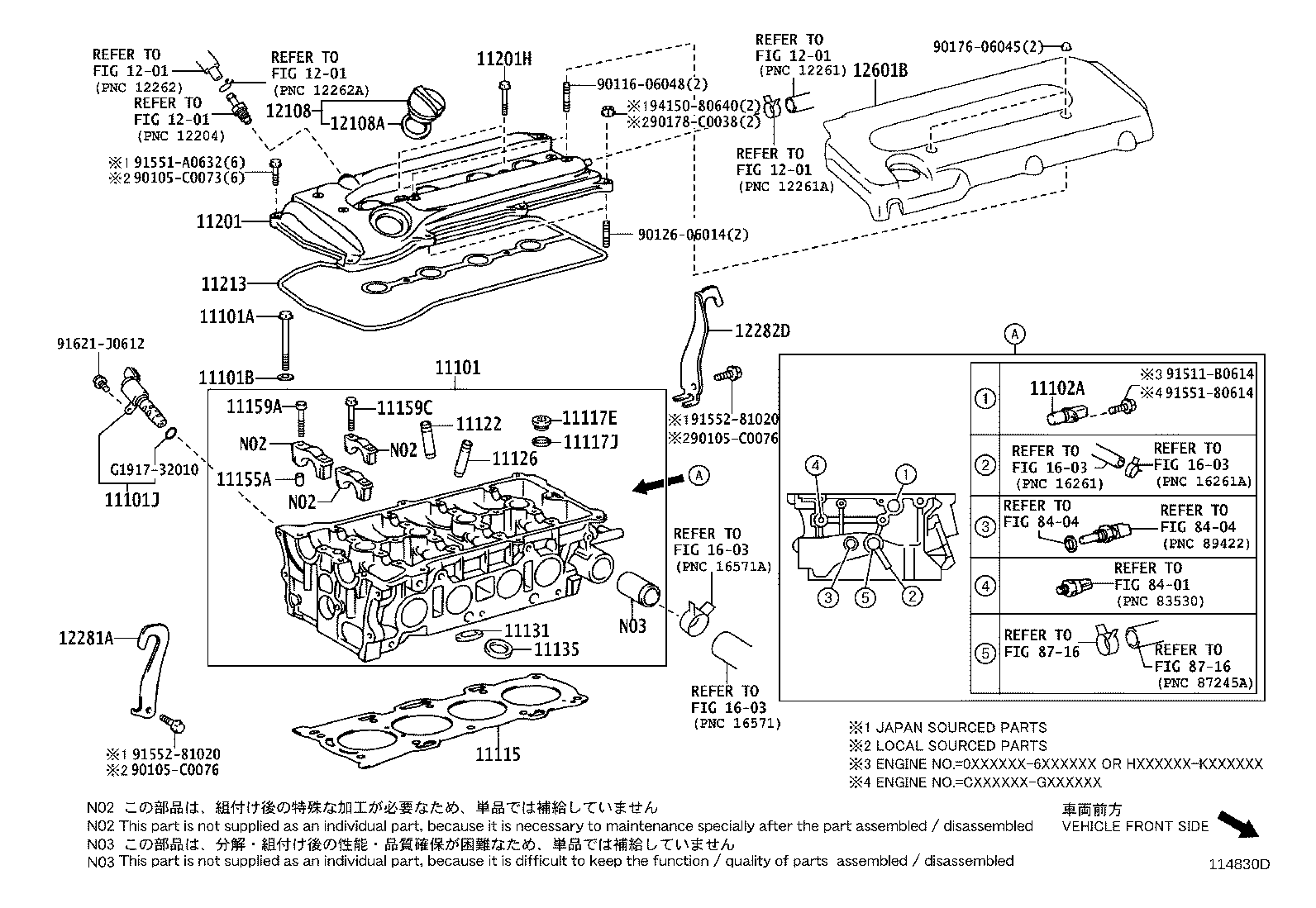

AZE151L-FHPNKA (2007)
Toyota Scion Xb
(0703- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0H040 |
2AZFE..AZE151 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02162 |
2AZFE..AZE151 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2AZFE..AZE151 |
10 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-28020 |
2AZFE..AZE151 |
1 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05026 |
2AZFE..AZE151 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-28040 |
2AZFE..AZE151 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
2AZFE..AZE151 |
2 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
2AZFE..AZE151 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-28010 |
2AZFE..AZE151 STD |
8 | ||
| 11123-28010 |
2AZFE..AZE151 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-20020 |
2AZFE..AZE151 O/S 0.05 |
8 | ||
| 11126-20020 |
2AZFE..AZE151 STD |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-28030 |
2AZFE..AZE151 STD,(J) |
8 | ||
| 11132-28030 |
2AZFE..AZE151 O/S 0.03 |
8 | ||
| 11131-0H010 |
2AZFE..AZE151 STD,(L) |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-28050 |
2AZFE..AZE151 STD,(J) |
8 | ||
| 11136-28050 |
2AZFE..AZE151 O/S 0.03 |
8 | ||
| 11135-0H010 |
2AZFE..AZE151 STD,(L) |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2AZFE..AZE151 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-C0069 |
2AZFE..AZE151 |
4 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-C0121 |
2AZFE..AZE151 |
16 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-0H060 |
2AZFE..AZE151 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90119-C0122 |
2AZFE..AZE151 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0H040 |
2AZFE..AZE151 (L) |
1 | ||
| 11213-28021 |
2AZFE..AZE151 (J) |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-28031 |
2AZFE..AZE151 |
1 | ||
| 12180-38020 |
2AZFE..AZE151 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
2AZFE..AZE151 |
1 | ||
| 90430-37004 |
2AZFE..AZE151 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0H010 |
2AZFE..AZE151 (L) |
1 | ||
| 12281-28010 |
2AZFE..AZE151 (J) |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0H010 |
2AZFE..AZE151 (L) |
1 | ||
| 12282-28010 |
2AZFE..AZE151 (J) |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-28190 |
2AZFE..AZE151 |
1 | ||
| Common parts | ||||
| 90105-C0073 | ||||
| 90105-C0076 | ||||
| 90116-06048 | ||||
| 90126-06014 | ||||
| 90176-06045 | ||||
| 90178-C0038 | ||||
| 91511-B0614 | ||||
| 91551-80614 | ||||
| 91551-A0632 | ||||
| 91552-81020 | ||||
| 91621-J0612 | ||||
| 94150-80640 | ||||
| G1917-32010 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 8401 | ||||
| 8404 | ||||
| 8716 | ||||
