AZE151L-FHMNKA (2010)

Toyota Scion Xb

Production Mar 2010 - Dec 2015
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1003- )

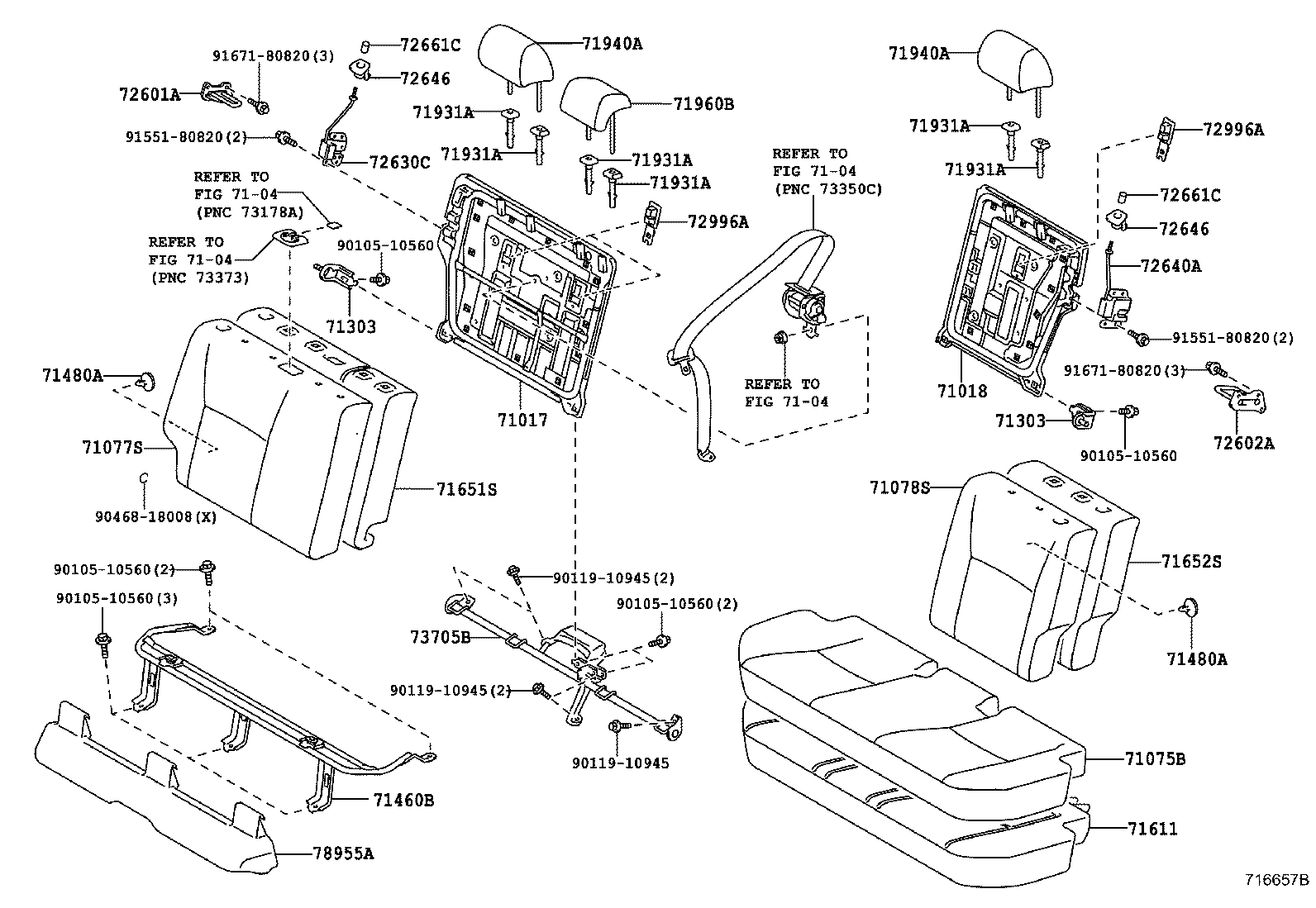

Click highlighted areas on diagram

diagram 71017 71018 7104 7104 7104 7104 71075B 71077S 71078S 71303 71303 71460B 71480A 71480A 71611 71651S 71652S 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72601A 72602A 72630C 72640A 72646 72646 72661C 72661C 72996A 72996A 73705B 78955A 9010510560 9010510560 9010510560 9010510560 9010510560 9011910945 9011910945 9011910945 9046818008 9155180820 9155180820 9167180820 9167180820
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-12890

AZE151

 1
71017-12890

AZE151

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-12440

AZE151

 1
71018-12440

AZE151

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-12M40B0

AZE151

DK.GRAY,TRIM1#

 1
71075-12K30B4

AZE151..USA

LIMITED PACKAGE-SPECIAL EDITION,DK.GRAY/BLUE,TRIM1#

 1
71075-12K70B2

AZE151

DK.GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-12Q10B0

AZE151..USA

LIMITED PACKAGE-SPECIAL EDITION,DK.GRAY/BLUE,TRIM1#

 1
71077-12N80B2

AZE151

DK.GRAY,TRIM1#

 1
71077-12N80B1

AZE151

DK.GRAY,TRIM1#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-12M10B2

AZE151

DK.GRAY,TRIM1#

 1
71078-12M10B3

AZE151

DK.GRAY,TRIM1#

 1
71078-12J80B0

AZE151..USA

LIMITED PACKAGE-SPECIAL EDITION,DK.GRAY/BLUE,TRIM1#

 1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12190

AZE151

 2
71303-12190

AZE151

 2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12190

AZE151

 2
71303-12190

AZE151

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71407-12170B0

AZE151

DK.GRAY,TRIM1#

 1
71407-12180B1

AZE151

DK.GRAY,TRIM1#

 1
71480A - CLIP (FOR REAR SEAT BACK)
90467-09050

AZE151

 18
90467-09050

AZE151

 19
71480A - CLIP (FOR REAR SEAT BACK)
90467-09050

AZE151

 18
90467-09050

AZE151

 19
71611 - PAD, REAR SEAT CUSHION
71503-12320

AZE151

 1
71503-12270

AZE151

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-12880

AZE151

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-12A10

AZE151

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71931-47010B2

AZE151

W/O(LOCK),DK.GRAY,TRIM1#

 3
71930-44020B0

AZE151

W(LOCK),DK.GRAY,TRIM1#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-12A80B0

AZE151

DK.GRAY,TRIM1#

 2
71940-12B40B2

AZE151

DK.GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-12A80B0

AZE151

DK.GRAY,TRIM1#

 2
71940-12B40B2

AZE151

DK.GRAY,TRIM1#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-12660B2

AZE151

DK.GRAY,TRIM1#

 1
71960-12540B0

AZE151

DK.GRAY,TRIM1#

 1
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-12250

AZE151

 1
72601-12250

AZE151

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72602-12080

AZE151

 1
72602-12080

AZE151

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-12341

AZE151

 1
72630-12340

AZE151

 1
72630-12340

AZE151

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72640-12310

AZE151

 1
72640-12311

AZE151

 1
72640-12310

AZE151

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-12090B0

AZE151

DK.GRAY,TRIM1#

 2
72646-12090B0

AZE151

DK.GRAY,TRIM1#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-12090B0

AZE151

DK.GRAY,TRIM1#

 2
72646-12090B0

AZE151

DK.GRAY,TRIM1#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-35010B1

AZE151

DK.GRAY,TRIM1#

 2
72661-35010B1

AZE151

DK.GRAY,TRIM1#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-35010B1

AZE151

DK.GRAY,TRIM1#

 2
72661-35010B1

AZE151

DK.GRAY,TRIM1#

 2
72996A - COVER, REAR SEAT BACK
72996-12320B0

AZE151

DK.GRAY,TRIM1#

 3
72996-12320B0

AZE151

DK.GRAY,TRIM1#

 3
72996A - COVER, REAR SEAT BACK
72996-12320B0

AZE151

DK.GRAY,TRIM1#

 3
72996-12320B0

AZE151

DK.GRAY,TRIM1#

 3
73705B - BRACKET SUB-ASSY, CROSS ANCHOR
73705-12100

AZE151

 1
73705-12130

AZE151

 1
78955A - COVER, REAR SEAT UNDER TRAY
78955-12040B0

AZE151

DK.GRAY,TRIM1#

 1
Common parts
90105-10560
90119-10945
90468-18008
91551-80820
91671-80820
Linked diagrams
7104
