Toyota Scion xb AZE151 CONSOLE BOX & BRACKET

Manufacturers Home
Toyota
US
SCION XB
AZE151L-FHMNKA (2010)
5806 - CONSOLE BOX & BRACKET

AZE151L-FHMNKA (2010)

Toyota Scion Xb

Production Mar 2010 - Dec 2015

Engine 2AZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

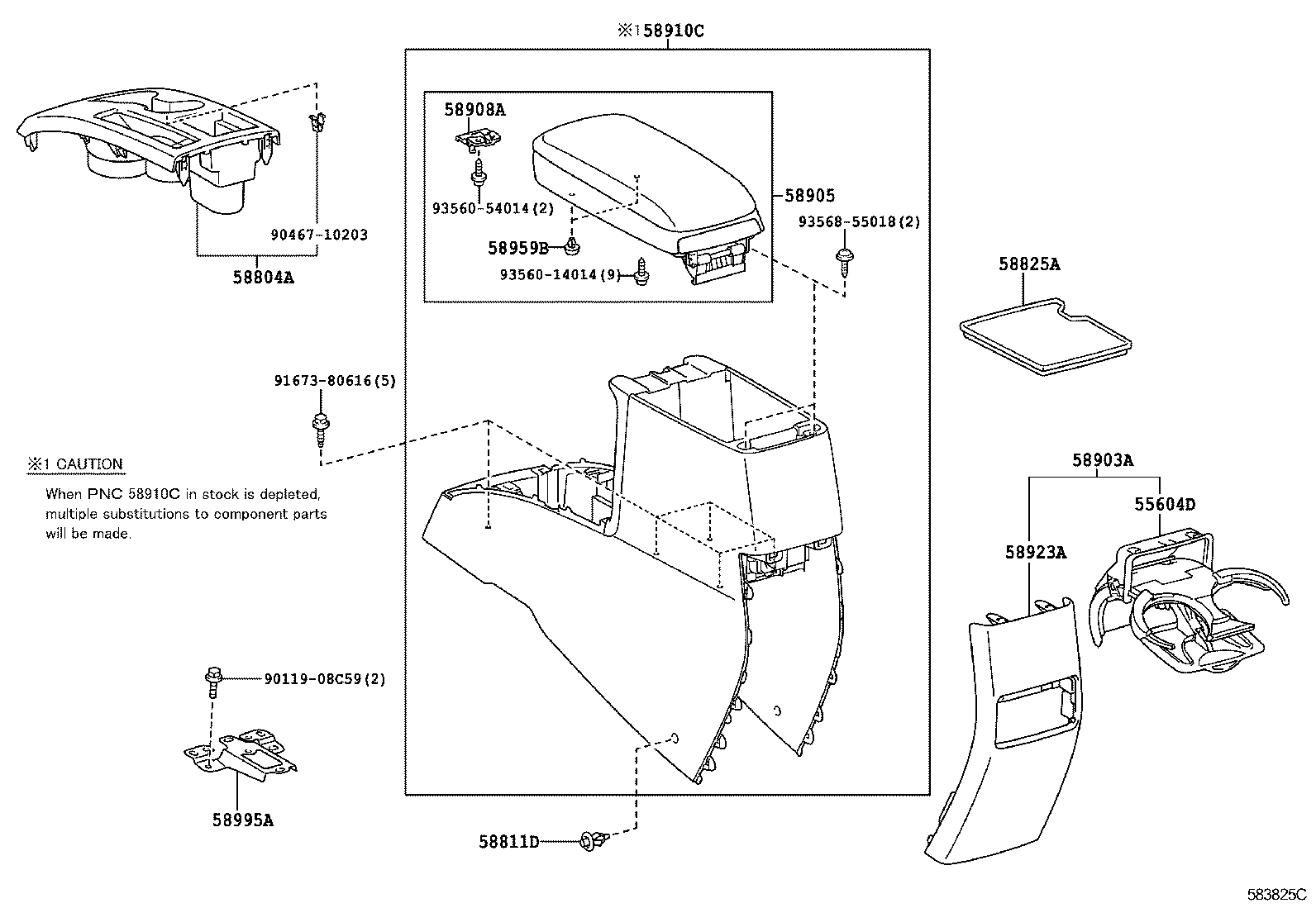

(1003-1107)

Click highlighted areas on diagram

Part #	Description	Period	Qty
55604D - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-12070B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
55604-12070B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-12080B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58804-12080B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
58811D - CLIP(FOR CONSOLE BOX)
90467-07076B7	AZE151 DK.GRAY	03/2010 - 08/2011	2
90467-07076B7	AZE151 DK.GRAY	03/2007 - 03/2010	2
90467-07076C0	AZE151 BLACK	08/2011 - 12/2015	2
58825A - POCKET, CONSOLE BOX
58825-12030B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-12050B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12700B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58905-12821B1	AZE151 DARK GRAY,TRIM1#	08/2012 - 12/2015	1
58905-12820B1	AZE151 DARK GRAY,TRIM1#	03/2010 - 07/2012	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030	AZE151	03/2007 - 03/2010	1
58908-12050	AZE151	06/2010 - 05/2011	1
58908-32021	AZE151	03/2010 - 05/2010	1
58908-12080	AZE151	05/2011 - 12/2999	1
58910C - BOX ASSY, CONSOLE, REAR
58910-12820B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 07/2011	1
58910-12680B0	AZE151 DK.GRAY,TRIM1#	08/2011 - 12/2015	1
58910-12560B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58923A - PANEL, CONSOLE REAR END
58923-12120B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
58923-12080B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060	AZE151	03/2010 - 12/2999	2
58959-60060	AZE151	03/2007 - 03/2010	2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12110	AZE151	03/2007 - 03/2010	1
58995-12110	AZE151	03/2010 - 12/2999	1
Common parts
90119-08C59
90467-10203
91673-80616
93560-14014
93560-54014
93568-55018

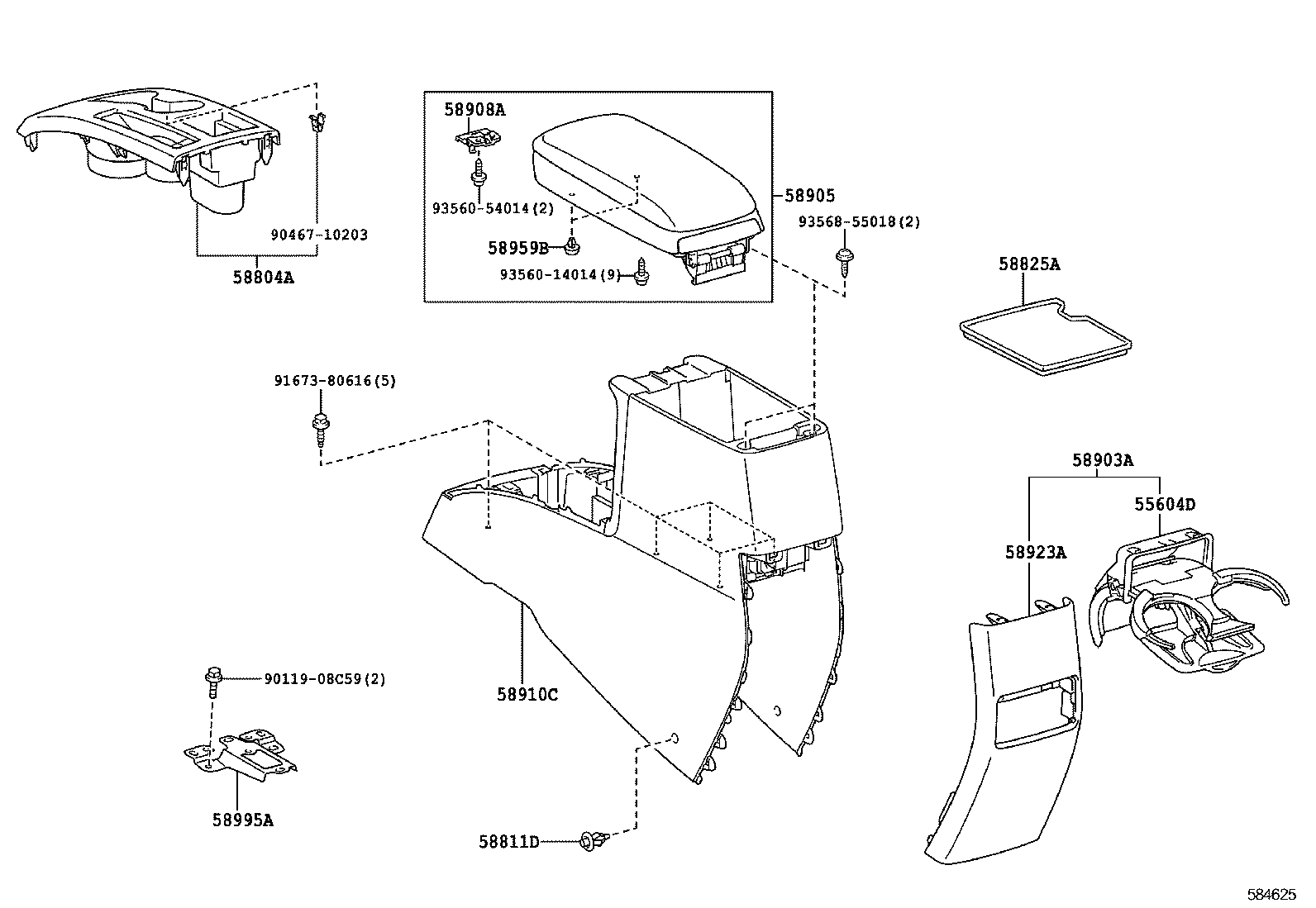

(1108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
55604D - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-12070B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
55604-12070B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-12080B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58804-12080B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
58811D - CLIP(FOR CONSOLE BOX)
90467-07076B7	AZE151 DK.GRAY	03/2010 - 08/2011	2
90467-07076B7	AZE151 DK.GRAY	03/2007 - 03/2010	2
90467-07076C0	AZE151 BLACK	08/2011 - 12/2015	2
58825A - POCKET, CONSOLE BOX
58825-12030B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-12050B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12700B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58905-12821B1	AZE151 DARK GRAY,TRIM1#	08/2012 - 12/2015	1
58905-12820B1	AZE151 DARK GRAY,TRIM1#	03/2010 - 07/2012	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-33030	AZE151	03/2007 - 03/2010	1
58908-12050	AZE151	06/2010 - 05/2011	1
58908-32021	AZE151	03/2010 - 05/2010	1
58908-12080	AZE151	05/2011 - 12/2999	1
58910C - BOX ASSY, CONSOLE, REAR
58910-12820B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 07/2011	1
58910-12680B0	AZE151 DK.GRAY,TRIM1#	08/2011 - 12/2015	1
58910-12560B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58923A - PANEL, CONSOLE REAR END
58923-12120B0	AZE151 DK.GRAY,TRIM1#	03/2010 - 12/2015	1
58923-12080B0	AZE151 DK.GRAY,TRIM1#	03/2007 - 03/2010	1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060	AZE151	03/2010 - 12/2999	2
58959-60060	AZE151	03/2007 - 03/2010	2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12110	AZE151	03/2007 - 03/2010	1
58995-12110	AZE151	03/2010 - 12/2999	1
Common parts
90119-08C59
90467-10203
91673-80616
93560-14014
93560-54014
93568-55018

AZE151L-FHMNKA (2010)

(1003-1107)

(1108- )
