AZE151L-FHMNKA (2010)

Toyota Scion Xb

Production Mar 2010 - Dec 2015
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

Click highlighted areas on diagram

*195

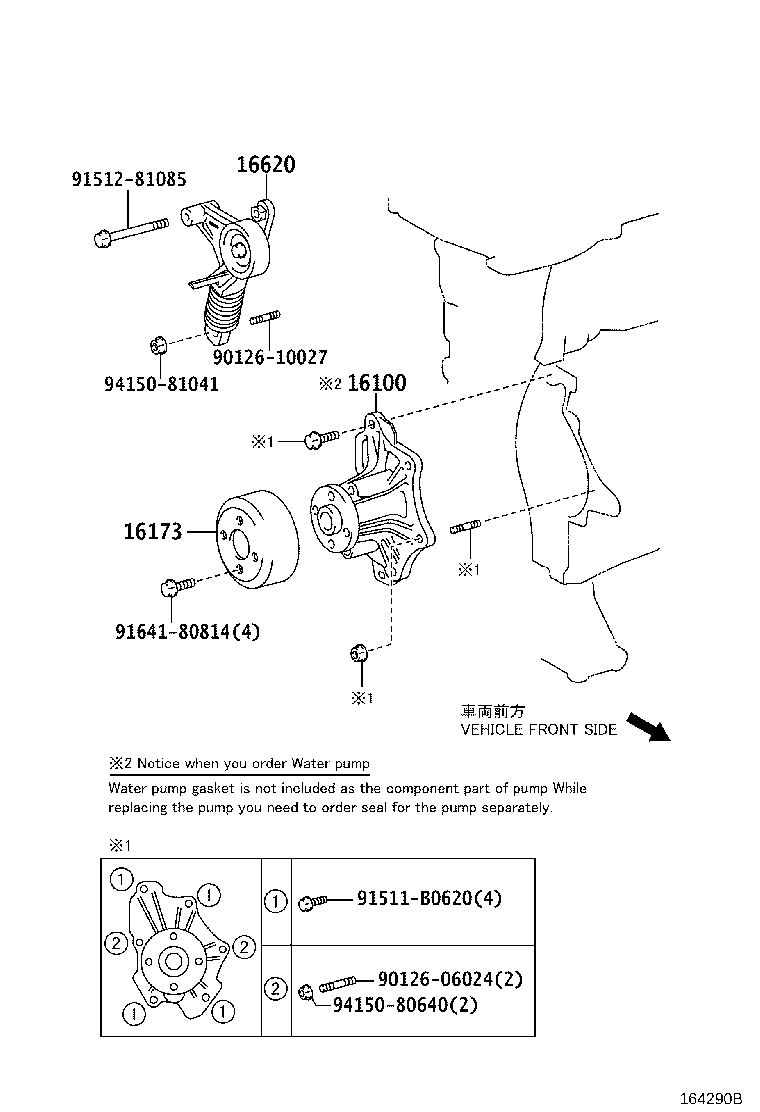

diagram 16100 16173 16620 9012606024 9012610027 91511B0620 9151281085 9164180814 9415080640 9415081041
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-28041

2AZFE..AZE151

2AZ-FE,*195

 1
16100-0H040

2AZFE..AZE151

 1
16100-0H040

2AZFE..AZE151

*194

 1
16173 - PULLEY, WATER PUMP
16173-0H040

2AZFE..AZE151

*194

 1
16173-28020

2AZFE..AZE151

 1
16173-28020

2AZFE..AZE151

2AZ-FE,*195

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0H020

2AZFE..AZE151

2AZ-FE,*195

 1
16620-0H030

2AZFE..AZE151

(L)

 1
16620-0H020

2AZFE..AZE151

*194

 1
16620-28041

2AZFE..AZE151

(J)

 1
16620-0H021

2AZFE..AZE151

*194

 1
16620-0H021

2AZFE..AZE151

2AZ-FE,*195

 1
Common parts
90126-06024
90126-10027
91511-B0620
91512-81085
91641-80814
94150-80640
94150-81041
