AZE151L-FHMNKA (2010)

Toyota Scion Xb

Production Mar 2010 - Dec 2015
Engine 2AZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

Click highlighted areas on diagram

*195

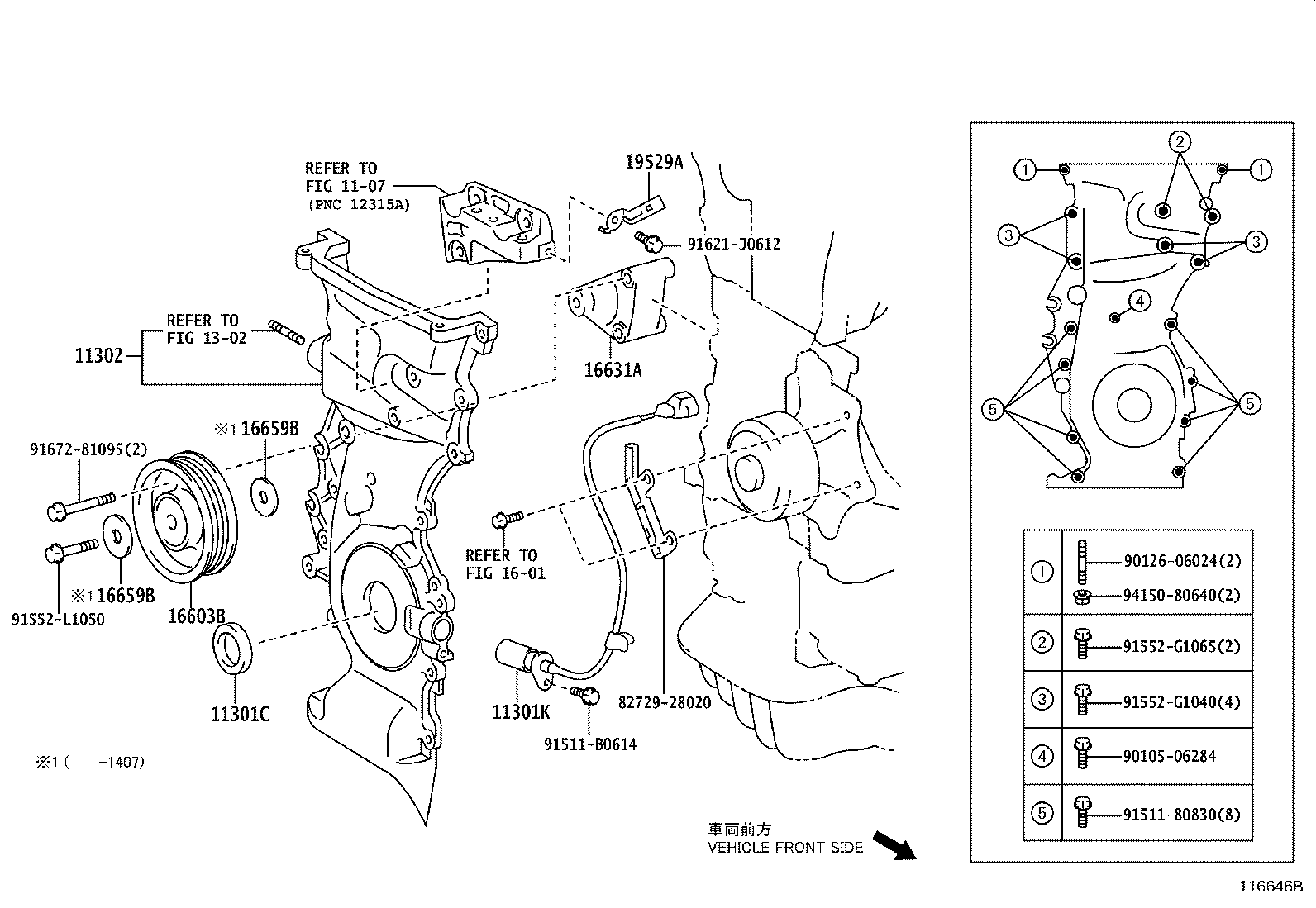

diagram 1107 11301C 11301K 11302 1302 1601 16603B 16631A 16659B 16659B 19529A 8272928020 9010506284 9012606024 9151180830 91511B0614 91552G1040 91552G1065 91552L1050 91621J0612 9167281095 9415080640
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-C0025

2AZFE..AZE151

*194

 1
90311-T0024

2AZFE..AZE151

*194

 1
90311-38089

2AZFE..AZE151

2AZ-FE,*195

 1
90311-T0024

2AZFE..AZE151

 1
90311-38098

2AZFE..AZE151

2AZ-FE,*195

 1
11301K - SENSOR, CRANK POSITION
90919-05067

2AZFE..AZE151

*194

 1
90919-05047

2AZFE..AZE151

2AZ-FE,*195

 1
90919-05067

2AZFE..AZE151

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-28090

2AZFE..AZE151

(J)

 1
11310-0H070

2AZFE..AZE151

(L),*194

 1
11310-28090

2AZFE..AZE151

(J),*194

 1
11310-0H070

2AZFE..AZE151

(L)

 1
11310-28090

2AZFE..AZE151

2AZ-FE,*195

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-28020

2AZFE..AZE151

*194

 1
16603-28020

2AZFE..AZE151

 1
16603-28050

2AZFE..AZE151

2AZ-FE,*195

 1
16603-28050

2AZFE..AZE151

*194

 1
16603-28020

2AZFE..AZE151

2AZ-FE,*195

 1
16631A - BRACKET, IDLER PULLEY
16631-28031

2AZFE..AZE151

2AZ-FE,*195

 1
16631-28031

2AZFE..AZE151

*194

 1
16631-28030

2AZFE..AZE151

 1
16659B - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

2AZFE..AZE151

 1
16659-31011

2AZFE..AZE151

2AZ-FE,*195

 2
16659-31011

2AZFE..AZE151

*194

 2
16659B - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

2AZFE..AZE151

 1
16659-31011

2AZFE..AZE151

2AZ-FE,*195

 2
16659-31011

2AZFE..AZE151

*194

 2
19529A - CLAMP
19529-28050

2AZFE..AZE151

*194

 1
19529-28030

2AZFE..AZE151

2AZ-FE,*195

 1
19529-28050

2AZFE..AZE151

 1
Common parts
82729-28020
90105-06284
90126-06024
91511-80830
91511-B0614
91552-G1040
91552-G1065
91552-L1050
91621-J0612
91672-81095
94150-80640
