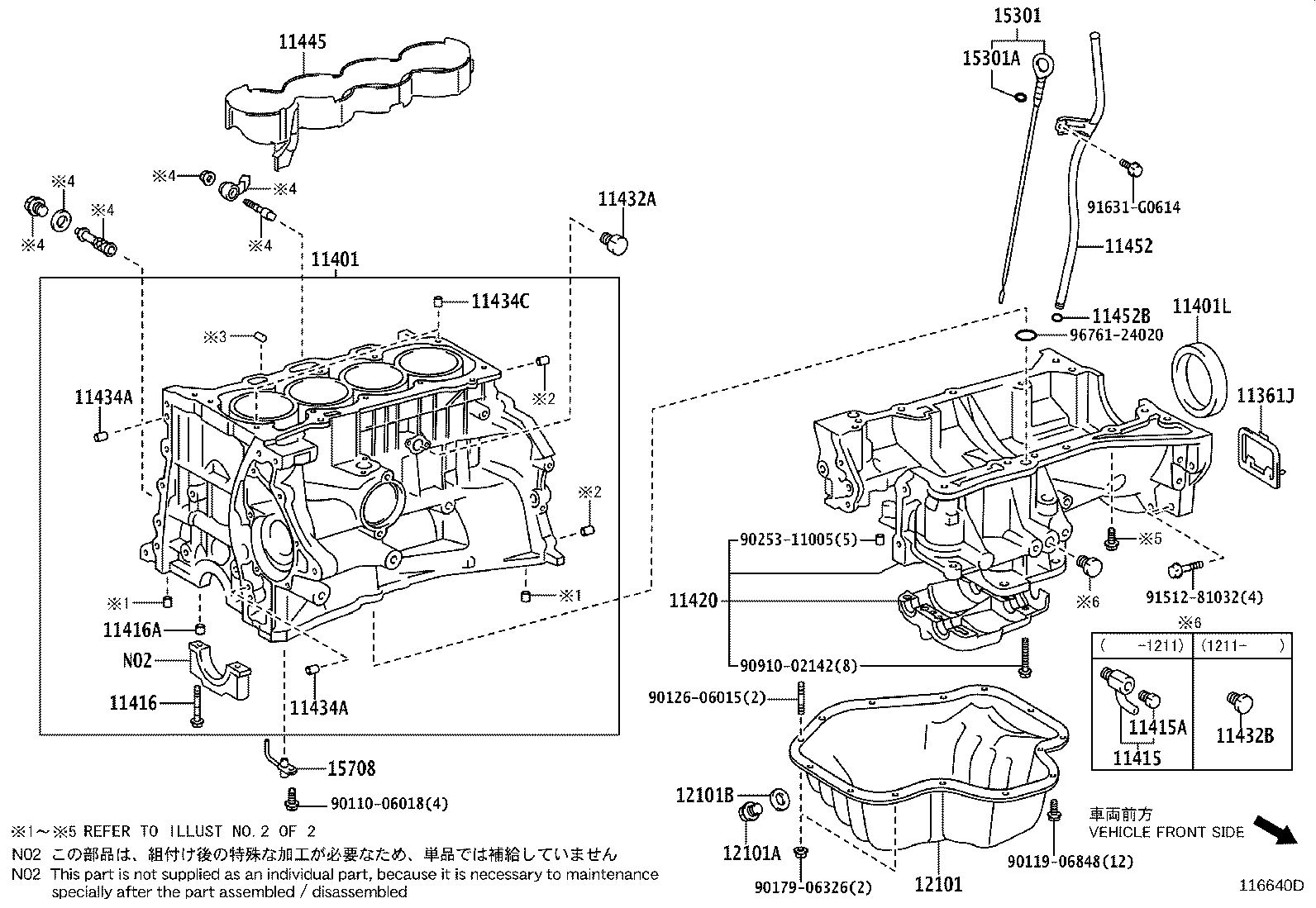

Toyota Scion xb AZE151 CYLINDER BLOCK

Part #	Description	Period	Qty
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-28010	2AZFE..AZE151	03/2010 - 12/2999	1
11361-28010	2AZFE..AZE151	03/2007 - 03/2010	1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-09350	2AZFE..AZE151..USA 2AZ-FE,*194	03/2010 - 11/2013	1
11410-09351	2AZFE..AZE151..USA 2AZ-FE,*194	11/2013 - 12/2015	1
11410-09350	2AZFE..AZE151..USA *194	03/2010 - 11/2013	1
11410-29346	2AZFE..AZE151 2AZ-FE,*195	12/2012 - 12/2015	1
11410-09220	2AZFE..AZE151	03/2007 - 08/2007	1
11410-09351	2AZFE..AZE151..USA *194	11/2013 - 12/2015	1
11410-29345	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2012	1
11401L - SEAL, ENGINE REAR OIL
90311-C0001	2AZFE..AZE151 *194	03/2010 - 04/2012	1
90311-C0001	2AZFE..AZE151	03/2007 - 03/2010	1
90311-89003	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 04/2012	1
90311-89010	2AZFE..AZE151 2AZ-FE,*195	05/2013 - 12/2999	1
90311-89007	2AZFE..AZE151 2AZ-FE,*195	04/2012 - 05/2013	1
90311-C0024	2AZFE..AZE151 *194	04/2012 - 12/2999	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09120	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 11/2012	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 11/2012	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02124	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 06/2013	10
90910-02124	2AZFE..AZE151 2AZ-FE,*195	06/2013 - 12/2999	10
90910-02124	2AZFE..AZE151	03/2007 - 03/2010	10
90910-02124	2AZFE..AZE151 *194	03/2010 - 12/2999	10
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-13017	2AZFE..AZE151	03/2007 - 03/2010	10
90253-C0006	2AZFE..AZE151 (L),*194	11/2013 - 12/2999	10
90253-13017	2AZFE..AZE151 (J),*194	11/2013 - 12/2999	10
90253-13017	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	10
90253-13017	2AZFE..AZE151 *194	03/2010 - 11/2013	10
11420 - CRANKCASE ASSY, STIFFENING
11420-0H050	2AZFE..AZE151 (L)	03/2007 - 03/2010	1
11420-28021	2AZFE..AZE151 (J),*194	10/2010 - 12/2999	1
11420-0H051	2AZFE..AZE151 (L),*194	10/2010 - 12/2999	1
11420-28020	2AZFE..AZE151 (J),*194	03/2010 - 10/2010	1
11420-0H051	2AZFE..AZE151 2AZ-FE,(L),*195	11/2010 - 12/2999	1
11420-28021	2AZFE..AZE151 2AZ-FE,(J),*195	11/2010 - 12/2999	1
11420-28020	2AZFE..AZE151 (J)	03/2007 - 03/2010	1
11420-0H050	2AZFE..AZE151 (L),*194	03/2010 - 10/2010	1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-52001	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	1
90345-52001	2AZFE..AZE151	03/2007 - 03/2010	1
90345-52001	2AZFE..AZE151 *194	03/2010 - 12/2999	1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53006	2AZFE..AZE151 2AZ-FE,*195	11/2012 - 12/2999	1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-C0011	2AZFE..AZE151 L=18,OD=8,(L),*194	09/2013 - 12/2999	2
90250-08120	2AZFE..AZE151 L=18,OD=8,*194	03/2010 - 09/2013	2
90250-08120	2AZFE..AZE151 L=18,OD=8,2AZ-FE,*195	11/2010 - 12/2999	2
90250-08120	2AZFE..AZE151 L=18,OD=8,(J),*194	09/2013 - 12/2999	2
90250-08120	2AZFE..AZE151 L=18,OD=8	03/2007 - 03/2010	2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-C0011	2AZFE..AZE151 L=18,OD=8,(L),*194	09/2013 - 12/2999	2
90250-08120	2AZFE..AZE151 L=18,OD=8,*194	03/2010 - 09/2013	2
90250-08120	2AZFE..AZE151 L=18,OD=8,2AZ-FE,*195	11/2010 - 12/2999	2
90250-08120	2AZFE..AZE151 L=18,OD=8,(J),*194	09/2013 - 12/2999	2
90250-08120	2AZFE..AZE151 L=18,OD=8	03/2007 - 03/2010	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-14003	2AZFE..AZE151 L=12,OD=14,*194	03/2010 - 12/2999	2
90253-14003	2AZFE..AZE151 L=12,OD=14	03/2007 - 03/2010	2
90253-14003	2AZFE..AZE151 L=12,OD=14,2AZ-FE,*195	11/2010 - 12/2999	2
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0H020	2AZFE..AZE151 *194	03/2010 - 12/2999	1
11445-28020	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	1
11445-0H020	2AZFE..AZE151	03/2007 - 03/2010	1
11452 - GUIDE, OIL LEVEL GAGE
11452-28060	2AZFE..AZE151 *194	03/2010 - 12/2999	1
11452-28040	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	1
11452-28060	2AZFE..AZE151	03/2007 - 03/2010	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010	2AZFE..AZE151	03/2007 - 03/2010	1
90301-C0007	2AZFE..AZE151 (L),*194	07/2013 - 12/2999	1
96721-19010	2AZFE..AZE151 *194	03/2010 - 07/2013	1
96721-19010	2AZFE..AZE151 (J),*194	07/2013 - 12/2999	1
96721-19010	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	1
12101 - PAN SUB-ASSY, OIL
12101-28060	2AZFE..AZE151 (J),*194	03/2010 - 12/2999	1
12101-0H060	2AZFE..AZE151 (L),*194	03/2010 - 12/2999	1
12101-0H060	2AZFE..AZE151 (L)	03/2007 - 03/2010	1
12101-28060	2AZFE..AZE151 (J)	03/2007 - 03/2010	1
12101-28060	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	2AZFE..AZE151 *194	03/2010 - 12/2999	1
90341-12012	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	1
90341-12012	2AZFE..AZE151	03/2007 - 03/2010	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	2AZFE..AZE151	03/2007 - 04/2008	1
90430-12031	2AZFE..AZE151 (J),*194	03/2010 - 12/2999	1
90430-C0005	2AZFE..AZE151 (L),*194	03/2010 - 12/2999	1
90430-12031	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0H050	2AZFE..AZE151 (L)	03/2007 - 03/2010	1
15301-28030	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 01/2013	1
15301-0H051	2AZFE..AZE151 *194	01/2013 - 12/2999	1
15301-0H050	2AZFE..AZE151 (L),*194	03/2010 - 01/2013	1
15301-28030	2AZFE..AZE151 (J)	03/2007 - 03/2010	1
15301-28030	2AZFE..AZE151 (J),*194	03/2010 - 01/2013	1
15301-28031	2AZFE..AZE151 2AZ-FE,*195	01/2013 - 12/2999	1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005	2AZFE..AZE151 2AZ-FE,*194	03/2010 - 12/2015	1
96741-19005	2AZFE..AZE151	03/2007 - 03/2010	1
96741-19005	2AZFE..AZE151 2AZ-FE,*195	01/2013 - 12/2015	1
96741-19005	2AZFE..AZE151 *194	03/2010 - 12/2015	1
96741-19005	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 01/2013	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-28010	2AZFE..AZE151	03/2007 - 10/2008	4
15708-28011	2AZFE..AZE151 *194	03/2010 - 12/2999	4
15708-28011	2AZFE..AZE151 2AZ-FE,*195	11/2010 - 12/2999	4
Common parts
90110-06018
90119-06848
90126-06015
90179-06326
90253-11005
90910-02142
91512-81032
91631-G0614
96761-24020

AZE151L-FHMNKA (2010)

ILLUST NO. 1 OF 2(1011- )
