NCP61L-HHMNKA (2003)
Toyota Scion Xa
Production
Apr 2003
-
Jul 2005
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

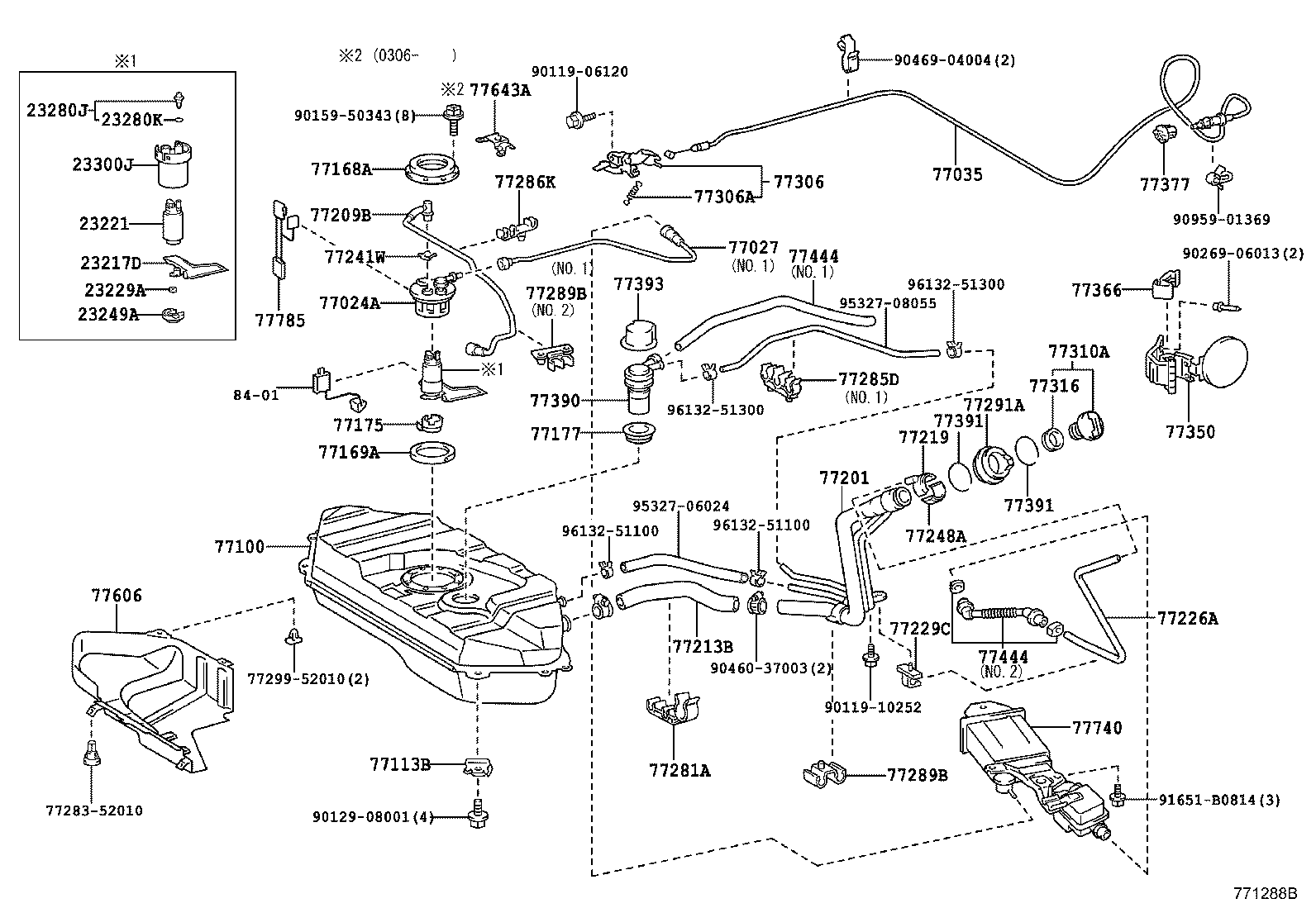

ILLUST NO. 1 OF 2(0304-0507)
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-21030 |
1NZFE..NCP61 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-21030 |
1NZFE..NCP61 |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1NZFE..NCP61 |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
1NZFE..NCP61 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
1NZFE..NCP61 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1NZFE..NCP61 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-21010 |
1NZFE..NCP61 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52030 |
NCP61 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-52100 |
NCP61 NO.1 |
1 | ||
| 77027-52110 |
NCP61 NO.2 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-52021 |
NCP61 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-52180 |
NCP61 |
1 | ||
| 77001-52080 |
NCP61 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-52010 |
NCP61 |
4 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
NCP61 |
1 | ||
| 77168-52010 |
NCP61 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
NCP61 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-47010 |
NCP61 |
1 | ||
| 77177 - GASKET, CHECK VALVE | ||||
| 77177-33010 |
NCP61 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-52270 |
NCP61 |
1 | ||
| 77201-52170 |
NCP61 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-52020 |
NCP61 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-52110 |
NCP61 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-20090 |
NCP61 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-52020 |
NCP61 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-52020 |
NCP61 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NCP61 |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-20070 |
NCP61 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-52020 |
NCP61 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52030 |
NCP61 NO.2 |
1 | ||
| 77285-52040 |
NCP61 NO.1 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52020 |
NCP61 |
1 | ||
| 77286-52020 |
NCP61 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52010 |
NCP61 NO.2 |
1 | ||
| 77289-52030 |
NCP61 NO.1 |
1 | ||
| 77289-52040 |
NCP61 NO.3 |
1 | ||
| 77289-52040 |
NCP61 NO.3 |
1 | ||
| 77289-52010 |
NCP61 NO.2 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52010 |
NCP61 NO.2 |
1 | ||
| 77289-52030 |
NCP61 NO.1 |
1 | ||
| 77289-52040 |
NCP61 NO.3 |
1 | ||
| 77289-52040 |
NCP61 NO.3 |
1 | ||
| 77289-52010 |
NCP61 NO.2 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52010 |
NCP61 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13030 |
NCP61 |
1 | ||
| 77306A - SPRING, FUEL LID OPEN LEVER | ||||
| 90506-09004 |
NCP61 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-53010 |
NCP61 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
NCP61 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-52090 |
NCP61 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52010 |
NCP61 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-52010 |
NCP61 |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-52010 |
NCP61 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCP61 |
2 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NCP61 |
2 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-52010 |
NCP61 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-52040 |
NCP61 NO.2 |
1 | ||
| 77404-52030 |
NCP61 NO.1 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-52040 |
NCP61 NO.2 |
1 | ||
| 77404-52030 |
NCP61 NO.1 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-52040 |
NCP61 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-52030 |
NCP61 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-52070 |
NCP61 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
NCP61 |
1 | ||
| Common parts | ||||
| 77283-52010 | ||||
| 77299-52010 | ||||
| 90119-06120 | ||||
| 90119-10252 | ||||
| 90129-08001 | ||||
| 90159-50343 | ||||
| 90269-06013 | ||||
| 90460-37003 | ||||
| 90469-04004 | ||||
| 90959-01369 | ||||
| 91651-B0814 | ||||
| 95327-06024 | ||||
| 95327-08055 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0304-0507)
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-52100 |
NCP61 NO.1 |
1 | ||
| 77027-52110 |
NCP61 NO.2 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-52021 |
NCP61 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52010 |
NCP61 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52030 |
NCP61 NO.2 |
1 | ||
| 77285-52040 |
NCP61 NO.1 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52010 |
NCP61 |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-52010 |
NCP61 NO.2 |
1 | ||
| 77289-52030 |
NCP61 NO.1 |
1 | ||
| 77289-52040 |
NCP61 NO.3 |
1 | ||
| 77289-52040 |
NCP61 NO.3 |
1 | ||
| 77289-52010 |
NCP61 NO.2 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52010 |
NCP61 |
4 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-52020 |
NCP61 |
1 | ||
| Common parts | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
