NCP61L-HHMNKA (2003)
Toyota Scion Xa
Production
Apr 2003
-
Jul 2005
Engine
1NZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0304- )

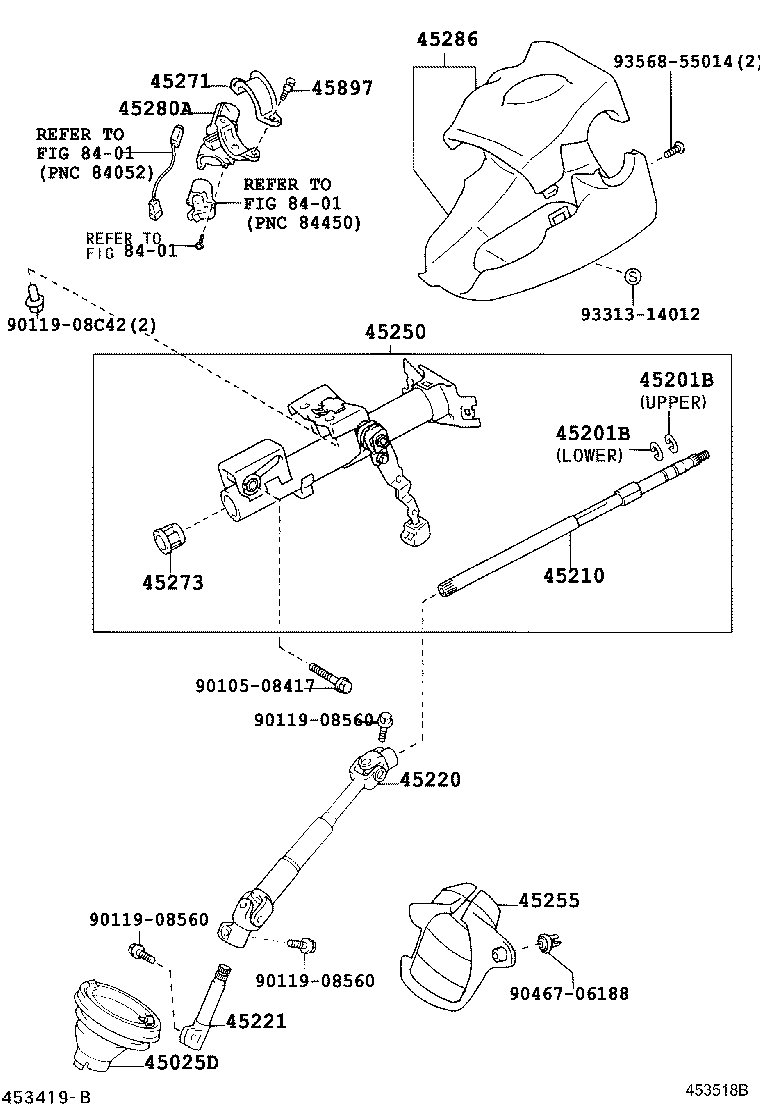

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-52030 |
NCP61 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
NCP61 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP61 T=1.20,LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
NCP61 T=1.20,UPPER |
1 | ||
| 90520-17042 |
NCP61 T=1.20,LOWER |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-27110 |
NCP61 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-52020 |
NCP61 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45297-52010 |
NCP61 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-52080 |
NCP61 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-52060 |
NCP61 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
NCP61 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-33030 |
NCP61 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-52070 |
NCP61..5F |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-13905B1 |
NCP61 DK.GRAY,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NCP61..5F |
2 | ||
| Common parts | ||||
| 90105-08417 | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90467-06188 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
