NCP61L-HHMNKA (2003)
Toyota Scion Xa
(0304- )5F
C50

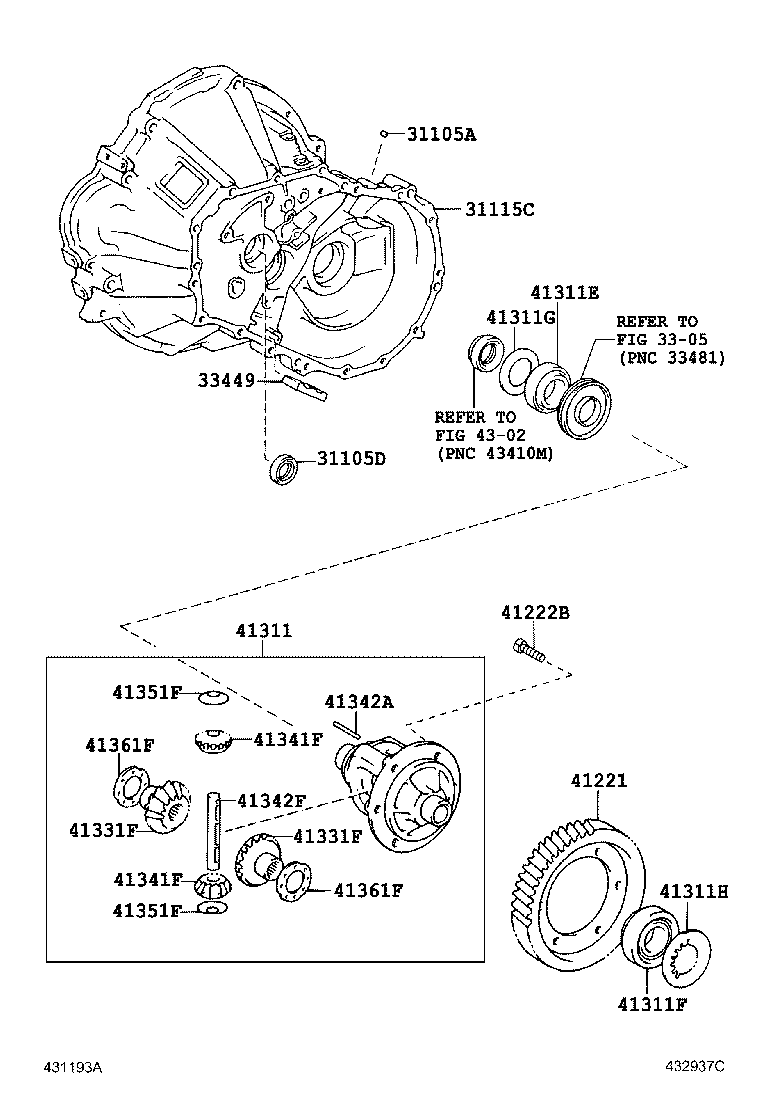

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-08002 |
NCP61..5F |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25011 |
NCP61..5F |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-52011 |
NCP61..5F |
1 | ||
| 31115-52010 |
NCP61..5F |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-12020 |
NCP61..5F |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-12340 |
NCP61..5F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-11040 |
NCP61..5F |
8 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-12041 |
NCP61..5F |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-38004 |
NCP61..5F NACHI |
1 | ||
| 90080-36101 |
NCP61..5F TIMKEN |
1 | ||
| 90366-38004 |
NCP61..5F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
NCP61..5F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
NCP61..5F T=2.1 |
1 | ||
| 90560-41002 |
NCP61..5F T=1.2 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-41017 |
NCP61..5F T=2.25,MARK DD |
1 | ||
| 90564-41015 |
NCP61..5F T=2.15,MARK BB |
1 | ||
| 90564-41028 |
NCP61..5F T=2.80,MARK QQ |
1 | ||
| 90564-41019 |
NCP61..5F T=2.35,MARK FF |
1 | ||
| 90564-41029 |
NCP61..5F T=2.85,MARK RR |
1 | ||
| 90564-41021 |
NCP61..5F T=2.45,MARK HH |
1 | ||
| 90564-41018 |
NCP61..5F T=2.30,MARK EE |
1 | ||
| 90564-41022 |
NCP61..5F T=2.50,MARK JJ |
1 | ||
| 90564-41025 |
NCP61..5F T=2.65,MARK MM |
1 | ||
| 90564-41020 |
NCP61..5F T=2.40,MARK GG |
1 | ||
| 90564-41032 |
NCP61..5F T=3.00,MARK UU |
1 | ||
| 90564-41027 |
NCP61..5F T=2.75,MARK PP |
1 | ||
| 90564-41026 |
NCP61..5F T=2.70,MARK NN |
1 | ||
| 90564-41016 |
NCP61..5F T=2.20,MARK CC |
1 | ||
| 90564-41014 |
NCP61..5F T=2.10,MARK AA |
1 | ||
| 90564-41030 |
NCP61..5F T=2.90,MARK SS |
1 | ||
| 90564-41031 |
NCP61..5F T=2.95,MARK TT |
1 | ||
| 90564-41024 |
NCP61..5F T=2.60,MARK LL |
1 | ||
| 90564-41023 |
NCP61..5F T=2.55,MARK KK |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
NCP61..5F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
NCP61..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
NCP61..5F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
NCP61..5F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
NCP61 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-12140 |
NCP61..5F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
NCP61 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
NCP61 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
NCP61..5F T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NCP61..5F T=1.10,MARK 03 |
2 | ||
| 41361-22040 |
NCP61..5F T=1.20,MARK 04 |
2 | ||
| 41361-22150 |
NCP61..5F T=1.05,MARK 15 |
2 | ||
| 41361-22160 |
NCP61..5F T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
NCP61..5F T=0.95,MARK 14 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
NCP61..5F T=1.00,MARK 02 |
2 | ||
| 41361-22030 |
NCP61..5F T=1.10,MARK 03 |
2 | ||
| 41361-22040 |
NCP61..5F T=1.20,MARK 04 |
2 | ||
| 41361-22150 |
NCP61..5F T=1.05,MARK 15 |
2 | ||
| 41361-22160 |
NCP61..5F T=1.15,MARK 16 |
2 | ||
| 41361-22140 |
NCP61..5F T=0.95,MARK 14 |
2 | ||
| Linked diagrams | ||||
| 3305 | ||||
| 4302 | ||||
