NGJ10L-BGXNGA (2011)
Toyota Scion Iq
Production
Jul 2011
-
Jun 2015
Engine
1NRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

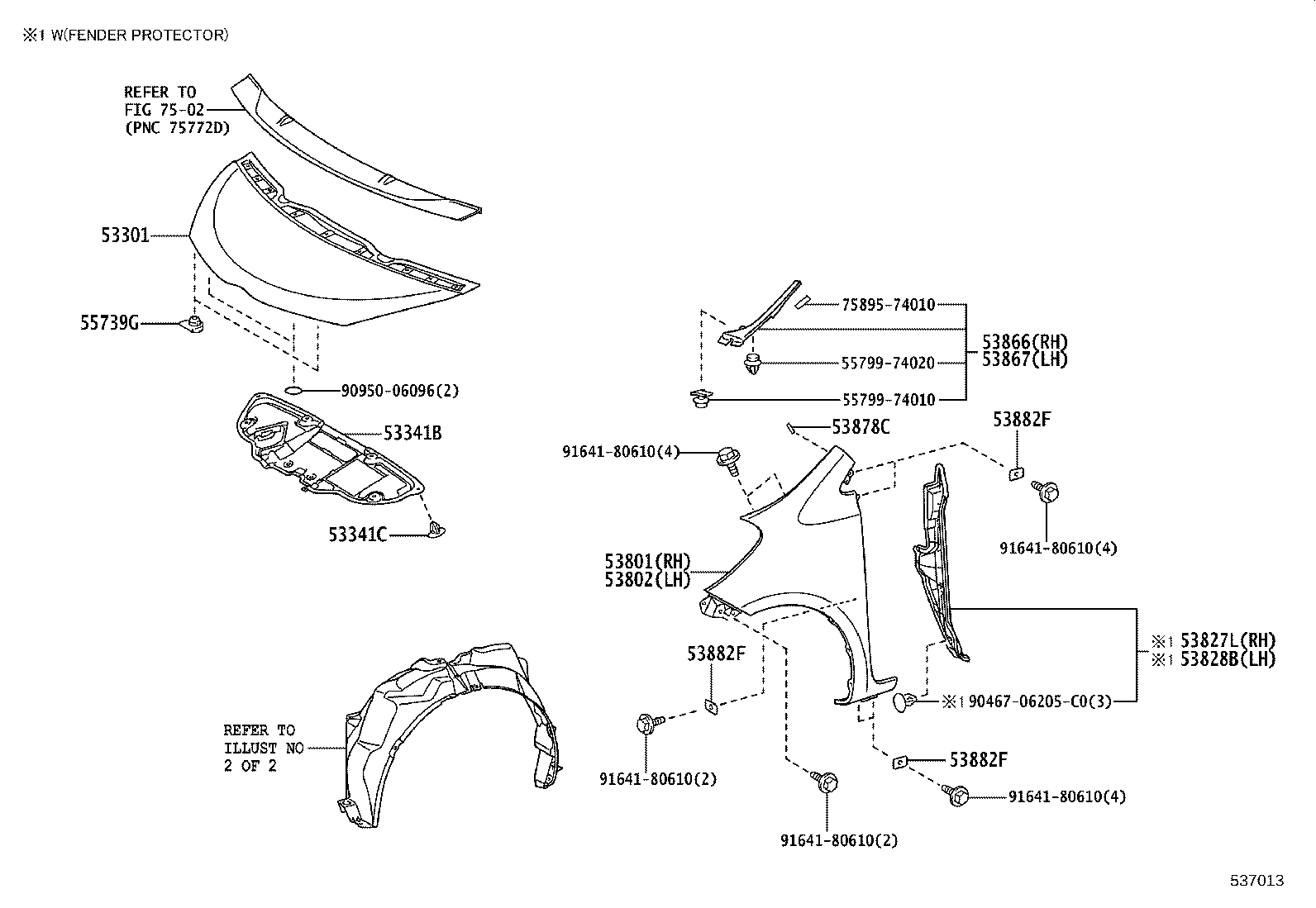

ILLUST NO. 1 OF 2(1107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-74020 |
NGJ10 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-74011 |
NGJ10 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
NGJ10 |
8 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-74020 |
NGJ10 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-74020 |
NGJ10 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-74010 |
NGJ10 NV PACKAGE |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-74010 |
NGJ10 NV PACKAGE |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-74020 |
NGJ10 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-74010 |
NGJ10 |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-74020 |
NGJ10 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NGJ10 |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NGJ10 |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
NGJ10 |
10 | ||
| 55739G - STOPPER, HOOD | ||||
| 55738-52060 |
NGJ10 |
2 | ||
| Common parts | ||||
| 55799-74010 | ||||
| 55799-74020 | ||||
| 75895-74010 | ||||
| 90467-06205C0 | ||||
| 90950-06096 | ||||
| 91641-80610 | ||||
| Linked diagrams | ||||
| 7502 | ||||

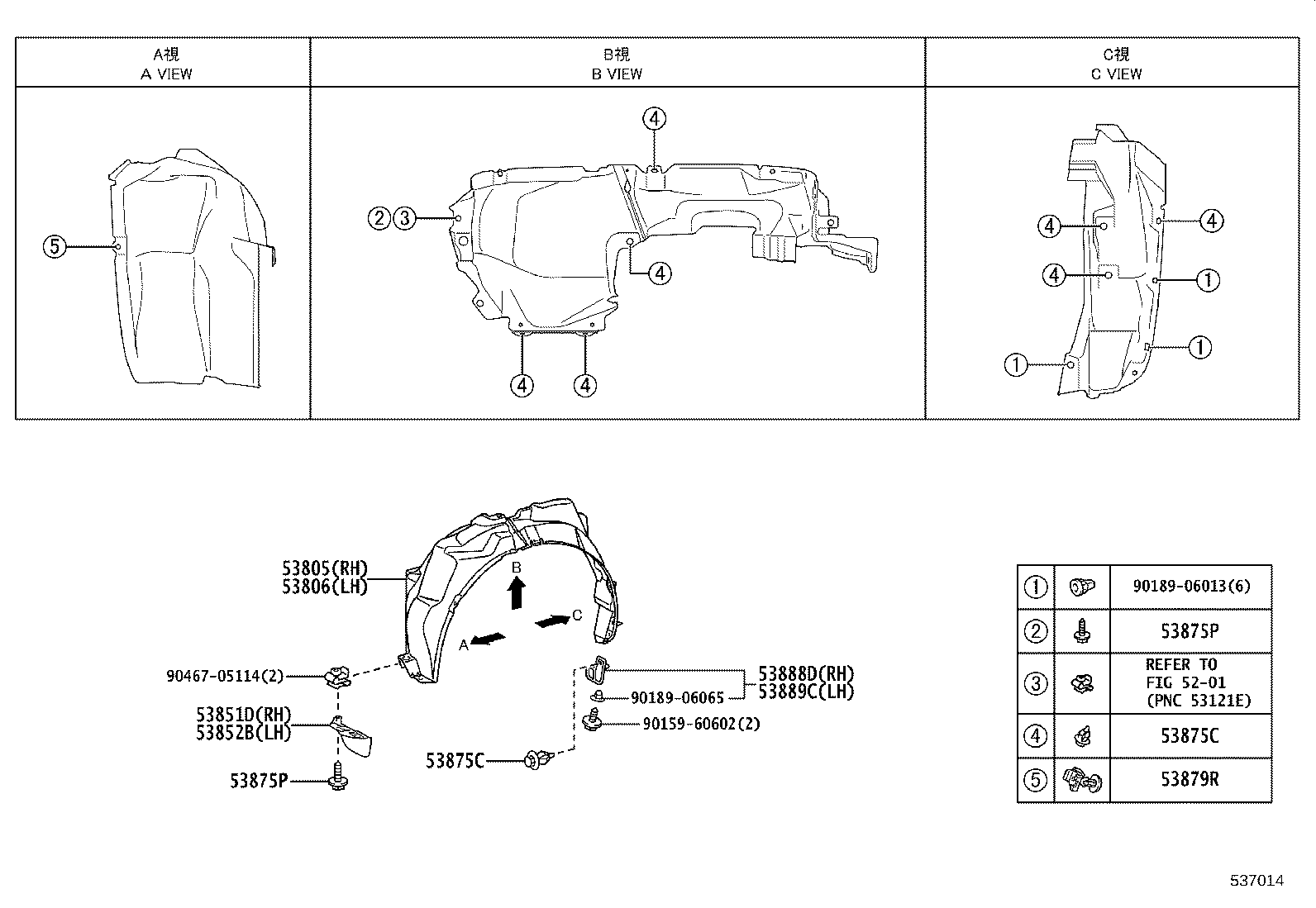

ILLUST NO. 2 OF 2(1107- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-74010 |
NGJ10 |
1 | ||
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-74010 |
NGJ10 |
1 | ||
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-74020 |
NGJ10 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-74020 |
NGJ10 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
NGJ10 |
16 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
NGJ10 |
16 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
NGJ10 |
4 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
NGJ10 |
4 | ||
| 53879R - RETAINER, FRONT FENDER LINER | ||||
| 53879-28010 |
NGJ10 |
2 | ||
| 53888D - MUDGUARD, FENDER REAR PLATE, RH | ||||
| 53888-74011 |
NGJ10 |
1 | ||
| 53889C - MUDGUARD, FENDER REAR PLATE, LH | ||||
| 53889-74011 |
NGJ10 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90189-06013 | ||||
| 90189-06065 | ||||
| 90467-05114 | ||||
| Linked diagrams | ||||
| 5201 | ||||
