NGJ10L-BGXNGA (2011)
Toyota Scion Iq
Production
Jul 2011
-
Jun 2015
Engine
1NRFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )

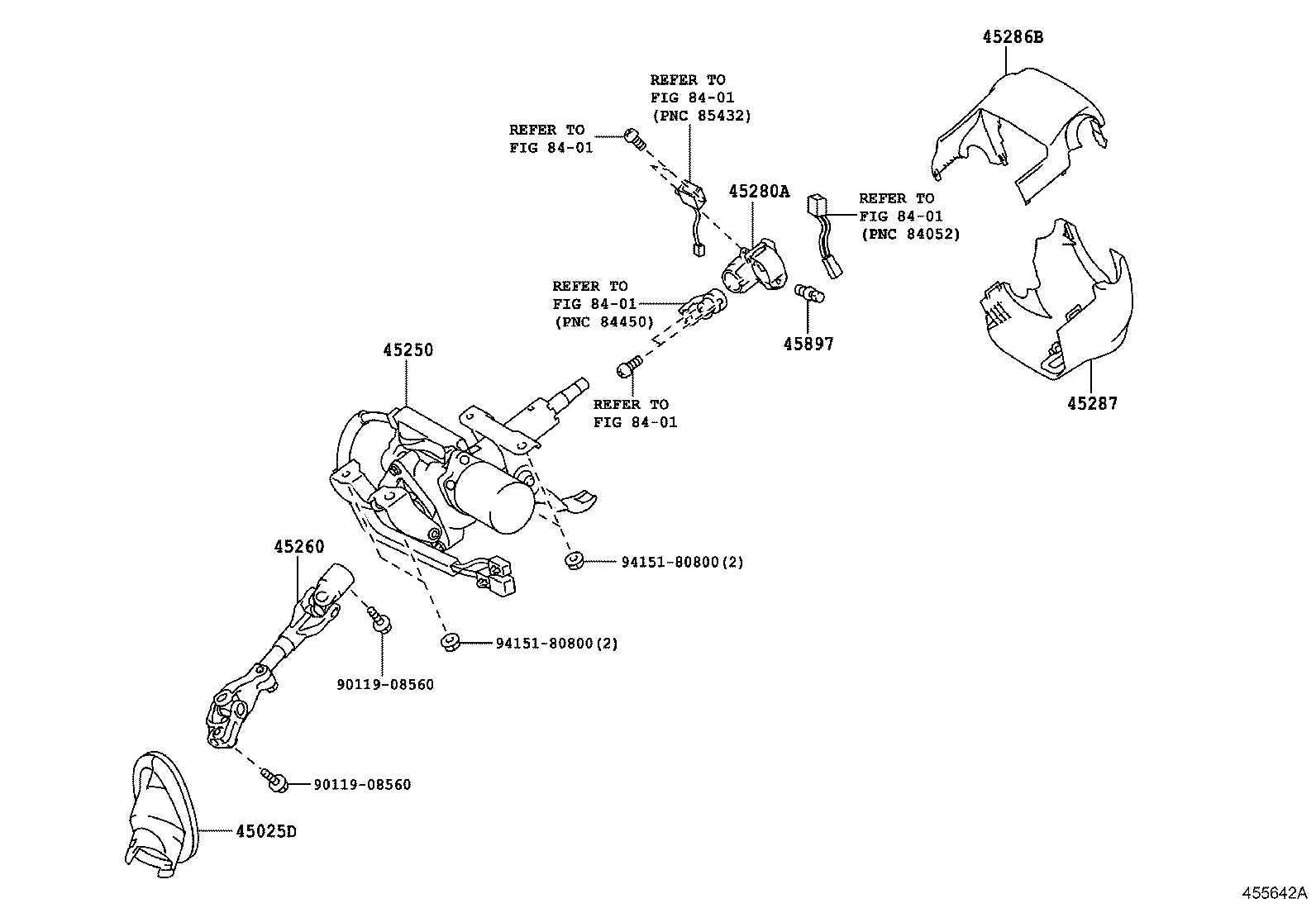

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-74020 |
NGJ10 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-74090 |
NGJ10 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-74020 |
NGJ10 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-74030 |
NGJ10 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-74010C0 |
NGJ10 BLACK,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-74020C0 |
NGJ10 BLACK,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
NGJ10 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
