NGJ10L-BGXNGA (2011)

Toyota Scion Iq

Production Jul 2011 - Jun 2015
Engine 1NRFE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

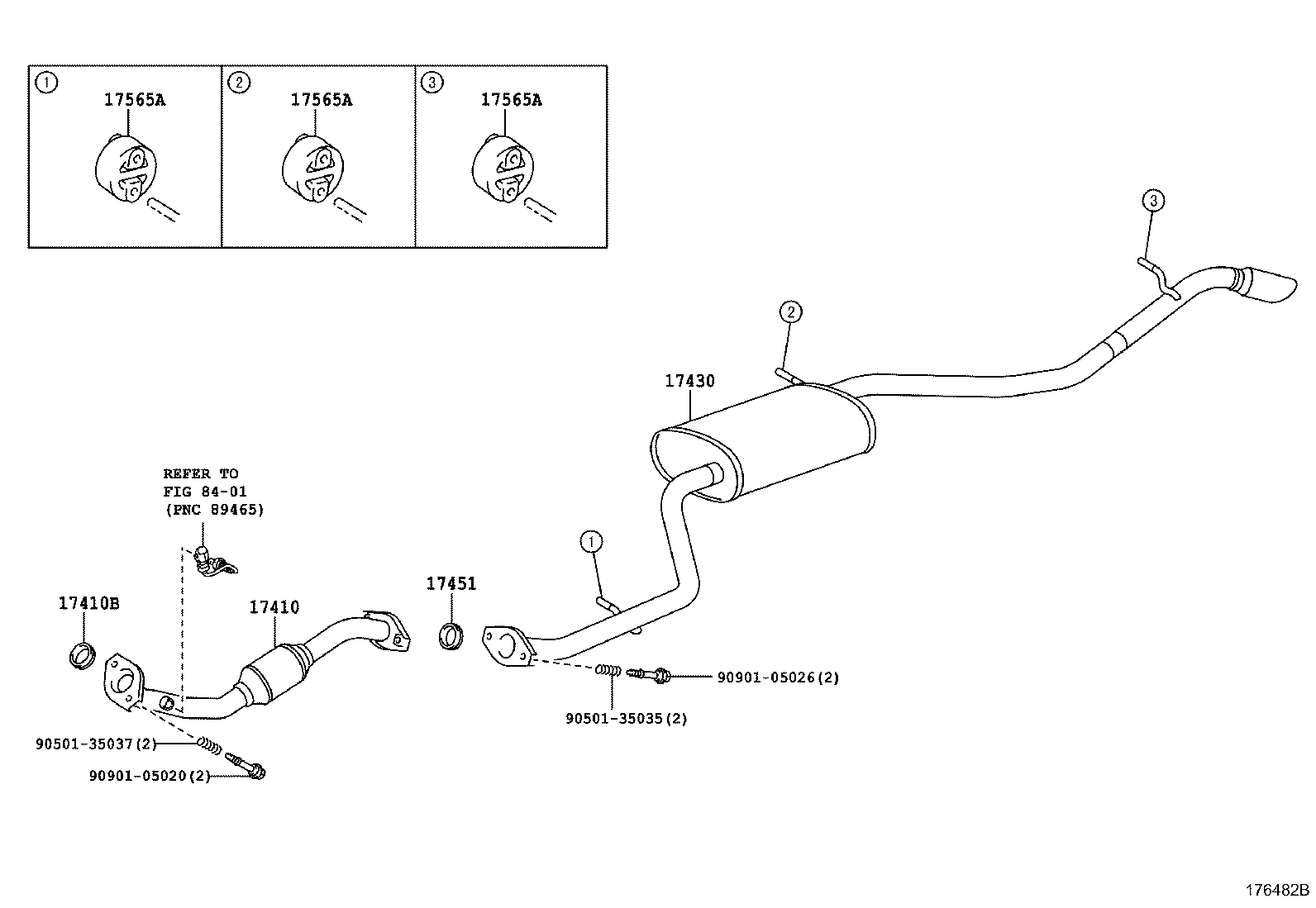

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17565A 17565A 17565A 8401 9050135035 9050135037 9090105020 9090105026
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-47200

1NRFE..NGJ10

 1
17410B - GASKET, EXHAUST PIPE
17451-21080

1NRFE..NGJ10

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-47130

1NRFE..NGJ10

 1
17451 - GASKET, EXHAUST PIPE
17451-23042

1NRFE..NGJ10

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NRFE..NGJ10

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NRFE..NGJ10

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1NRFE..NGJ10

 3
Common parts
90501-35035
90501-35037
90901-05020
90901-05026
Linked diagrams
8401
