ZRE186L-AHXNPA (2015)
Toyota Scion Im/Im
Production
Jun 2015
-
May 2018
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

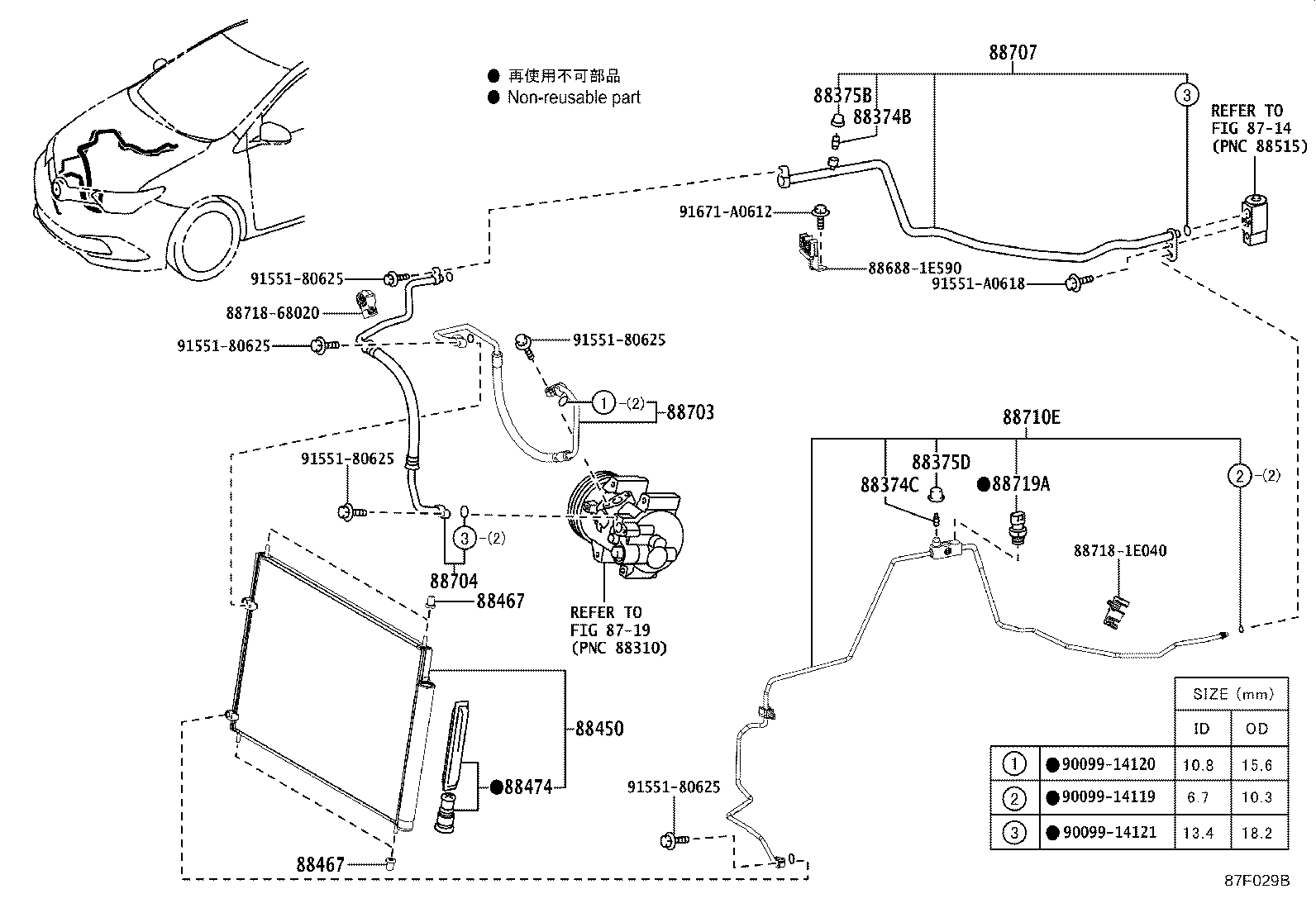

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZRE186 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ZRE186 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZRE186 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ZRE186 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-12340 |
ZRE186 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ZRE186 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 16716-28010 |
ZRE186 |
4 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
ZRE186 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-12A50 |
ZRE186 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-12A50 |
ZRE186 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-12390 |
ZRE186 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-12A50 |
ZRE186 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
ZRE186 |
1 | ||
| Common parts | ||||
| 88688-1E590 | ||||
| 88718-1E040 | ||||
| 88718-68020 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| 91671-A0612 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
