Toyota Scion ia/yaris r/ia DDF5 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
US
SCION IA/YARIS R/IA
DDF5-NAG (2018)
8401 - SWITCH & RELAY & COMPUTER

DDF5-NAG (2018)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2018 - Aug 2019

Engine P5 1500

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF22(1506-1908)

Click highlighted areas on diagram

ENGINE & TRANSMISSION(2/4)

Part #	Description	Period	Qty
89615 - SENSOR, KNOCK CONTROL
89615-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
Common parts
90118-WB515
90118-WB666
Linked diagrams
1104
1105
3302
8202
8404

ILLUST NO. 5 OF22(1506-1908)

Click highlighted areas on diagram

ENGINE ROOM(1/2)

Part #	Description	Period	Qty	Price
Common parts
90118-WB690
Linked diagrams
8201
8202
8404

ILLUST NO.15 OF22(1506-1908)

Click highlighted areas on diagram

INSTRUMENT PANEL(2/2)

Part #	Description	Period	Qty
84970 - SWITCH ASSY, COMBINATION
84970-WB003	DAEB1,DAEC1,DAED1,DAEE1,DDF#..CND,MXC W/O(TPMS)	08/2018 - 12/2999	1
89611 - SWITCH, PUSH START
89611-WB001	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
Linked diagrams
5501

ILLUST NO.16 OF22(1808- )DDF5 ; (1808- )DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF4,8,9..A,B,C,D,

Click highlighted areas on diagram

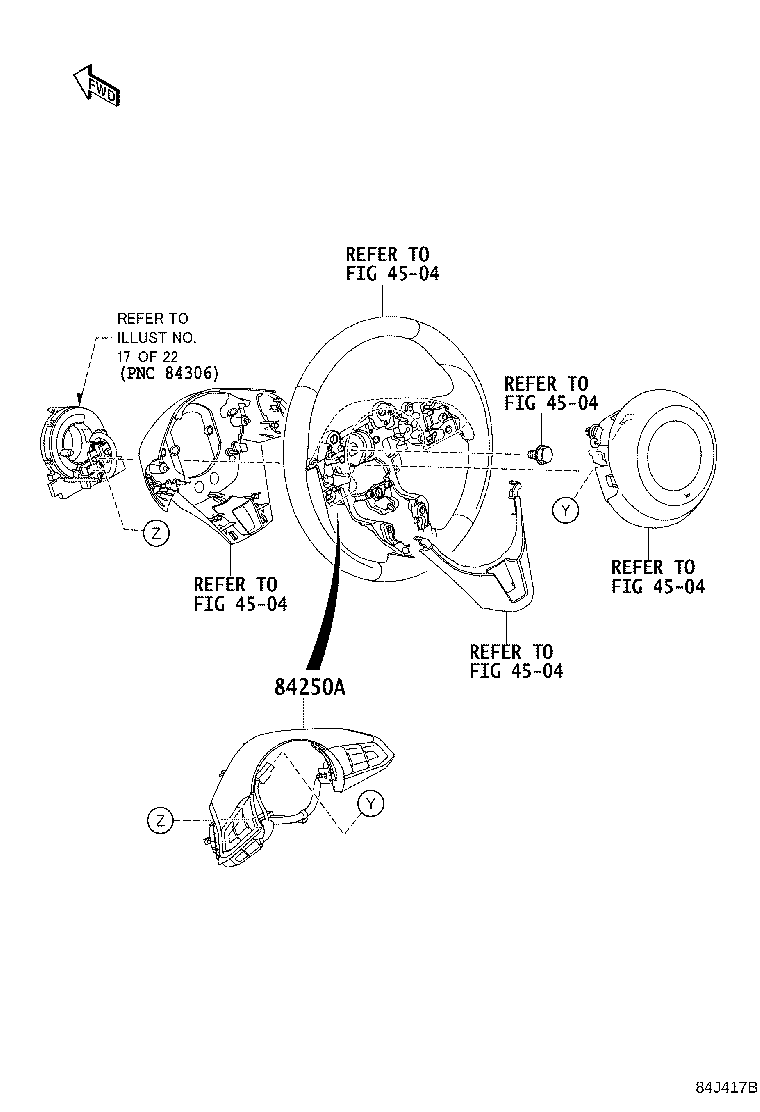

STEERING(1/2)

Part #	Description	Period	Qty
84250A - SWITCH ASSY, STEERING PAD
84250-WB008	DDF5..A,D,F,G;DADW1,DAEA1,DAEB1,DAEC1,DDF4..BASE,ENTRY 6SPEAKER	08/2018 - 12/2999	1
84250-WB005	DAEA1,DAEC1,DDF5..HI..(C,D,E,F)	08/2018 - 12/2999	1
Linked diagrams
4504

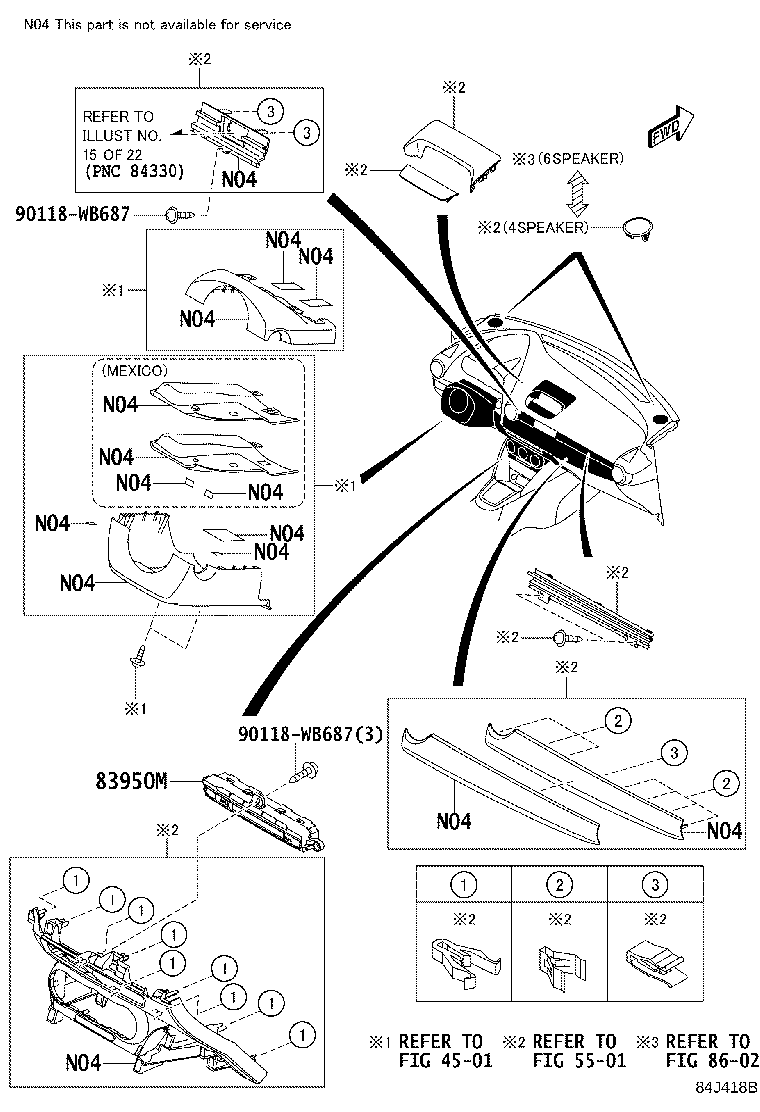

ILLUST NO.14 OF22(1808-1908)

Click highlighted areas on diagram

INSTRUMENT PANEL(1/2)

Part #	Description	Period	Qty
83950M - LAMP ASSY, TELLTALE
83950-WB002	DB7P,DDF5,DM0T..HI..CND	06/2015 - 08/2019	1
83950-WB001	DM0T..A,C,D,E;DD1B,F5..A,B,C,D,E,F;DB7P..B,C,E,F,G,J,K,L;DADW1,DAEA1,DAEB1,DAEC1,DDF4,DM0S..A,B,C,D,E	06/2015 - 12/2999	1
Common parts
90118-WB687
Linked diagrams
4501
5501
8602

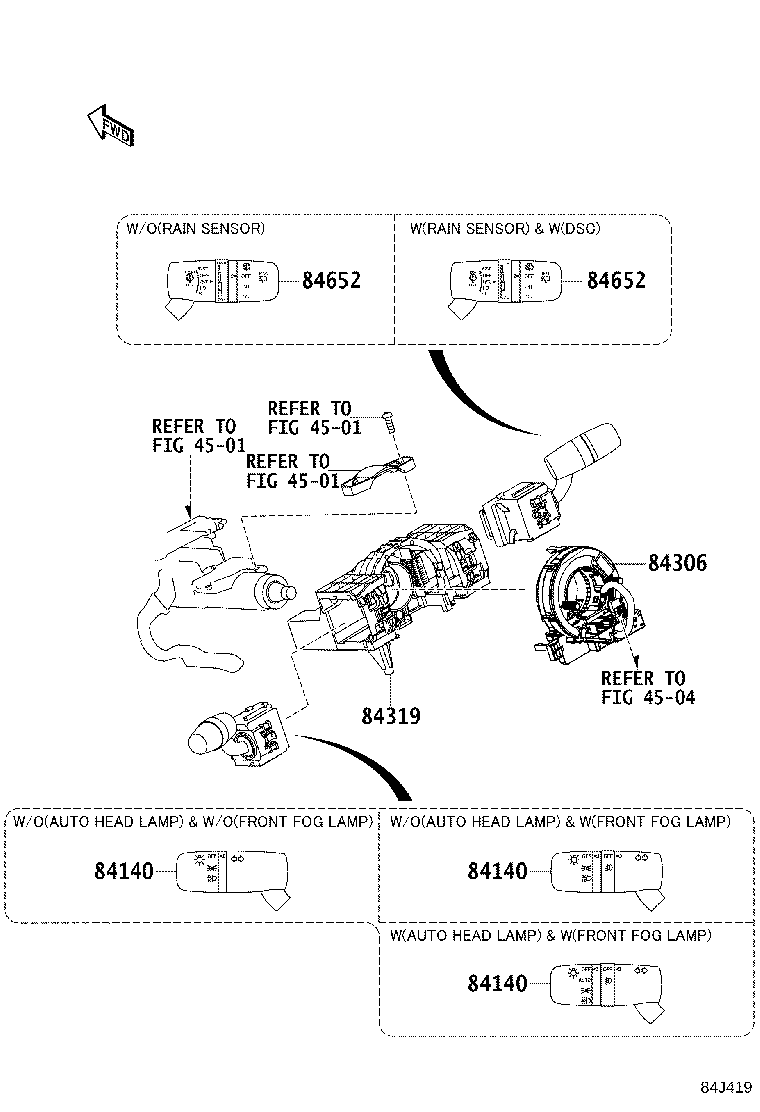

ILLUST NO.17 OF22(1808-1908)

Click highlighted areas on diagram

STEERING(2/2)

Part #	Description	Period	Qty
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-WB011	DAEA1,DAEC1,DDF5..HI..(CND,USA)..(C,D,E,G)	08/2018 - 12/2999	1
84140-WB010	DDF5..A,E;DAEA1,DDF9..B,C;DADW1,DAEC1,DAEE1,DDF4..(BASE,HI)..(CND,MXC,USA)..(A,C,F)	08/2018 - 12/2999	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-WB011	DAEA1,DAEC1,DDF5..HI..(CND,USA)..(C,D,E,G)	08/2018 - 12/2999	1
84140-WB010	DDF5..A,E;DAEA1,DDF9..B,C;DADW1,DAEC1,DAEE1,DDF4..(BASE,HI)..(CND,MXC,USA)..(A,C,F)	08/2018 - 12/2999	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-WB011	DAEA1,DAEC1,DDF5..HI..(CND,USA)..(C,D,E,G)	08/2018 - 12/2999	1
84140-WB010	DDF5..A,E;DAEA1,DDF9..B,C;DADW1,DAEC1,DAEE1,DDF4..(BASE,HI)..(CND,MXC,USA)..(A,C,F)	08/2018 - 12/2999	1
84652 - KNOB, WINDSHIELD WIPER SWITCH (FOR WASHER)
84652-WB001	DDF5..A,B,D,E,F;DADW1,DAEA1,DAED1,DAEE1,DDF4,8,9..A,B,C,D	08/2018 - 12/2999	1
84652-WB004	DAEA1,DDF5..HI..(CND,USA)	08/2018 - 12/2999	1
84652 - KNOB, WINDSHIELD WIPER SWITCH (FOR WASHER)
84652-WB001	DDF5..A,B,D,E,F;DADW1,DAEA1,DAED1,DAEE1,DDF4,8,9..A,B,C,D	08/2018 - 12/2999	1
84652-WB004	DAEA1,DDF5..HI..(CND,USA)	08/2018 - 12/2999	1
Linked diagrams
4501
4504

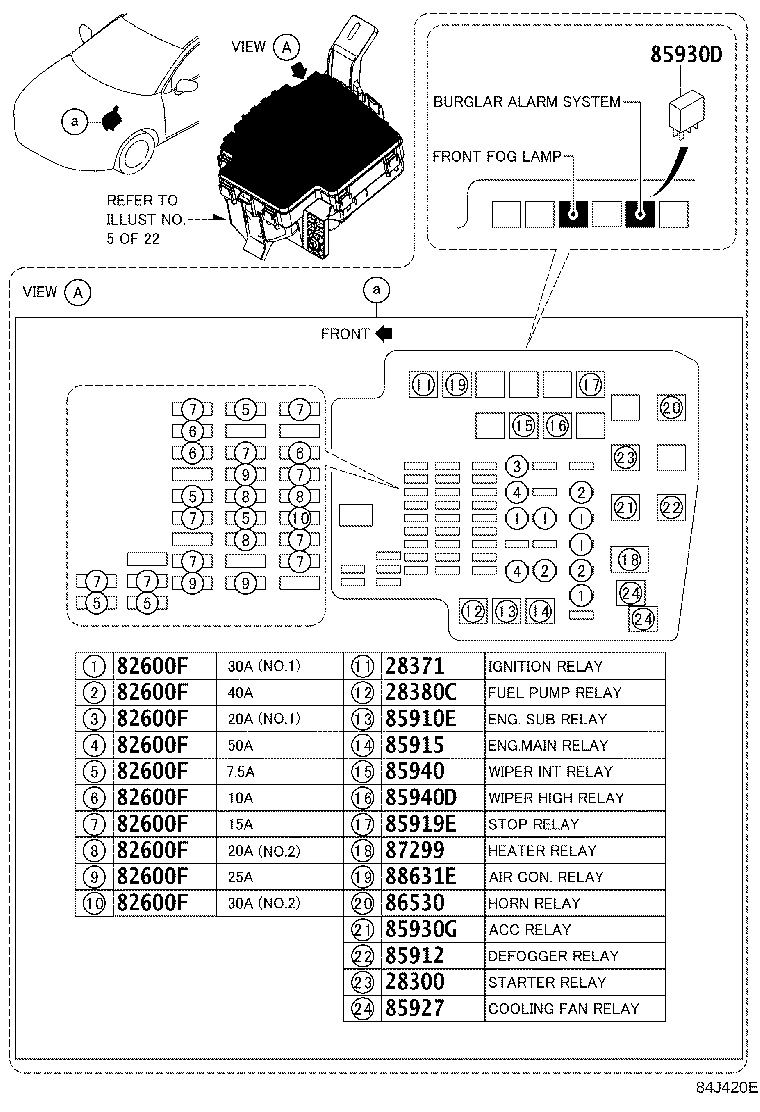

ILLUST NO. 6 OF22(1808-1908)

Click highlighted areas on diagram

ENGINE ROOM(2/2)

Part #	Description	Period	Qty
28371 - RELAY, IGNITION, NO.1
90118-WB759	P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
28380C - RELAY ASSY, FUEL PUMP
90118-WB705	P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	3
85912 - RELAY, DEFOGGER
90118-WB766	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
85919E - RELAY, STOP LAMP
90118-WB485	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
85927 - RELAY, COOLING FAN
90118-WB766	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DDF5,DM0T	06/2015 - 12/2999	2
85930D - RELAY
90118-WB726	DDF5..E;DAEA1,DDF9..B,C,E;DADW1,DAEC1,DAEE1..(BASE,HI)..(A,C,D,F)	08/2018 - 12/2999	2
90118-WB726	DDF4..A,C;DDF5..A,C,D,G;DADW1,DAEB1,DAEE1..B,C;DAEA1,DAEC1,DAED1,DDF8,9..(BASE,ENTRY)..(A,D,E)	08/2018 - 12/2999	1
85930G - RELAY, ACC
90118-WB766	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
85940 - RELAY ASSY, WINDSHIELD WIPER
90118-WB485	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
85940D - RELAY ASSY, WINDSHIELD WIPER, NO.2
90118-WB485	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
86530 - RELAY ASSY, HORN
90118-WB766	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
87299 - RELAY, HEATER
90118-WB746	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1
88631E - RELAY, AIRCONDITIONER
90118-WB766	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 12/2999	1

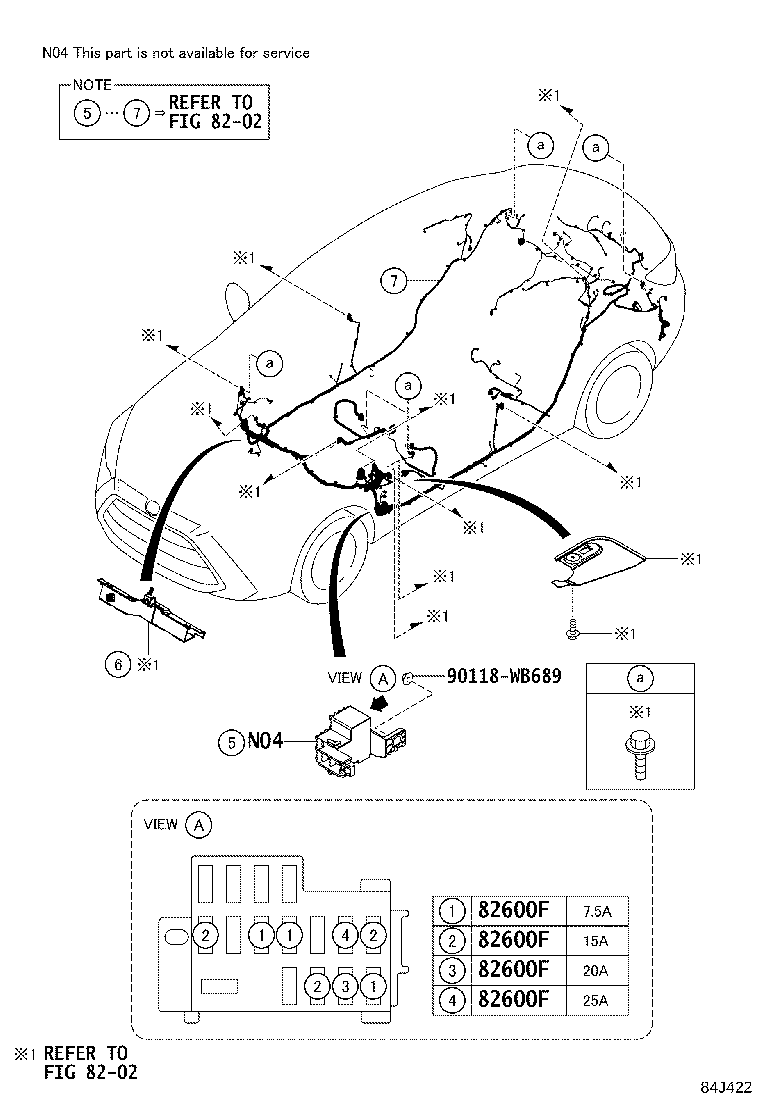

ILLUST NO. 7 OF22(1808-1908)

Click highlighted areas on diagram

COWL(1/7)

Part #	Description	Period	Qty	Price
Common parts
90118-WB689
Linked diagrams
8202

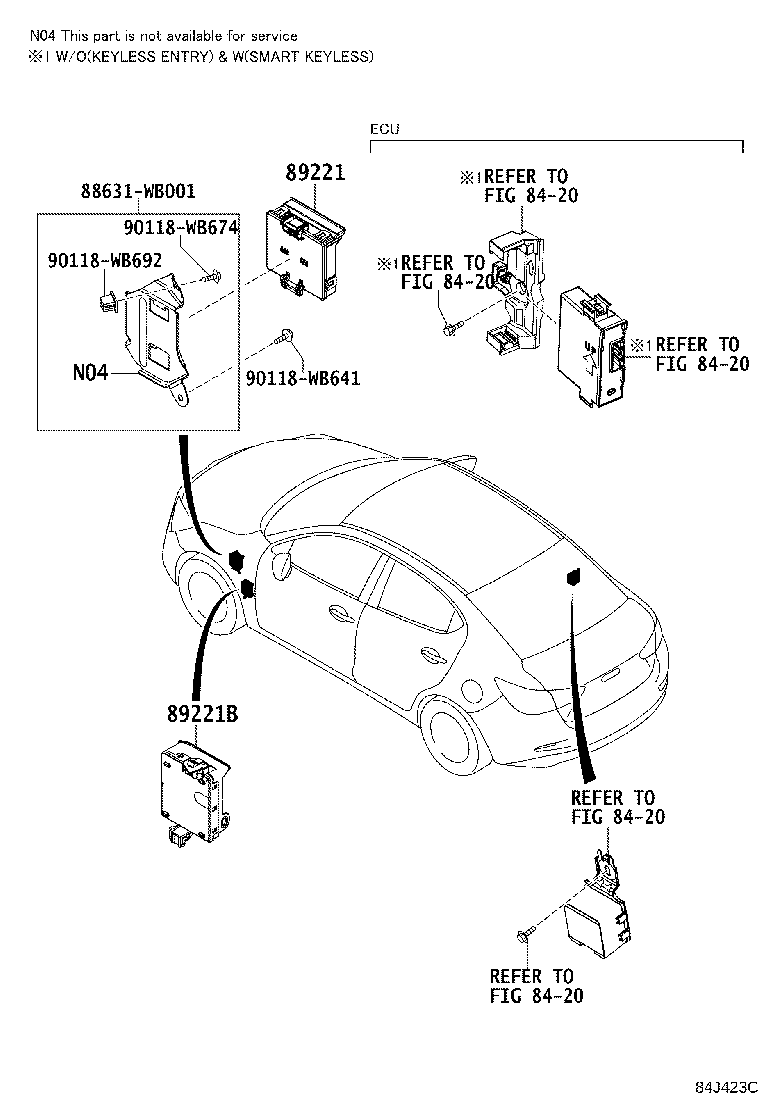

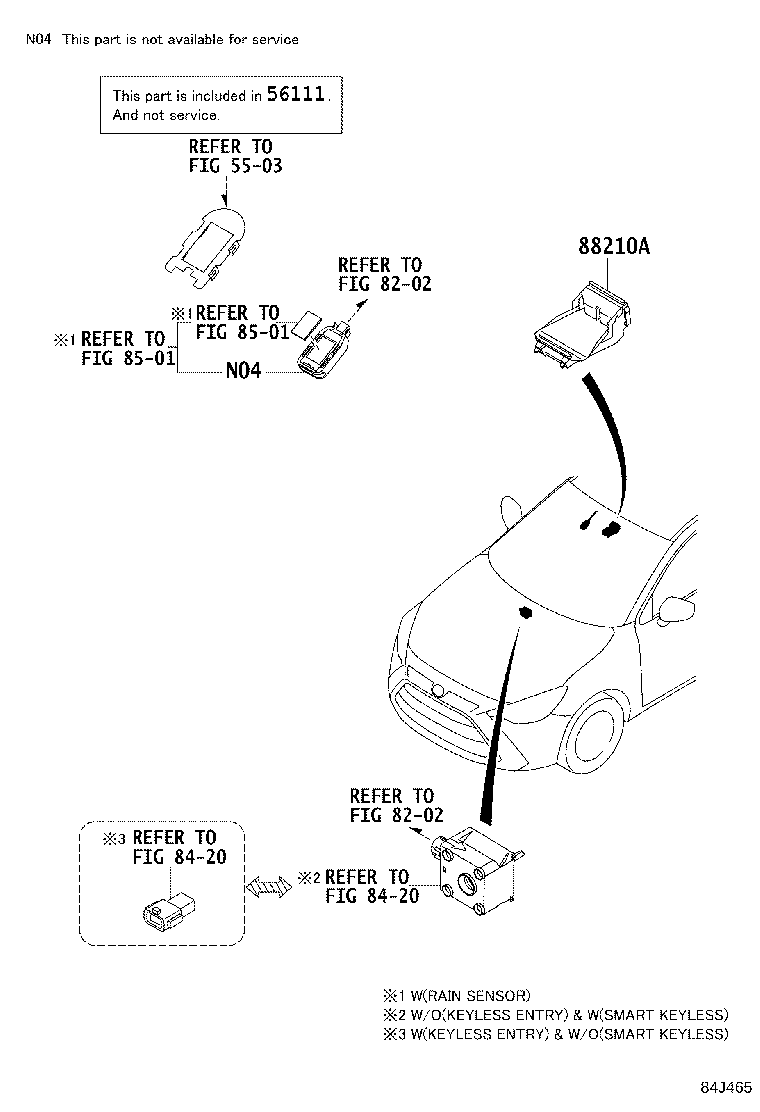

ILLUST NO.11 OF22(1808-1908)

Click highlighted areas on diagram

COWL(5/7)

Part #	Description	Period	Qty
89221 - COMPUTER, MULTIPLEX NETWORK BODY
89221-WB005	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T	06/2015 - 11/2019	1
89221B - COMPUTER, BODY
89221-WB008	DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#	08/2018 - 12/2999	1
Common parts
88631-WB001
90118-WB641
90118-WB674
90118-WB692
Linked diagrams
8420

ILLUST NO.11 OF22(1808-1908)

Click highlighted areas on diagram

COWL(5/7)

Part #	Description	Period	Qty	Price
Linked diagrams
5503
8202
8420
8501

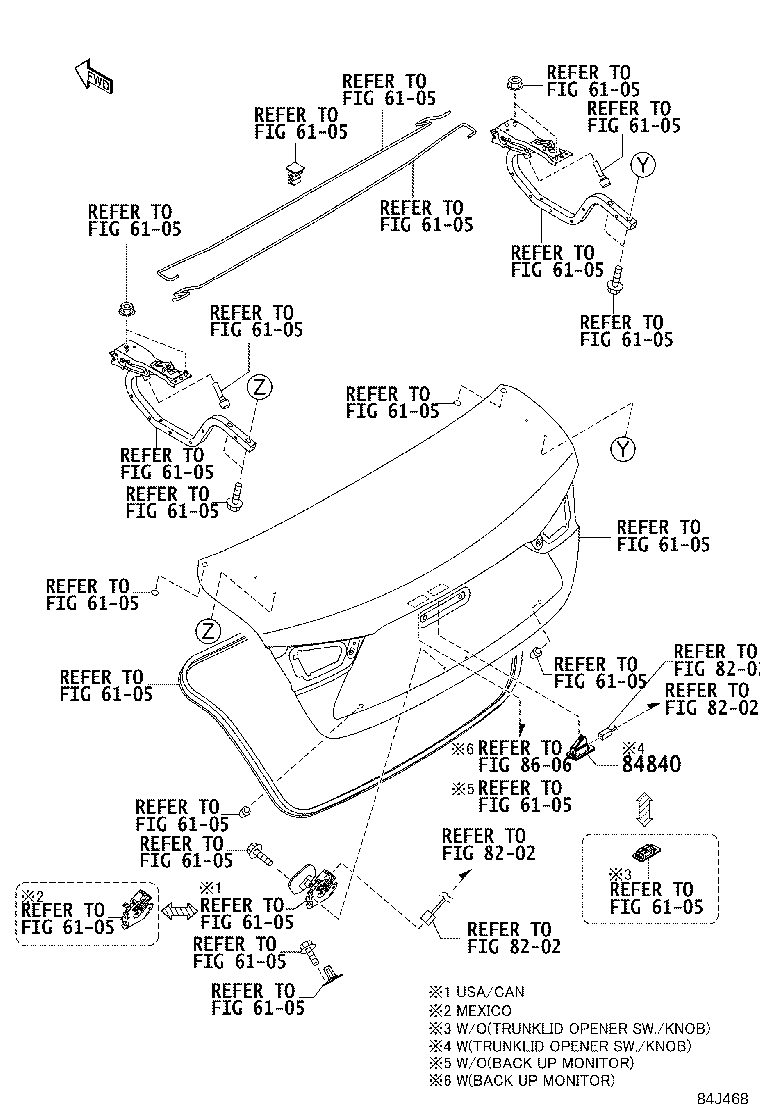

ILLUST NO.21 OF22(1808- )DDF4,5 ; (1808- )DADW1,DAEA1,DDF8,9..BASE,HI..MXC,USA

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE(3/3)

Part #	Description	Period	Qty	Price
Linked diagrams
6105
8202
8606

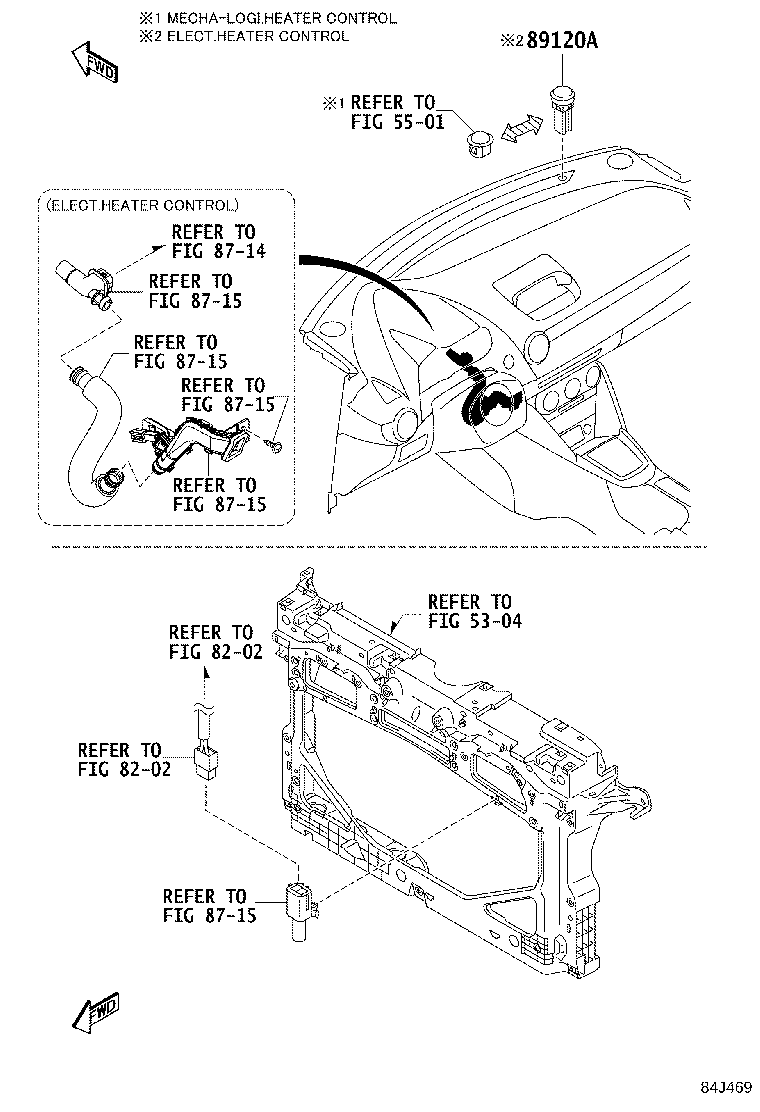

ILLUST NO.13 OF22(1808- )DDF4,5,9 ; (1808- )DAEA1,DAEC1,DDF8..BASE,HI..MXC,USA..A,D,E

Click highlighted areas on diagram

COWL(7/7)

Part #	Description	Period	Qty	Price
Linked diagrams
5304
5501
8202
8714
8715

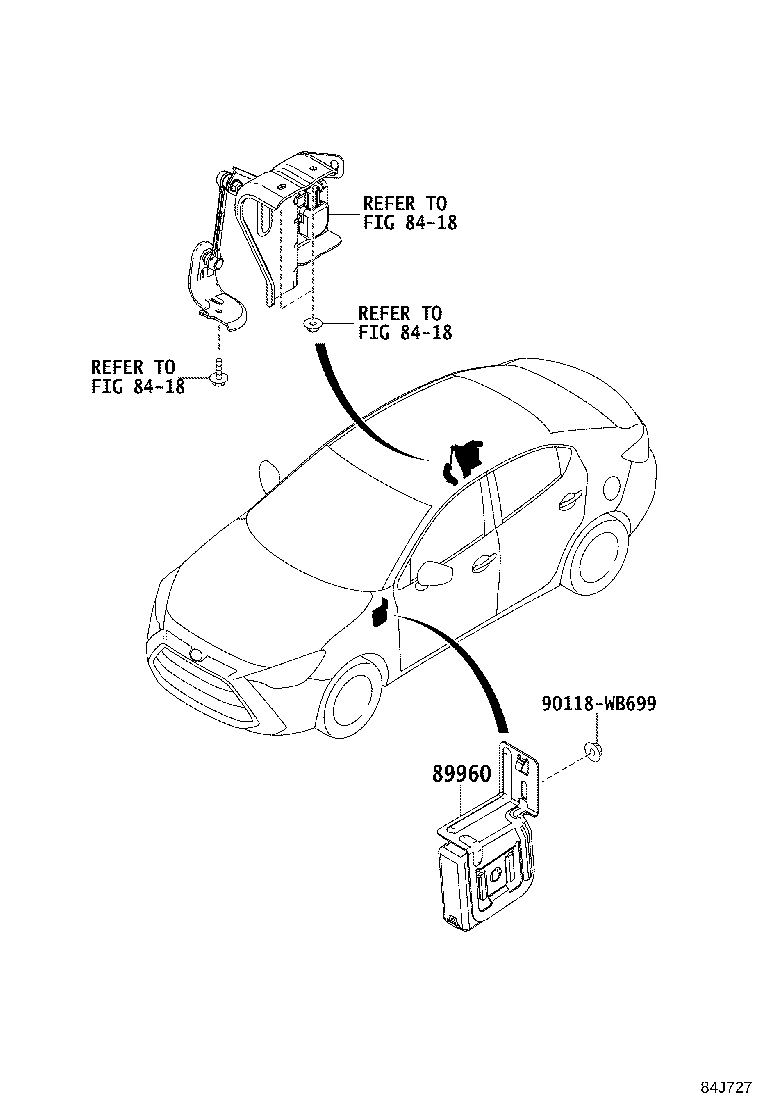

ILLUST NO.12 OF22(1808- )HI..CND,USA..C,D,E,G

Click highlighted areas on diagram

COWL(6/7)

Part #	Description	Period	Qty
89960 - COMPUTER ASSY, HEADLAMP LEVELING
81107-WB002	DAEA1,DAEC1,DDF5..HI..(CND,USA)..(C,D,E,G)	08/2018 - 12/2999	1
Common parts
90118-WB699
Linked diagrams
8418
