DDF5-NAB (2018)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2018 - Aug 2019
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1808- )DDF4..A ; (1808- )DDF9..B ; (1808-)DDF5..A,C,E,G ; (1908- )DAE

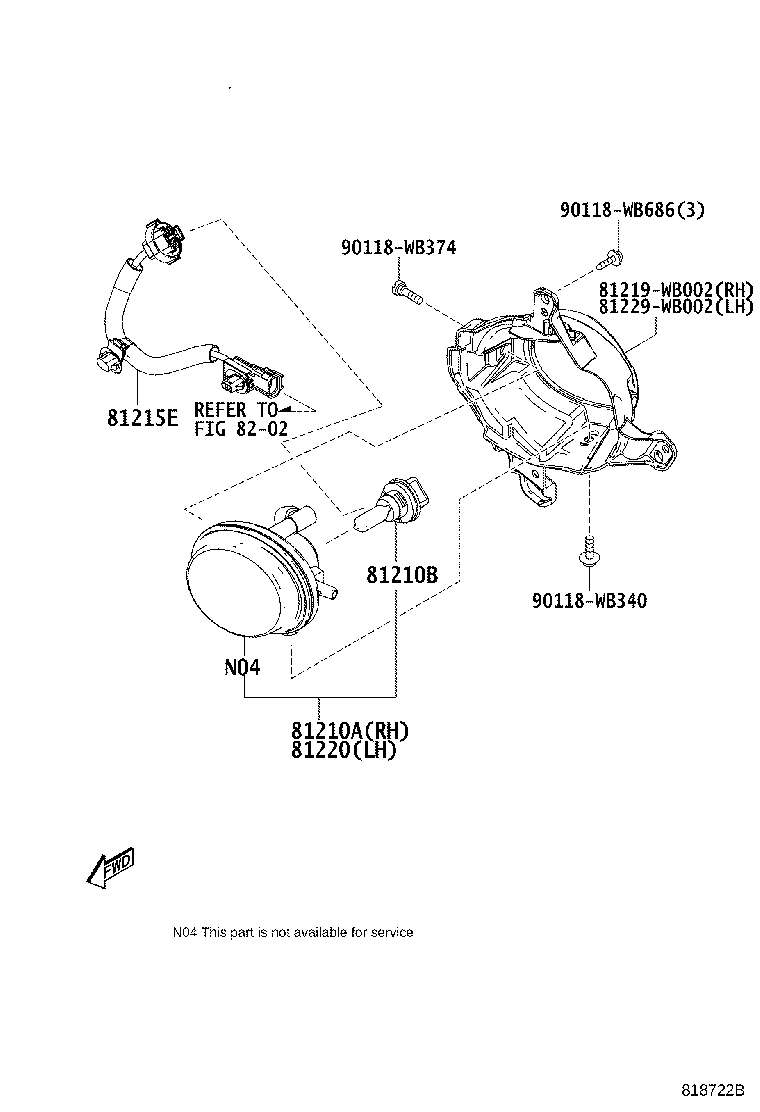

Click highlighted areas on diagram

diagram 81210A 81210B 81215E 81219WB002 81220 81229WB002 8202 90118WB340 90118WB374 90118WB686
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-WB001

DDF4..A;DDF5..A,C,E,G;DAEA1,DDF9..B,C,E;DADW1,DAEC1,DAEE1..(BASE,HI)..(A,C,D,F)

 1
81210B - BULB, FOG LAMP
90118-WB778

DDF4..A;DDF5..A,C,E,G;DAEA1,DDF9..B,C,E;DADW1,DAEC1,DAEE1..(BASE,HI)..(A,C,D,F)

12V 55W

 2
81215E - CORD, FOG LAMP
90118-WB818

DDF4..A;DDF5..A,C,E,G;DAEA1,DDF9..B,C,E;DADW1,DAEC1,DAEE1..(BASE,HI)..(A,C,D,F)

 2
81220 - LAMP ASSY, FOG, LH
81220-WB001

DDF4..A;DDF5..A,C,E,G;DAEA1,DDF9..B,C,E;DADW1,DAEC1,DAEE1..(BASE,HI)..(A,C,D,F)

 1
Common parts
81219-WB002
81229-WB002
90118-WB340
90118-WB374
90118-WB686
Linked diagrams
8202
