Toyota Scion ia/yaris r/ia DDF5 CONSOLE BOX & BRACKET

DDF5-NAB (2018)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2018 - Aug 2019

Engine P5 1500

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

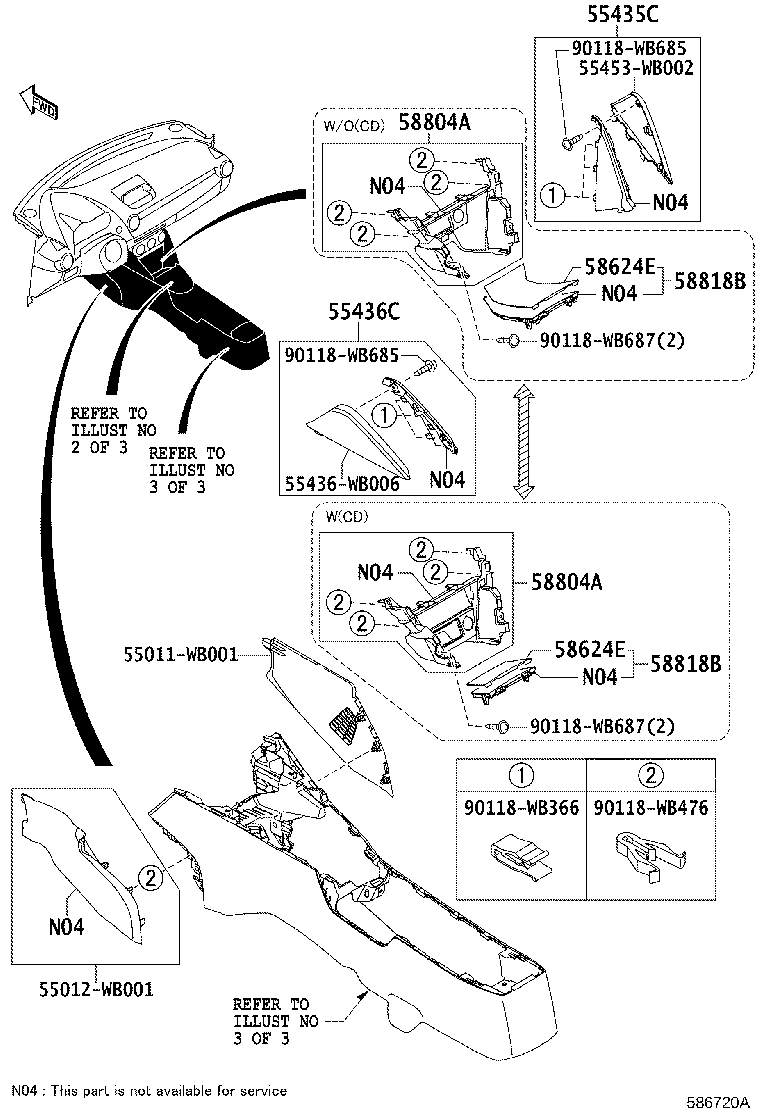

Click highlighted areas on diagram

Part #	Description	Period	Qty
55435C - PANEL, INSTRUMENT PANEL FINISH, END RH
55435-WB002	DDF5;DAEC1..C,E,F;DADW1,DAEA1,DAEB1,DAED1,DAEE1,DDF4,8,9..A,B,C,D BLACK,TRIM10,20	08/2018 - 12/2999	1
55436C - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-WB002	DDF5;DAEC1..C,E,F;DADW1,DAEA1,DAEB1,DAED1,DAEE1,DDF4,8,9..A,B,C,D BLACK,TRIM10,20	08/2018 - 12/2999	1
Common parts
55011-WB001
55012-WB001
55436-WB006
55453-WB002
90118-WB366
90118-WB476
90118-WB685
90118-WB687

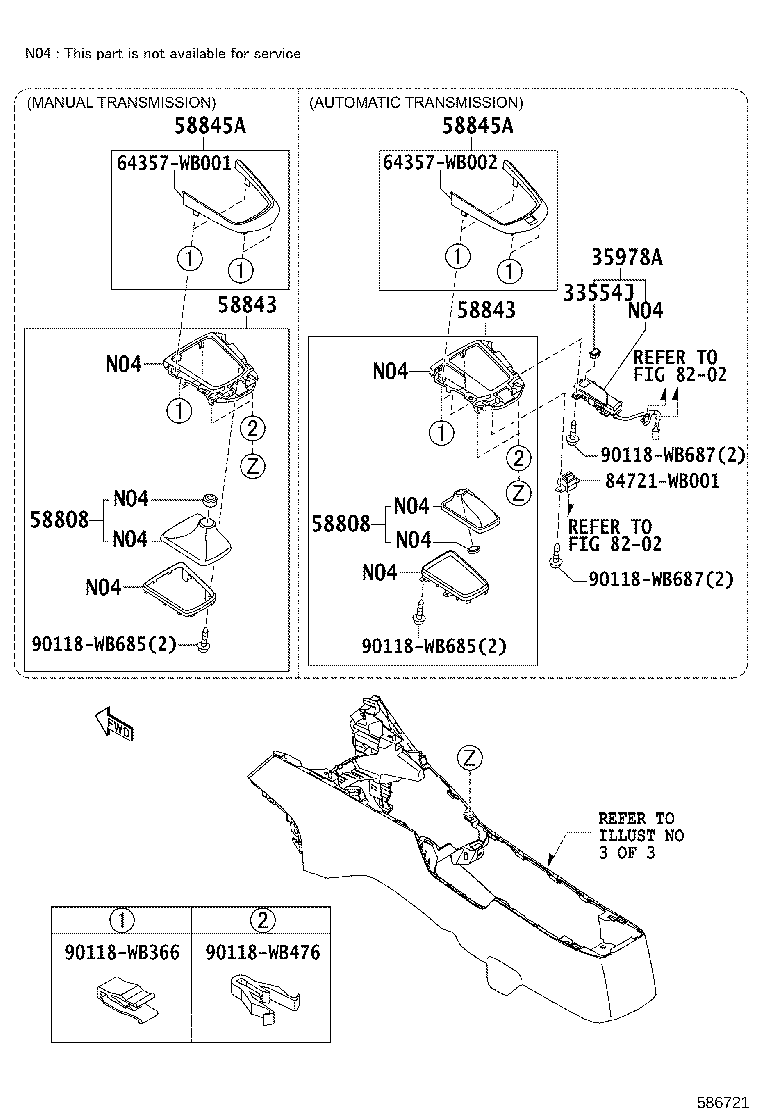

Click highlighted areas on diagram

Part #	Description	Period	Qty
33554J - COVER, SHIFT LOCK RELEASE BUTTON
33554-WB001	DAEA1,DAEC1,DAEE1,DB7P,DD1D,F5,F9,DM0T,0W	06/2015 - 12/2999	1
58843 - BEZEL, SHIFTING HOLE
58843-WB008	DAEA1,DDF5..ENTRY BLACK,TRIM10,20	08/2018 - 12/2999	1
58843 - BEZEL, SHIFTING HOLE
58843-WB008	DAEA1,DDF5..ENTRY BLACK,TRIM10,20	08/2018 - 12/2999	1
58845A - FRAME, CONSOLE, NO.1
58845-WB002	DDF5..B,D,F,G;DAEC1,DAEE1..B,E,F;DAEA1,DAEB1,DDF9..(BASE,ENTRY)..(A,C,D)	08/2018 - 12/2999	1
58845-WB004	DAEE1,DDF5..A,C,E;DAEA1,DAEC1,DDF9..(BASE,HI)..(MXC,PUE,USA)..(B,C,D,E)	08/2018 - 12/2999	1
58845A - FRAME, CONSOLE, NO.1
58845-WB002	DDF5..B,D,F,G;DAEC1,DAEE1..B,E,F;DAEA1,DAEB1,DDF9..(BASE,ENTRY)..(A,C,D)	08/2018 - 12/2999	1
58845-WB004	DAEE1,DDF5..A,C,E;DAEA1,DAEC1,DDF9..(BASE,HI)..(MXC,PUE,USA)..(B,C,D,E)	08/2018 - 12/2999	1
Common parts
64357-WB001
64357-WB002
84721-WB001
90118-WB366
90118-WB476
90118-WB685
90118-WB687
Linked diagrams
8202
