DDF5-NAA (2018)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2018 - Aug 2019
Engine P5 1500
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

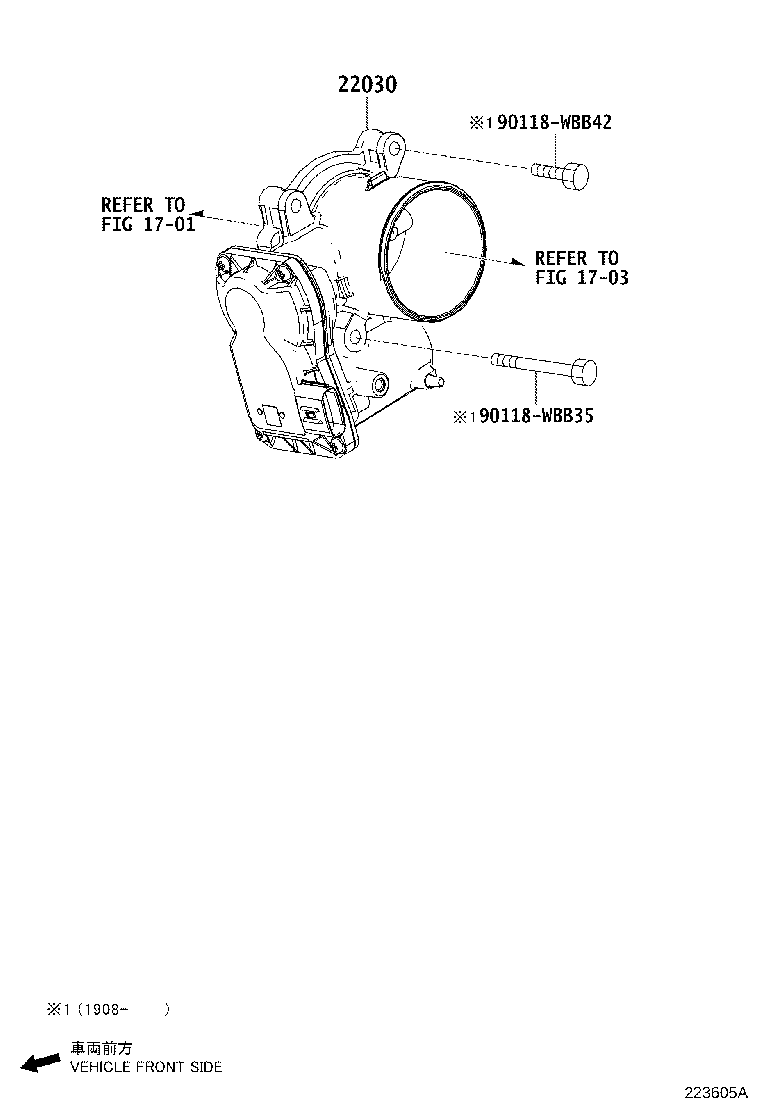

ILLUST NO. 3 OF 3(1808- )

Click highlighted areas on diagram

diagram 1701 1703 22030 90118WBB35 90118WBB42
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-WB002

P5..DDF#

 1
22030-WB003

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#

 1
Common parts
90118-WBB35
90118-WBB42
Linked diagrams
1701
1703

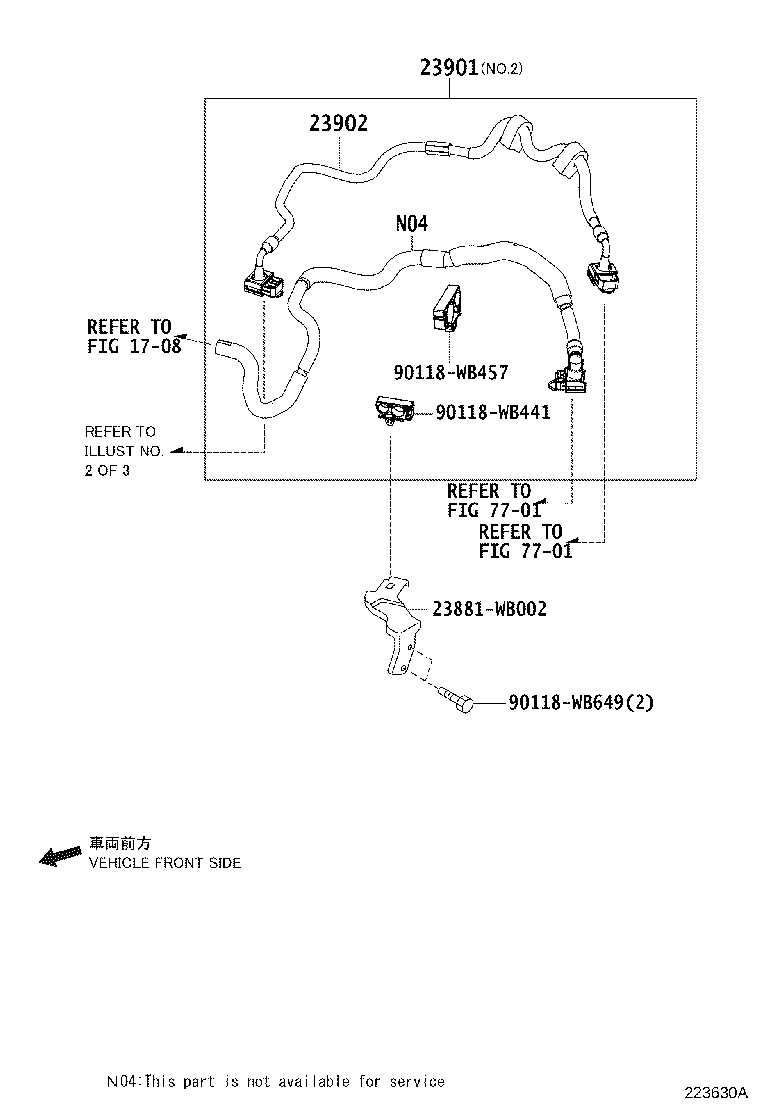

ILLUST NO. 1 OF 3(1808- )P5..DADW1,DAEA1,DAEB1,DAEC1,DDF4,5

Click highlighted areas on diagram

diagram 1708 23881WB002 23901 23902 7701 7701 90118WB441 90118WB457 90118WB649
Part # Description Qty Price
23901 - TUBE SUB-ASSY, FUEL
23901-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

NO.1

 1
23902 - TUBE SUB-ASSY, FUEL
23902-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DDF4,5

 1
Common parts
23881-WB002
90118-WB441
90118-WB457
90118-WB649
Linked diagrams
1708
7701
