DDF4-NAB (2018)

Toyota Scion Ia/Yaris R/Ia

Production Aug 2018 - Aug 2019
Engine P5 1500
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1808- )

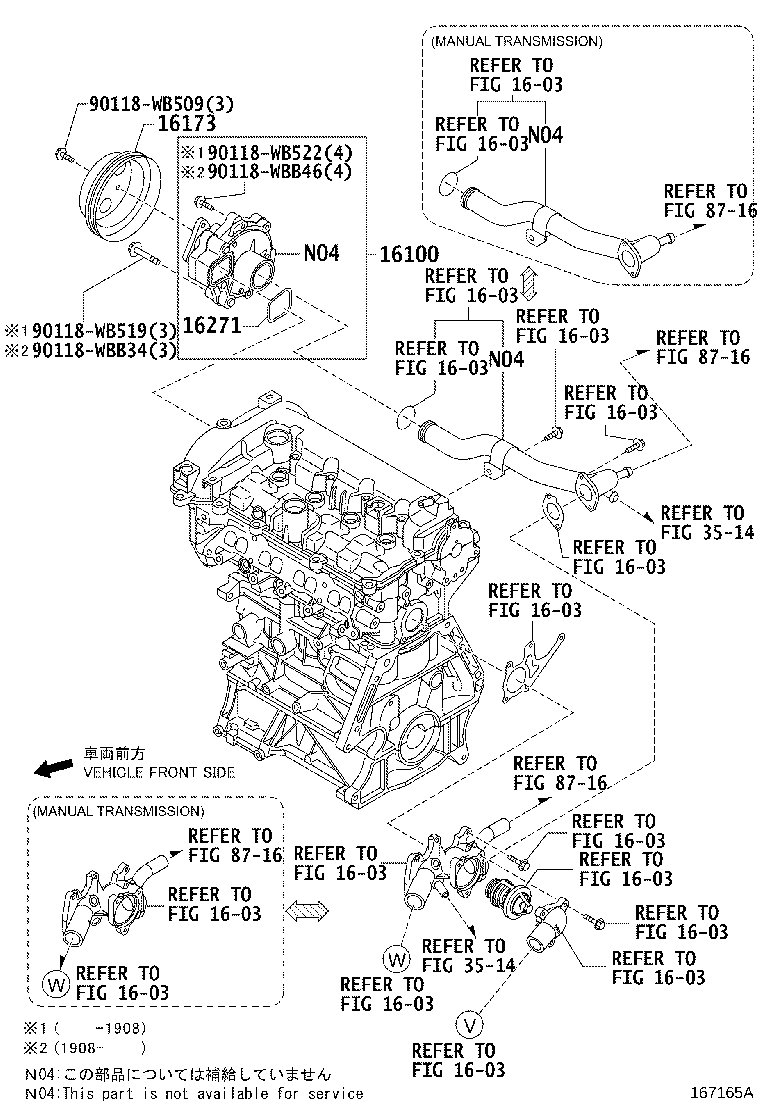

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 16100 16173 16271 3514 3514 8716 8716 8716 8716 90118WB509 90118WB519 90118WB522 90118WBB34 90118WBB46
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
16173 - PULLEY, WATER PUMP
16173-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
16271 - GASKET, WATER PUMP
16271-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
Common parts
90118-WB509
90118-WB519
90118-WB522
90118-WBB34
90118-WBB46
Linked diagrams
1603
3514
8716
