DD1B-NAF (2016)
Toyota Scion Ia/Yaris R/Ia

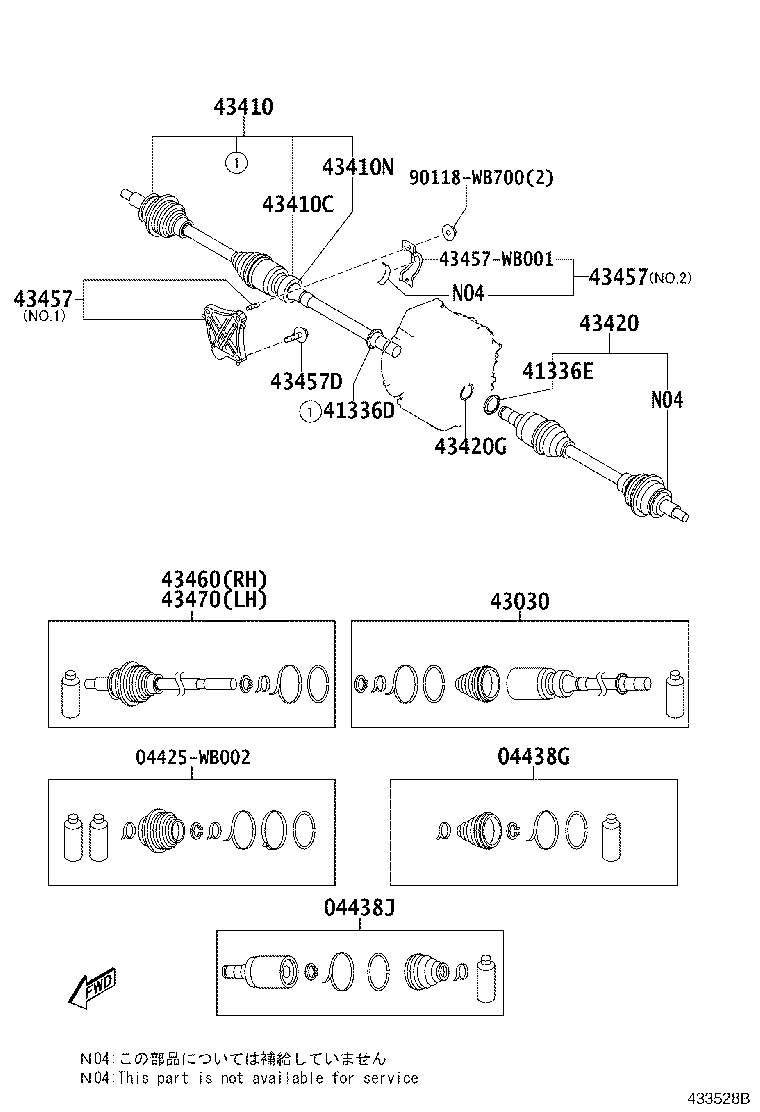

ILLUST NO. 1 OF 2(1506-1703)DD1B,1C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-WB002 |
DD1B |
2 | ||
| 04437-WB004 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
2 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 43403-WB004 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43403-WB002 |
DD1B |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-WB001 |
DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-WB004 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43030-WB002 |
DD1B |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-WB006 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90118-WB297 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90118-WB671 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-WB006 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43044-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.2 |
1 | ||
| 43496-WB001 |
DB7P,DD1B,F#,DM0S,0T NO.1 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43044-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.2 |
1 | ||
| 43496-WB001 |
DB7P,DD1B,F#,DM0S,0T NO.1 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90118-WB586 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-WB002 |
DD1B |
1 | ||
| 43460-WB004 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-WB001 |
DD1B |
1 | ||
| Common parts | ||||
| 04425-WB002 | ||||
| 43457-WB001 | ||||
| 90118-WB700 | ||||

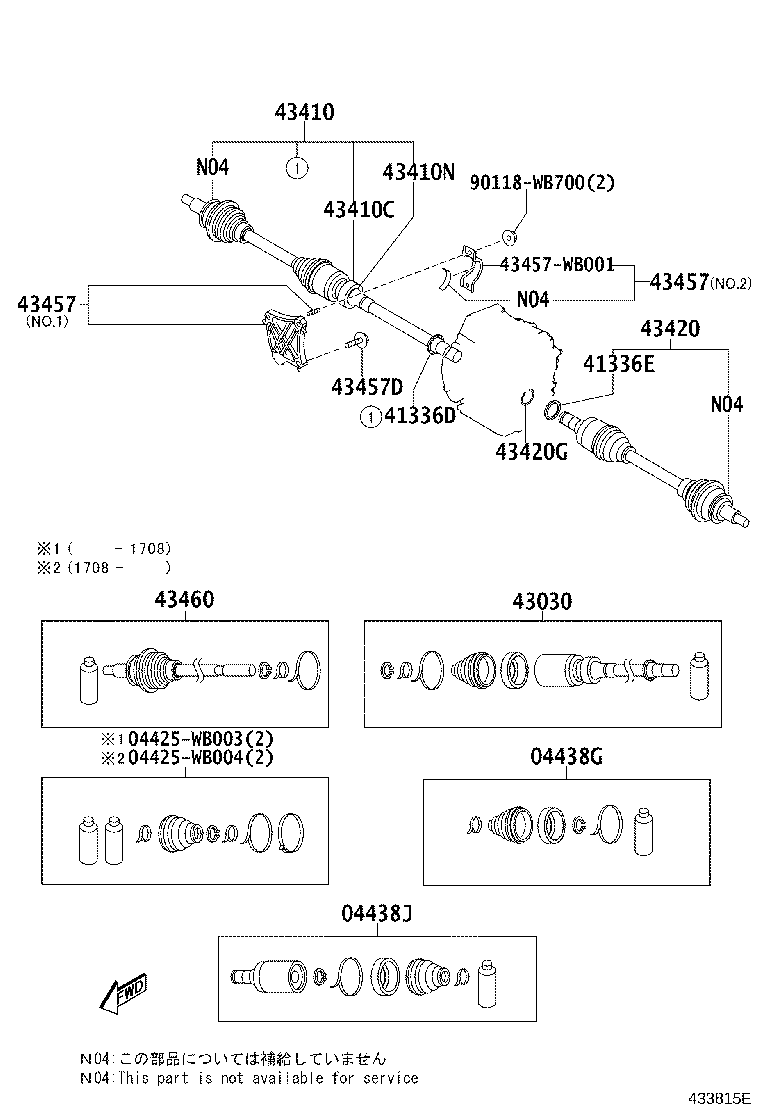

ILLUST NO. 1 OF 2(1703- )DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-WB002 |
DD1B |
2 | ||
| 04437-WB004 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
2 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 43403-WB004 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43403-WB002 |
DD1B |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-WB001 |
DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-WB004 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43030-WB002 |
DD1B |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-WB006 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90118-WB297 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90118-WB671 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-WB006 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43044-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.2 |
1 | ||
| 43496-WB001 |
DB7P,DD1B,F#,DM0S,0T NO.1 |
1 | ||
| 43457 - BRACKET, DRIVE SHAFT BEARING | ||||
| 43044-WB001 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T NO.2 |
1 | ||
| 43496-WB001 |
DB7P,DD1B,F#,DM0S,0T NO.1 |
1 | ||
| 43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) | ||||
| 90118-WB586 |
DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-WB002 |
DD1B |
1 | ||
| 43460-WB004 |
DADW1,DAEB1,DAED1,DD1B,1C,F4,F8,DM0S,0V |
1 | ||
| Common parts | ||||
| 04425-WB003 | ||||
| 04425-WB004 | ||||
| 43457-WB001 | ||||
| 90118-WB700 | ||||
