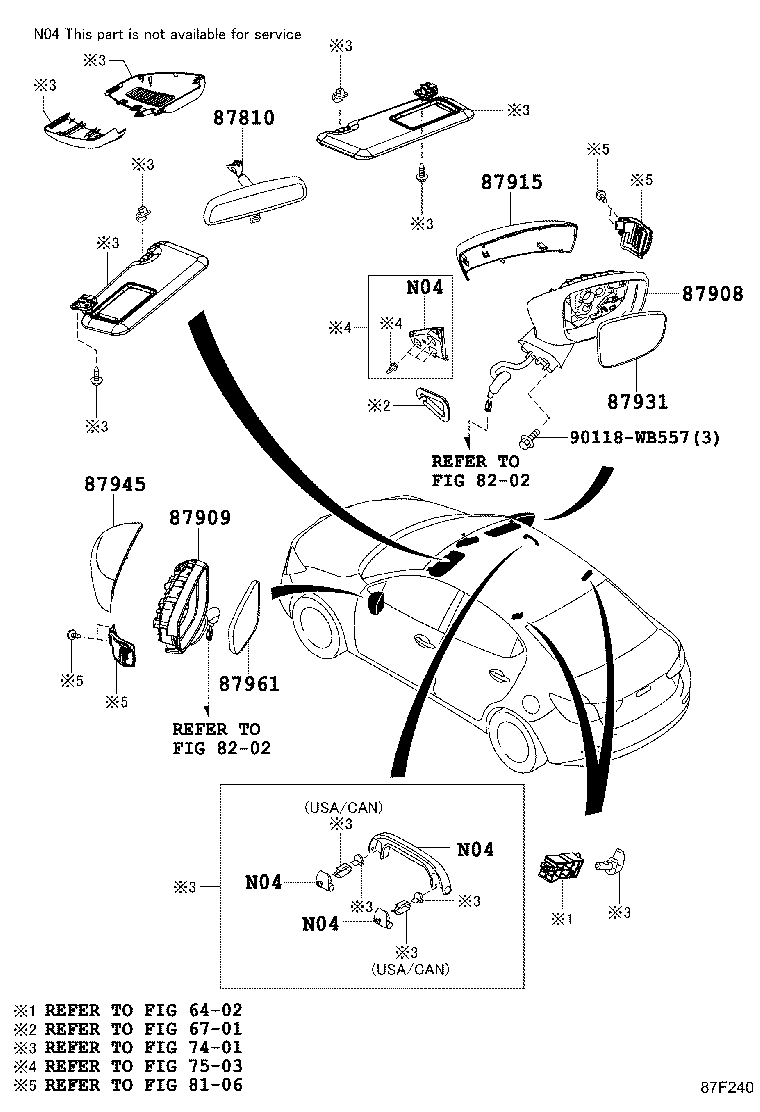

Toyota Scion ia/yaris r/ia DD1B MIRROR

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-WB001	DDF5;DD1B,DM0S,0T..CND;DADW1,DAEA1,DAEB1,DAEC1,DB7P,DDF4..A,B,C,D,E,F,H,J	08/2016 - 12/2999	1
87908 - ACTUATOR ASSY, OUTER MIRROR, RH
87908-WB002	DB7P,DD1B..CND	06/2015 - 01/2017	1
87909 - ACTUATOR ASSY, OUTER MIRROR, LH
87909-WB002	DB7P,DD1B..CND	06/2015 - 01/2017	1
87915 - COVER, OUTER MIRROR, RH
87915-WB002	DB7P,DD1B,DM0S,0T DEEP CRYSTAL BLUE MC,42M	06/2015 - 08/2018	1
87915-WB004	DB7P,DD1B,DM0S,0T ARCTIC WHITE CLE,A4D	06/2015 - 08/2018	1
87915-WB003	DB7P,DD1B,DM0S,0T METEOR GRAY MC,42A	06/2015 - 08/2018	1
87915-WB007	DB7P,DD1B,DM0S,0T ZEAL RED MC,41G	06/2015 - 08/2018	1
87915-WB006	DB7P,DD1B,DM0S,0T JET BLACK MC,41W	06/2015 - 08/2018	1
87915-WB001	DB7P,DD1B,DM0S,0T DYNAMIC BLUE MC,44J	06/2015 - 08/2018	1
87931 - OUTER MIRROR, RH
87931-WB002	DB7P,DD1B,DM0S,0T..CND	06/2015 - 08/2018	1
87945 - COVER, OUTER MIRROR, LH
87945-WB007	DB7P,DD1B,DM0S,0T ZEAL RED MC,41G	06/2015 - 08/2018	1
87945-WB006	DB7P,DD1B,DM0S,0T JET BLACK MC,41W	06/2015 - 08/2018	1
87945-WB003	DB7P,DD1B,DM0S,0T METEOR GRAY MC,42A	06/2015 - 08/2018	1
87945-WB001	DB7P,DD1B,DM0S,0T DYNAMIC BLUE MC,44J	06/2015 - 08/2018	1
87945-WB002	DB7P,DD1B,DM0S,0T DEEP CRYSTAL BLUE MC,42M	06/2015 - 08/2018	1
87945-WB004	DB7P,DD1B,DM0S,0T ARCTIC WHITE CLE,A4D	06/2015 - 08/2018	1
87961 - MIRROR OUTER, LH
87961-WB002	DB7P,DD1B,DM0S,0T..CND	06/2015 - 08/2018	1
Common parts
90118-WB557
Linked diagrams
6402
6701
7401
7503
8106
8202

DD1B-NAE (2016)
