DD1B-NAC (2015)

Toyota Scion Ia/Yaris R/Ia

Production Jun 2015 - Aug 2016
Engine P5 1500
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

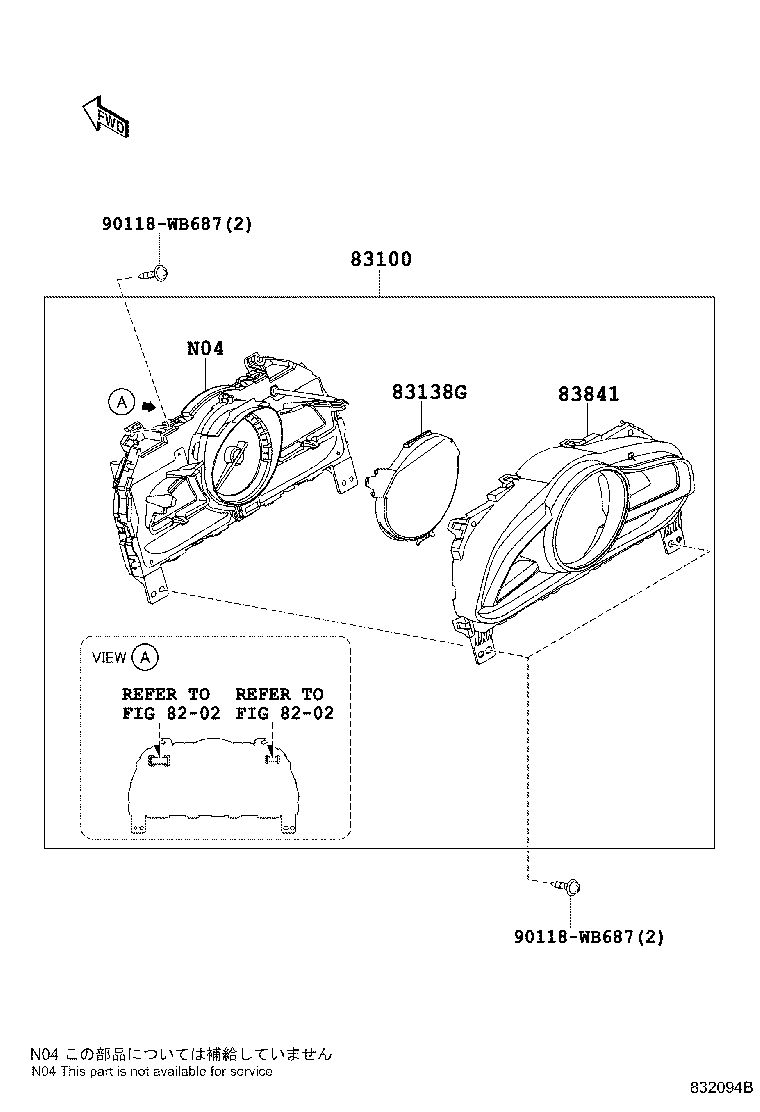

Click highlighted areas on diagram

diagram 8202 8202 83100 83138G 83841 90118WB687 90118WB687
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-WB018

DB7P,DD1B..BASE..PUE

 1
83138G - GLASS, COMBINATION METER
83852-WB001

DB7P,DD1B,DM0S,0T

 1
83852-WB001

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
83841 - CASE, TELLTALE LAMP
83841-WB001

DD1B,DM0T..B,C,E,F;DB7P,DM0S..(CND,PUE)..(B,C,D,E,H,J,L)

 1
Common parts
90118-WB687
Linked diagrams
8202
