DD1B-NAC (2015)

Toyota Scion Ia/Yaris R/Ia

Production Jun 2015 - Aug 2016
Engine P5 1500
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

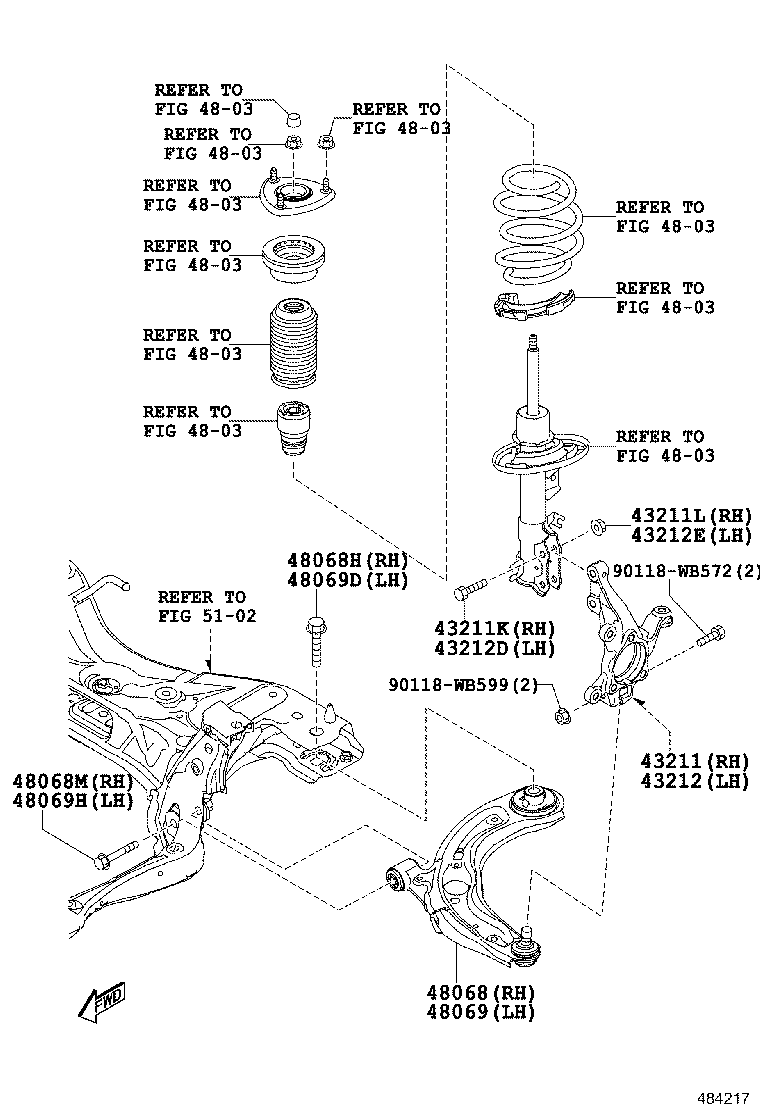

ILLUST NO. 1 OF 2(1506- )

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 4803 4803 4803 4803 4803 4803 4803 4803 4803 4803 48068 48068H 48068M 48069 48069D 48069H 5102 90118WB572 90118WB599
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
43211-WB002

DB7P,DD1B,DM0S,0T

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90118-WB548

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90118-WB606

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T

 2
43212 - KNUCKLE, STEERING, LH
43212-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
43212-WB002

DB7P,DD1B,DM0S,0T

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90118-WB548

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90118-WB606

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-WB001

DB7P,DD1B

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90118-WB539

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90118-WB552

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-WB001

DB7P,DD1B

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90118-WB539

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90118-WB552

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,DM0S,0T

 1
Common parts
90118-WB572
90118-WB599
Linked diagrams
4803
5102

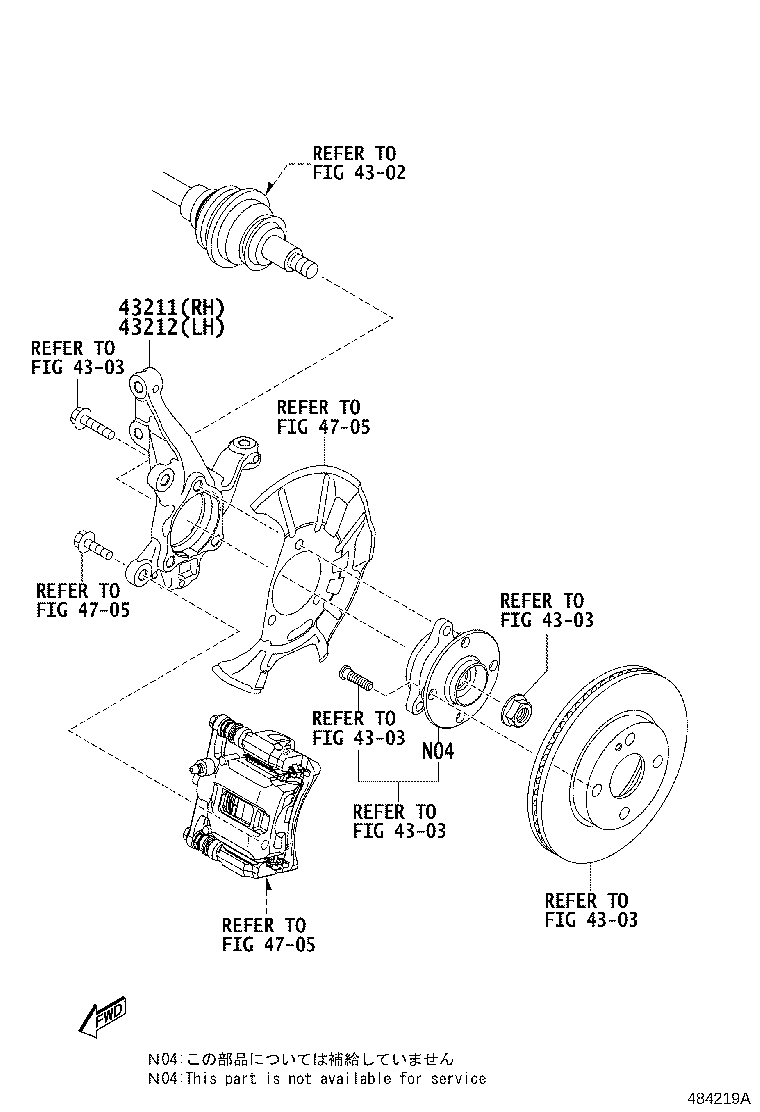

ILLUST NO. 2 OF 2(1506- )

Click highlighted areas on diagram

diagram 4302 4303 4303 4303 4303 4303 43211 43212 4705 4705 4705
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
43211-WB002

DB7P,DD1B,DM0S,0T

 1
43212 - KNUCKLE, STEERING, LH
43212-WB002

DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W

 1
43212-WB002

DB7P,DD1B,DM0S,0T

 1
Linked diagrams
4302
4303
4705
