DD1B-NAC (2015)

Toyota Scion Ia/Yaris R/Ia

Production Jun 2015 - Aug 2016
Engine P5 1500
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1908)

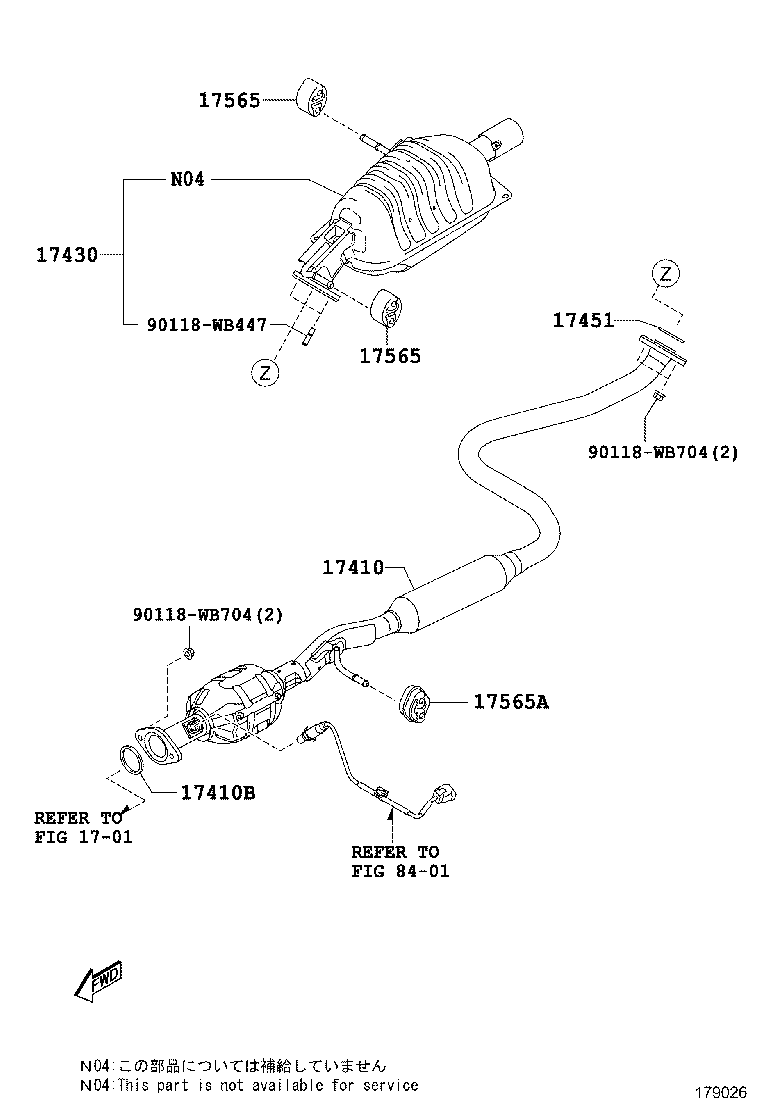

Click highlighted areas on diagram

diagram 1701 17410 17410B 17430 17451 17565 17565 17565A 8401 90118WB447 90118WB704 90118WB704
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-WB001

P5..DB7P,DD1B

 1
17410-WB002

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
17410B - GASKET, EXHAUST PIPE
17451-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-WB003

P5..DB7P,DD1B

 1
17430-WB004

P5..DADW1,DAEA1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#

 1
17430-WB002

P5..DB7P,DD1B

 1
17451 - GASKET, EXHAUST PIPE
17451-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-WB001

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-WB003

P5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T

 1
Common parts
90118-WB447
90118-WB704
Linked diagrams
1701
8401
